HT Italia PQA820 Three-phase Power Quality Analyzer and Energy Logger

Name: HT Italia PQA820 Three-phase Power Quality Analyzer and Energy Logger
Brand: HT ITALIA
SKU: PQA820
Availability: InStock

$3,600.00 .( $3,960.00 inc. GST )

Product successfully added to the Quote List

For all your equipment calibration needs, visit our MyCalibration website.

Free Delivery on orders over $1000
Shipping time may vary for certain products*

Click here to Make an Enquiry

Product Enquiry

If you would like more information regarding this product, simply email us here.

HT PQA820 is a three-phase power quality analyzer and energy logger performing an easy and wide analysis of the most significant parameters of , it can be interfaced to smart phones, tablets and PDAs (iOS and/or Android) meeting the requests of the most demanding professionals. All the electrical parameters can be displayed in both numerical and graphical mode, by waveforms, histograms and phasors. The vector diagram shows the phase angle between any voltage and the related current, revealing the inductive or capacitive nature of the loads connected.
The large built-in memory allows to log up to 383 parameters, granting a recording lasting more than one month with an integration period of 10 minutes.
HT PQA820 three-phase power quality analyzer records all parameters by default so avoiding any failure. The user will never miss recording the parameters he needs, since PQA820 records everything while selecting one of the three predefined settings (single phase, 3-phase without neutral, 3-phase with neutral).

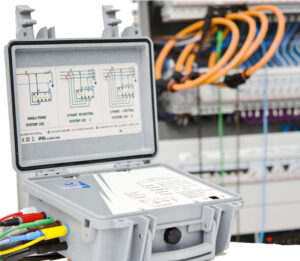

PQA820 three-phase energy logger is powered by an internal rechargeable Li-Ion battery with a built-in user-selectable L-N or L-L power supply. The Wi-Fi and the USB interfaces grant connection to smart phones, tablets, PDAs and PCs for instrument setting, recording start and stop, data downloading, and data analysis. Its IP65 waterproof hard carrying case allows PQA820 to work outdoors under critical environmental conditions.

Authorised Australian Distributor

[av_image src=’https://mymeter.com.au/wp-content/uploads/2015/10/Test-2-300×67.jpg’ attachment=’616′ attachment_size=’medium’ align=’center’ animation=’no-animation’ link=” target=” styling=” caption=” font_size=” appearance=”][/av_image]

[av_image src=’https://mymeter.com.au/wp-content/uploads/2015/10/Publication-5.jpg’ attachment=’635′ attachment_size=’full’ align=’center’ animation=’no-animation’ link=’manually,https://youtu.be/BBMAce772FU’ target=” styling=” caption=” font_size=” appearance=”][/av_image] Video Tutorial

[av_image src=’https://mymeter.com.au/wp-content/uploads/2015/10/[email protected]’ attachment=’636′ attachment_size=’full’ align=’center’ animation=’no-animation’ link=’manually,https://youtu.be/Kqhk_dEDXqw’ target=” styling=” caption=” font_size=” appearance=”][/av_image] How to use the HTAnalysis App

[av_image src=’https://mymeter.com.au/wp-content/uploads/2015/10/standard_adobe_logo_-_2-color_red_and_black1.png’ attachment=’654′ attachment_size=’full’ align=’left’ animation=’no-animation’ link=’manually,http://en.ht-instruments.com/uploads/36/da/36da1e7188b10b6856284ebc1e007d3a/pdf_PQA820_EN1-05.pdf’ target=” styling=” caption=” font_size=” appearance=”][/av_image]

DATA SHEET

SKU: PQA820 Categories: HT ITALIA, Power Analyser Tag: HT Italia

HT Italia PQA820 Three-phase Power Quality Analyzer Functions:

DC voltage
TRMS voltage with 4 inputs for line(s) and neutral (if any)
DC current
TRMS current with 4 inputs for line(s) and neutral (if any)
DC power
Active, reactive and apparent power
Active, reactive and apparent energy
Power factor and cos-phi
Frequency
Up to 383 parameters to be recorded at once
Integration period selectable from 5 seconds to 60 minutes
Voltage and current harmonic analysis up to the 49th order
Voltage anomalies (sags, swells) with 10ms resolution
Numerical data analysis (DMM function)
Graphical display of voltage and current (scope)
Harmonic histogram
Vectorial diagram of voltages and currents
Voltage unbalance
Predefined recording settings
Built-in memory for data logging
Wi-Fi and USB interfaces
Android/iOS/Windows software
Rechargeable Li-Ion battery with built-in power supply
Waterproof IP65 hard carrying case

Ht Italia PQA820 is a power quality analyzer performing an easy and wide analysis of the most significant parameters of the electrical system. Thanks to an innovative project, the instrument can be interfaced to smart phones, tablets and PDAs (iOS and/or Android) meeting the requests of the most demanding professionals. The PQA820 is self powered from it’s voltage connections, so the user has only to connect it, and leave it recording. There is no need to even open up a switchboard to view the information as the operator has only to use the Wi-Fi interface to connect to a mobile device, and open the free HT Analysis app.

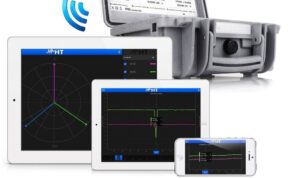

All the electrical parameters can be displayed in both numerical and graphical mode, by waveforms, histograms and phasors. The vector diagram shows the phase angle between any voltage and the related current, revealing the inductive or capacitive nature of the loads connected.

The large built-in memory allows the user to log up to 383 parameters, granting a recording lasting more than one month with an integration period of 10 minutes.

HT Italia PQA820 Three-phase Power Quality Analyzer records all parameters by default avoiding any potential mistakes. The user will never miss recording the parameters he needs, since PQA820 records everything while selecting one of the three predefined settings (single phase, 3-phase without neutral, 3-phase with neutral).

HT Italia PQA820 Three-phase Power Quality Analyzer is powered by an internal rechargeable Li-Ion battery with a built-in user-selectable L-N or L-L power supply, which allows the unit to be powered from it’s voltage connections. The Wi-Fi and the USB interfaces allow connection to smart phones, tablets, PDAs and PCs for instrument setting, recording start and stop, data downloading, and data analysis.

It’s IP65 waterproof hard carrying case allows PQA820 to work outdoors under critical environmental conditions.
