    JUPITER THE MULTIFUNCTION MULTIMETER FOR ELECTRICAL INSTALLATION SAFETY TESTING

    HT Instruments revolutionises the portable instrument market by introducing the new JUPITER.

    The first multimeter who incorporates the functions available only in standard electrical safety testers and professional High-end multimeters.

    • Test tripping time of RCDs type A and AC up to 300mA*.
    • Tripping current of RCDs type AC up to 30mA.
    • Non-trip earth ground resistance.
    • Line-to-Neutral, Line-to-Line and Line-to-Ground impedance (resolution 0.1Ohm) with prospective short-circuit/fault current calculation.
    • Current up to 3000A by means of clamp-on or flexible external transducer. ›
    • Dynamic inrush current of motors and loads through the DIRC function allowing time base selection. ›
    • Leakage current by means of the clamp-on transducer HT96U.
    • Voltage and current harmonics with THD% calculation and function to the 25th Harmonic (Higher Harmonic Ordering) showing highest harmonic values first.
    • One-lead phase sequence detection
    • JUPITER is provided with ISO9000 calibration certificate as standard.

    pdf_sml    HT Jupiter Datasheet

    pdf_sml    HT Jupiter Brochure

    pdf_sml    HT Jupiter User Manual



    As professional multimeter HT Instruments JUPITER Multifunction Multimeter provides:

    Autorange measurements with automatic AC/DC detection
    LoZ low impedance voltage input to eliminate ghost voltage readings (caused by the capacitive coupling among active conductors close each other)
    One-lead phase sequence detection

    JUPITER is provided with ISO9000 calibration certificate as standard.

    Jupiter Banner 3

    HT Instruments JUPITER Multifunction Multimeter Features:

    • Autorange measurements with automatic AC/DC detection.
    • DC, AC TRMS, AC+DC TRMS voltage up to 690V.
    • Tripping time of RCDs type A and AC up to 300mA*.
    • Tripping current of RCDs type AC up to 30mA. ›
    • Non-trip earth ground resistance. ›
    • Line-to-Neutral, Line-to-Line and Line-to-Ground impedance (resolution 0.1Ohm) with prospective short-circuit/fault current calculation.
    • Current up to 3000A by means of clamp-on or flexible external transducer.
    • Dynamic inrush current of motors and loads through the DIRC function allowing time base selection.
    • Leakage current by means of the clamp-on transducer HT96U.
    • Voltage and current harmonics with THD% calculation and function to the 25th Harmonic showing highest harmonic values first.
    • One-lead phase sequence detection.
    • Low impedance voltage input to eliminate ghost voltage readings.
    • DC, AC TRMS, AC+DC TRMS current by means of external transducer.
    • Frequency of voltage and/or current.
    • Resistance and continuity with buzzer.
    • MIN/MAX/PEAK/HOLD functions.
    • 6000 count Display

    Jupiter Banner 1

    HT Instruments JUPITER Multifunction Multimeter Functions:

    TRMS
    AC/DC voltage 690V / AC+DC
    LoZ Input
    AC/DC current AC+DC with external clamp transducer
    Frequency
    Resistance and continuity test with buzzer
    RCD tripping time 30mA, 100mA, 300mA A/AC
    RCD trip current measurement RCD A/AC 30mA
    Leakage current (with optional accessory HT96U)
    Non-trip earth resistance
    Voltage and current harmonics up to the 25th and THD%
    Loop impedance P-N, P-P, P-PE and calculation of prospective short-circuit current
    Electric motor starting current (INRUSH)
    Auto x1/2, x1, x2, x5, 0°, 180°
    Phase sequence
    Out come OK/NOT OK According with IEC60364-6
    Backlit LCD display
    Measurement category CAT IV 600V
    Measuring counts 6000
    MAX/MIN/HOLD
    Bargraph

    HT Instruments JUPITER Standard Accessories:

    C2033AU Three wire cable Red, Black, Green with Australian plug
    4324-2 Pair of test tips Red/Black 2/4mm straight banana
    YABAT0001HT0 Alkaline battery 1.5V, type AAA, IEC LR03, 4 pcs
    YABRS0002HT0 Carrying bag
    YAMUM0066HT0 User manual on CD-ROM
    YAMUM0065HT0 Quick reference guide
    Calibration certificate ISO9000.[/col]

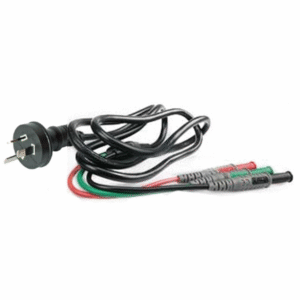

    C2033AU Three wire cable Red, Black, Green with Australian plug
    HT Instruments JUPITER Optional Accessories:[
    F3000U AC flexible clamp with 30/300/3000A full scales
    HT96U* AC current clamp with 1/100/1000A full scales
    HT97U* AC current clamp with 10/100/1000A AC full scales
    HT98U* DC current clamp with 1000A full scale
    HT4006 AC/DC current clamp with 40/400A full scales
    NOCANBA Hypertac-to-banana adapter* Adapter NOCANBA required.

    F3000U & HT4006 Clamps



    Weight 600 kg
