JUPITER THE MULTIFUNCTION MULTIMETER FOR ELECTRICAL INSTALLATION SAFETY TESTING

HT Instruments revolutionises the portable instrument market by introducing the new JUPITER.

The first multimeter who incorporates the functions available only in standard electrical safety testers and professional High-end multimeters.

Test tripping time of RCDs type A and AC up to 300mA*.
Tripping current of RCDs type AC up to 30mA.
Non-trip earth ground resistance.
Line-to-Neutral, Line-to-Line and Line-to-Ground impedance (resolution 0.1Ohm) with prospective short-circuit/fault current calculation.
Current up to 3000A by means of clamp-on or flexible external transducer. ›
Dynamic inrush current of motors and loads through the DIRC function allowing time base selection. ›
Leakage current by means of the clamp-on transducer HT96U.
Voltage and current harmonics with THD% calculation and function to the 25th Harmonic (Higher Harmonic Ordering) showing highest harmonic values first.
One-lead phase sequence detection
JUPITER is provided with ISO9000 calibration certificate as standard.

HT Jupiter User Manual

SKU: JUPITER Categories: $600 and above, Advanced Calibration - $100, CAT IV Multimeters, HT ITALIA, Installation, Loop/PSC Tester, Phase Rotation, RCD Tester Tag: HT Italia

As professional multimeter HT Instruments JUPITER Multifunction Multimeter provides:

Autorange measurements with automatic AC/DC detection
LoZ low impedance voltage input to eliminate ghost voltage readings (caused by the capacitive coupling among active conductors close each other)
One-lead phase sequence detection

JUPITER is provided with ISO9000 calibration certificate as standard.

HT Instruments JUPITER Multifunction Multimeter Features:

Autorange measurements with automatic AC/DC detection.
DC, AC TRMS, AC+DC TRMS voltage up to 690V.
Tripping time of RCDs type A and AC up to 300mA*.
Tripping current of RCDs type AC up to 30mA. ›
Non-trip earth ground resistance. ›
Line-to-Neutral, Line-to-Line and Line-to-Ground impedance (resolution 0.1Ohm) with prospective short-circuit/fault current calculation.
Current up to 3000A by means of clamp-on or flexible external transducer.
Dynamic inrush current of motors and loads through the DIRC function allowing time base selection.
Leakage current by means of the clamp-on transducer HT96U.
Voltage and current harmonics with THD% calculation and function to the 25th Harmonic showing highest harmonic values first.
One-lead phase sequence detection.
Low impedance voltage input to eliminate ghost voltage readings.
DC, AC TRMS, AC+DC TRMS current by means of external transducer.
Frequency of voltage and/or current.
Resistance and continuity with buzzer.
MIN/MAX/PEAK/HOLD functions.
6000 count Display

HT Instruments JUPITER Multifunction Multimeter Functions:

TRMS
AC/DC voltage	690V / AC+DC
LoZ Input
AC/DC current	AC+DC with external clamp transducer
Frequency
Resistance and continuity test with buzzer
RCD tripping time	30mA, 100mA, 300mA A/AC
RCD trip current measurement	RCD A/AC 30mA
Leakage current (with optional accessory HT96U)
Non-trip earth resistance
Voltage and current harmonics up to the 25th and THD%
Loop impedance P-N, P-P, P-PE and calculation of prospective short-circuit current
Electric motor starting current (INRUSH)
Auto x1/2, x1, x2, x5, 0°, 180°
Phase sequence
Out come OK/NOT OK	According with IEC60364-6
Backlit LCD display
Measurement category	CAT IV 600V
Measuring counts	6000
MAX/MIN/HOLD
Bargraph

HT Instruments JUPITER Standard Accessories:

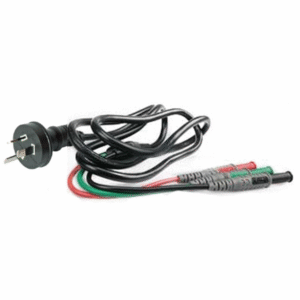

• C2033AU Three wire cable Red, Black, Green with Australian plug
• 4324-2 Pair of test tips Red/Black 2/4mm straight banana
• YABAT0001HT0 Alkaline battery 1.5V, type AAA, IEC LR03, 4 pcs
• YABRS0002HT0 Carrying bag
• YAMUM0066HT0 User manual on CD-ROM
• YAMUM0065HT0 Quick reference guide
• Calibration certificate ISO9000.[/col]

HT Instruments JUPITER Optional Accessories:[
• F3000U AC flexible clamp with 30/300/3000A full scales
• HT96U* AC current clamp with 1/100/1000A full scales
• HT97U* AC current clamp with 10/100/1000A AC full scales
• HT98U* DC current clamp with 1000A full scale
• HT4006 AC/DC current clamp with 40/400A full scales
• NOCANBA Hypertac-to-banana adapter* Adapter NOCANBA required.
