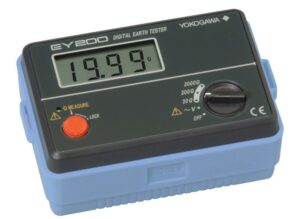

YOKOGAWA EY200 Digital Earth Tester

AUD $1,123.00 • ( AUD $1,235.30 inc. GST )

Free Delivery on orders over $500
Shipping time may vary for certain products*

  • Fast Delivery*
  • Technical Support
  • Product Training
  • Calibration Services*
  • Lowest Price Guaranteed
Click here to Make an Enquiry

Product Enquiry

If you would like more information regarding this product, simply email us here.
  • Drop files here or
    Accepted file types: jpg, gif, png, pdf, Max. file size: 1 MB, Max. files: 4.
    • This field is for validation purposes and should be left unchanged.

    mm_logo_01

    The Yokogawa EY200 is an earth resistance tester for testing power distribution lines, in-house wiring system, electrical appliances etc. It also has an earth voltage range for earth voltage measurement.

     * Capable to measure by 3-pole or 2-pole method

     * Easy to measure with one touch button and dedicated test lead

     * Small and lightweight

     * Dust and drip proof (designed to IEC60529 IP54)

    SKU: YOKOGAWA EY200 Categories: , Tag:

    The YOKOGAWA EY200 Digital Earth Tester Features:

    • Designed to safety standard IEC 61557
    • Reference to IEC 60529: Degrees of protection provided by enclosures (IP54). Measurement can be made even under adverse weather conditions
    • Large, easy-to-read LCD digital display
    • 2P Test leads (for simplified measurement) has a structure that both the safety alligator clip and the test probe are available
    • Warns when earth resistance of auxiliary earth spikes exceeds the permissible limit
    • Convenient carrying soft bag for accessories etc.
    • 3-Pole Earth Resistance Measurement (Precise Measurement)

    Connect the earth/ground electrode (E) and auxiliary spikes (P, C) to the main body using the accessory test lead. Put apart 5 to 10 m between E and P, and P and C, respectively. E, P, and C should be approximately in a line.

    3-Pole Earth Resistance Measurement (Precise Measurement)

    Connect the earth/ground electrode (E) and auxiliary spikes (P, C) to the main body using the accessory test lead. Put apart 5 to 10 m between E and P, and P and C, respectively. E, P, and C should be approximately in a line.

    2-Pole Earth Resistance Measurement (simplified measurement)

    A simplified 2-pole measuring method can be used if there is an almost perfectly earth/ground object such as a lead or iron water-pipe (plastic pipes cannot be used) or if there is an object with a known value of earth resistance, near the measurement site.

    YOKOGAWA EY200 Digital Earth Tester Specifications:

    Name Model
    Digital Earth Tester EY200
    Display LCD Digital Display: 1999-count digital reading
    Measuring Range Earth Resistance: 2000Ω LSD: 0.01 to 1Ω

    Earth Voltage: 200V

    Accuracy Earth Resistance:

    20Ω range: ±2%rdg±0.1Ω

    200 Ω range: ±2%rdg±3dgt

    2000 Ω range: ±2%rdg3dgt

    Earth Voltage: ±1%rdg±4dgt

    Measuring Frequency Approx. 820Hz
    Measuring Current Approx. 3mA (at 20Ω range)
    Battery Life Approx. 4.5hours (at 5 second measuring 3300 times)
    Operating Temp. and Humidity 0~40°C, 85%Rh or less
    Dimensions Approx. 105x158x70mm
    Weight Approx. 550g
    Standard Accessories 3-pole Test Lead (Model 98074)

    Earth Spikes (for EY200) (Model 98070)

    2-pole Test Lead Set (Model 98075)

    Soft Case (Model 93041)

    Shoulder Belt (for EY200) (Model 99018)

    Six AA (R6) dry cells

    User’s Manual

    Weight 3 kg
