REED SD-9901 Indoor Air Quality Meter Datalogger

AUD $1,635.00 • ( AUD $1,798.50 inc. GST )

Free Delivery on orders over $500
Shipping time may vary for certain products*

  • Fast Delivery*
  • Technical Support
  • Product Training
  • Calibration Services*
  • Lowest Price Guaranteed
Click here to Make an Enquiry

Product Enquiry

If you would like more information regarding this product, simply email us here.
  • Drop files here or
    Accepted file types: jpg, gif, png, pdf, Max. file size: 1 MB, Max. files: 4.
    • This field is for validation purposes and should be left unchanged.

     mm_logo_04

    The REED SD-9901 IAQ Meter and Datalogger measures CO, CO2, and O2 as well as humidity and temperature. This meter features galvanic cell CO and O2 sensors, a non-dispersive infrared CO2 sensor, and a precision capacitance humidity sensor. The SD-9901 records readings from 3 probes simultaneously, with data hold and Max/Min record.

    The SD-9901 is a Reed Air Quality Detector used to simultaneously records data from three probes. The Reed SD9901 measures CO2, CO, O2, humidity and temperature and is powered by a high accuracy microcomputer circuit. The Reed meter has data hold, USB interface, record max and minimum reading functions and saves measurements values on SD memory card for further analysis. The SD-9901 IAQ Meter Datalogger is an ideal Reed instrument especially designed to be used for monitoring the quality of air in factories, hotels, schools, office buildings or greenhouses

    Authorised Australian Distributor



    REED SD-9901  Indoor Air Quality Meter Datalogger.

    Features:

    • No extra software needed, just plug the SD card into the computer
      and it downloads directly to EXCEL
    • Simultaneously records data from three probes
    • Meter can switch to a Manual Datalogging
    • Measures CO2, CO, O2, Humidity, and Temperature
    • Non-dispersive infrared CO2 sensor
    • Galvanic cell CO and O2 sensors
    • Precision capacitance Humidity sensor
    • Real time SD memory card datalogger with a built-in clock and calendar
    • Sampling time set from 2 seconds to 8 hours
    • Easy to read LCD with backlight
    • Auto power off or manual power off
    • Data hold, record max. and min. reading
    • Alarm setting with beeper
    • High accuracy microcomputer circuit
    • Power by UM3/AA (1.5 V) x 6 batteries
    • USB/RS232 Computer interface
    • Separated probe for easy measurements of multiple environments

    Applications

    Ideal for the following applications: Monitors air quality in schools, office buildings, greenhouses, factories, hotels, hospitals, transportation lines and anywhere that high levels of carbon dioxide are generated.

    REED SD-9901 Specifications

    CO2
    Sensor Non-dispersive infrared
    Range 0 to 4,000 ppm
    Resolution 1 ppm
    Accuracy ±40 ppm (<1,000 ppm), ±5% (>1,000 ppm)
    CO
    Sensor Galvanic cell
    Range 0 to 1,000 ppm
    Resolution 1 ppm
    Accuracy ±(5% + 2 ppm)
    O2
    Sensor Galvanic cell
    Range 0 – 30% O2
    Resolution 0.1% O2
    Accuracy ±(1% + 0.2% O2)
    Alarm Threshold <18.0% O2
    Humidity
    Sensor Precision capacitive
    Range 5 to 95% RH
    Resolution 0.1% RH
    Accuracy >70%RH: ±(3% rdg + 1%RH)
    <70%RH: ±3%RH
    Temperature
    Range 0 to 50.0°C (32 to 122.0°F)
    Dew Point Range -25.3 to 48.9°C (-13.5 to 120.1°F)
    Wet Bulb Range -21.6 to 50°C (-6.9 to 122.1°F)
    Resolution 0.1°C/°F
    General Specifications
    Accuracy ±0.8°C (±1.5°F)
    Power Supply 6 x 1.5V UM3/AA batteries
    Weight 350g
    Dimensions Main Unit: 177 x 68 x 45mm
    RH Probe: 197mm Long
    CO & O2 Probe: 150 x 38 x 38mm
    CO2 Probe: 190 x 38 x 28mm

    How to Use

    How to use Air Quality Detector (SD-9901)

    Operating instructions

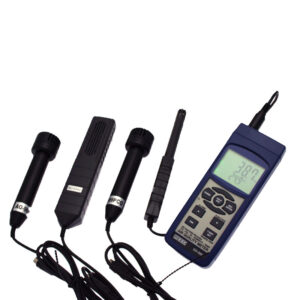

    This Reed SD-9901 Air Quality Datalogger are able to operate with three probes plugged in simultaneously. These probes are: the Humidity, CO2, and either the O2 or the CO Probe. During the operations the meter will datalog all three values and will display on the meter’s LCD only one at a time. To start using the meter plug in the Humidity, CO2, and either the O2 or the CO Probe into the sockets. Turn on the meter by pressing the Power Button. To turn the meter off, hold the Power Button for over 2 seconds. Press the Function Button to scroll through the measuring functions:
    rH: Humidity/Temperature
    dP: Dew point Temperature
    _ET: Wet bulb Temperature
    CO: CO/Temperature
    O2: O2/Temperature
    CO2: CO2/Temperature

    Reed Sd-9901 measures CO2, CO, O2, Humidity, and Temperature

    The selected measurement function will be saved as the default.

    How to use Data hold function
    During the measurements, the Reed SD-9901 Air Quality Detector are able to hold on the screen the measured value. For using that, just press the Hold Button once and a HOLD symbol will appear on the Display. Press the Hold Button once again will release the data hold function.

    How to use Data Record (Max., Min. reading)
    The data record function records the maximum and minimum readings. Press the REC Button once to start the Data Record function and a “REC” symbol will appear on the display. With the “REC” symbol on the display. Press the REC Button once, and a ”REC. MAX.” symbol along with the maximum value will appear on the display. Press the REC Button again, and a “REC. MIN.” symbol along with the minimum value will appear on the display. To delete the minimum value, press the Hold Button once, and the display will show a “REC.” symbol only and execute the memory function continuously

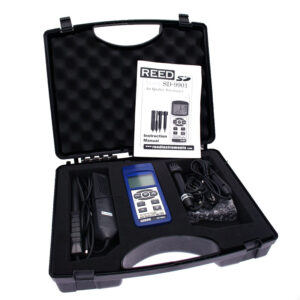

    What’s included with the REED SD-9901
    • SD-9901 IAQ Meter Datalogger
    • Humidity Probe
    • CO Probe
    • CO2 Probe
    • O2 Probe
    • Hard Carrying Case
