REED Borescope BS-150 Video Inspection Camera

The BS-150 is a new REED Video Borescope used for video inspections in hard to reach areas. Using the Reed BS-150’s 3.2′ flexible gooseneck imager, HVACR contractors and technicians can view high resolution inspection images on its high visibility 3.2″ colour TFT LCD monitor with 320×240 pixel resolution. Reed BS150 can also captures  high resolution images or transfer live inspection movies to a computer via USB. Using an optional 4GB SD card, Reed Video Borescope can save them for a further analysis. This Reed videoscope proved to be the perfect choice when articulation, portability, and easy image capture, are key factors. Reed BS-15 is high quality, an affordably priced video borescope very durable and completely portable.

REED BS-150 Features

• Comfortable pistol grip design and forward facing controls make it easy to detect and diagnose the unreachable

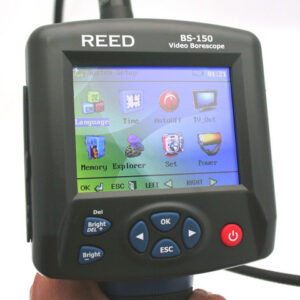

• High visibility 3.2” colour TFT LCD monitor with 320×240 pixel resolution
• 3.2’ flexible gooseneck imager head retains configured shape and is waterproof (IP67)
• Gooseneck is expandable up to 30’ with the optional cable extensions
• High visibility 10° adjustable LED lighting
• Camera and video functions allows you to save high resolution JPG images and live video
• TV compatible; TV-out.

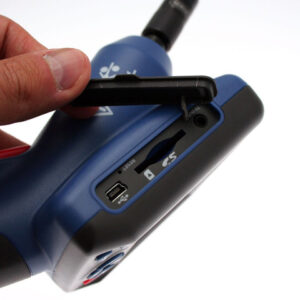

• Transfer files to a computer via USB cable and optional 2 GB SD memory card (Model BS-150-2GBSD)
• Rechargeable lithium-ion battery

REED BS-150 Specifications

• Viewing Distance: 15cm to 25 cm (5.9” to 9.8”)
• Viewing Angle: 0 to 180°
• Camera Diameter: 17mm (0.66”); Length: 1m (39”)
• Photosensitive Devices: 1/4” CMOS
• Sensor Pixel: 640 x 480
• Max. Resolution: 320 x 240
• Max. Frames: 30FPS/S
• Median Colour: 24 bit
• Focus: Manual
• File Format Compatibility: MPEG4, 3GP, AVI, ASF
• Image Format Compatibility: JPEG
• Camera Video Format: 3GP
