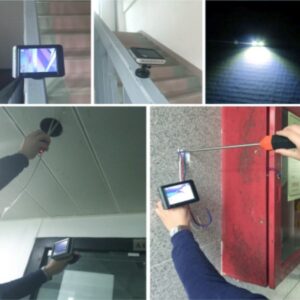

    The 4908AL is a side view rigid inspection camera that is specially designed for cavity wall inspection, wall tie and dry rot inspection, inspection of spaces under floors, above ceilings and behind panels and ducts.

    PDF Datasheet   TvbTech 4908AL Datasheet      PDF Datasheet    TvbTech 4908AL User Manual

    The TvbTech 4908AL is a side view rigid inspection camera that is specially designed for cavity wall inspection, wall tie and dry rot inspection, inspection of spaces under floors, above ceilings and behind panels and ducts, and many more where a rigid side view endoscope is required.

    The insertion probe is made of stainless steel, which adds extra robustness and durability  even in the most challenging conditions of an industrial inspection. It is usable at temperature between -10°C and 60°C. It’s also IP67 waterproof.

    The wireless transmission between camera and monitor offers great convenience for users in all kinds of inspection works. With no interconnecting wires between the probe and the monitor the probe can be rotated 360 degrees.

    TvbTech 4908AL

    TvbTech 4908AL Features

    • 2.4Ghz wireless transmission between camera and monitor
    • Mini stainless steel insertion tube, dia. 9mm
    • Insertion tube length 300mm
    • Side view camera head, 380TVL
    • 2 high intensity LEDs on camera head, providing light up to1.5 meters
    • Video out function
    • 3.5″ TFT-LCD wireless monitor with SD card recording (Max. SD card: 32GB)
    • Waterproof level: IP67 (camera tube only)
    • Built-in Rechargeable Li-battery for both camera and monitor
    • Multi-language support

    Weight 1.9 kg

    Specifications



    TvbTech 4908AL Specifications:

    Camera
    Image sensor: CMOS
    Diam. of Insertion Tube: 9mm
    Insertion Tube Length: 300mm
    Overall Length: 400mm
    Tube Material: Stainless Steel
    Light Source: 2 high intensity LEDs for 1.5m lighting distance
    Effective Pixels: 768 x 494 (NTSC) / 752 x 582 (PAL)
    Mains Battery Charger: Yes
    Depth of Field (DOF): 6cm-infinite
    Field of View (FOV): 55°
    Water Proof: IP67 (Probe only)
    Operation Temperature: -10°C ~ 60°C
    Battery Capacity: 1500mAh
    Work Time: 4 hours
    Charge Time: 5 hours
    Monitor
    Screen Size: 3.5″ TFT-LCD
    Display Resolution: 320 (R.G.B.) x 240dot
    Video Format: NTSC / PAL
    Modulation Mode: FM
    Receive Sensitivity: -85dBm (module)
    Built-in Li-Battery Capacity: 1100mAH/3.7V
    Charge Time/Work Time: 3 hours
    Current Consumption: 500mA (MAX)
    Memory: Micro SD Card
    Picture Format: JPG
    Video Format: AVI
    Picture/Video Resolution: 640 x 480
    Frame Rate: 30 Frame/Second
    Operating Temperature: 0~+45°C
