The Fluke Networks LinkIQ™ Cable+Network Tester Advanced Kit validates cable performance up to 10G, performs comprehensive network diagnostics, PoE testing, and ensures reliable multivendor interoperability, making it essential for IT professionals.

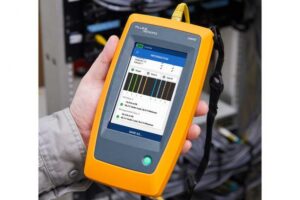

The Fluke Networks LinkIQ™ Cable+Network Tester Advanced Kit is designed to help professionals swiftly identify and resolve network connectivity issues while validating cable performance up to 10GBASE-T. Whether you are an IT technician, network installer, or maintenance engineer, this advanced tester kit provides a comprehensive solution to ensure optimal network performance. Invest in the LinkIQ™ Cable+Network Tester and deliver seamless connectivity across your network infrastructure.
Key Features
High-Speed Cable Performance Validation: Validate cable performance up to 10GBASE-T using frequency-based measurements.
Switch Diagnostics: Gain insights into connected switch data rates, switch names, IP addresses, port numbers, and VLANs.
PoE Testing: Detect PoE class (1-8) and power, perform a load test up to Class 8 (90W), and ensure reliable multivendor interoperability with Ethernet Alliance PoE Certification.
Network Connectivity Tests: Perform ping tests to verify connectivity and assess the nearest switch diagnostics.
Comprehensive Cable Diagnostics: Conduct cable diagnostics, including length measurements and IntelliTone™ technology, with remotes 2-8.
Result Management: Manage and print detailed reports from LinkWare™ PC software for optimal results tracking and documentation.
The LinkIQ™ Cable+Network Tester Advanced Kit is engineered to meet the demands of modern network environments. Validate the maximum bandwidth from 10BASE-T to 10GBASE-T and ensure that all tested links meet stringent performance requirements. This feature ensures that your infrastructure is prepared for high-speed data transfer, making it future-proof and reliable for business operations.
Beyond cable performance validation, the LinkIQ™ Cable+Network Tester excels in its diagnostic capabilities. It performs ping tests to verify connectivity and provides vital switch information such as advertised data rates, switch names, IP addresses, port numbers, and VLAN details. This information is invaluable for network troubleshooting and maintenance, allowing for quick identification of network issues.
PoE testing is another standout feature. With the ability to detect PoE classes (1-8) and perform load tests up to Class 8 (90W), the LinkIQ™ ensures that your power-over-Ethernet infrastructure is operating efficiently and safely. The Ethernet Alliance PoE Certification guarantees reliable multivendor interoperability, making it a versatile tool for various network setups.

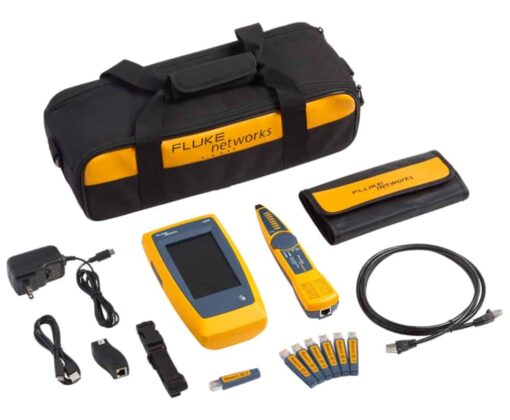

The kit also includes additional practical features such as Cable Toning and Port Blink, which streamline the process of locating and identifying network cables. The remote office locators and IntelliTone™ Pro 200 Probe further enhance its versatility, making it a must-have for professionals dealing with complex network environments.
The LinkIQ™ Cable+Network Tester is not just another tool; it’s an investment in your network’s reliability and performance. Fluke Networks has a long-standing reputation for creating high-quality, durable testing equipment, and the LinkIQ™ is no exception. Designed with the end user in mind, it simplifies complex diagnostics, provides accurate results, and supports efficient network management.
Don’t compromise on your network’s performance. Order your Fluke Networks LinkIQ™ Cable+Network Tester Advanced Kit today!
Type: Lithium-ion, 3.6 V, 6400 mAh
Life: 8 hours typical
Charge time: 4.5 hours
Charging temperature range: 0 °C to +40 °C
Power Adapter
Input: 100 to 240 VAC ±10%, 50/60Hz
Output: 15 VDC, 2 A maximum
Class II
Host Interface
USB type C
Display
800 x 480 color capacitive multi-touch
Dimensions
8.5 in x 4.5 in
Operating Temperature
0°C to 45°C
Storage Temperature
-10°C to +60°C
Operating Relative Humidity
0 % to 90 %, 0°C to 35°C
0 % to 70 %, 35°C to 45°C
Operating Altitude
4,000 m
3,200 m with ac adapter
Vibration
Random, 2 g, 5 Hz-500 Hz
Drop
1 m drop, 6 sides
Active Network Diagnostics
Feature
Description
Diagnostic Protocols
Link Layer Discovery Protocol (LLDP)
Cisco Discovery Protocol (CDP)
Fast Link Pulses (FLP)
Internet Control Messaging Protocol (ICMP),
Dynamic Host Configuration Protocol (DHCP)
IP Address Setup
LinkIQ address, DNS Server, Gateway for IPv4 or v6 either manually or via DHCP
IP Ping Test Results
Four response time results for target, DNS Server(s), Gateway, plus average and number lost
Power Over Ethernet Compatibility
Ethernet Alliance Certified to IEEE 802.3af/at/bt,
Hardware negotiation with signature resistance,
Software negotiation with LLDP/CDP
Power Over Ethernet Measurements
Loaded Voltage (V)
Loaded Power (W)
Port Blink
Blink the light of the connected port
Cable Test Specifications
Feature
Description
Test Port
Shielded 8-pin modular jack accepts 8-pin modular (RJ45) plugs.
Commissioning Autotests
10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, 100BASE-TX, 10BASE-T, Wire map Only.
Test Speed: 6 seconds for lengths < 70 m
Document wire map
Length of each pair
Diagnose split pairs
User selectable T568A or T568B
User selectable crossover settings (Straight through, Half-crossover, Full-crossover)
Test speed: 1 second for lengths < 120 m
Length (Maximum)
305 m (1000 ft)
Nominal Velocity of Propagation (NVP)
User settable
Tone Generator
Generates digital tones compatible with Fluke Networks IntelliTone probe.
Generates analogy tones compatible with general analog probes.
Remote ID Locators
Use remote ID terminations to identify up to 7 unique ports or office outlets
