    The FLUKE MS2-100 MicroScanner2 Cable Verifier streamlines cable testing with its intuitive interface, supports multiple media types without adapters, and offers comprehensive diagnostic capabilities in a rugged, durable design.

    PDF download MS2-100 Datasheet

    SKU: 2772449 Categories: , Tag:

    FLUKE MS2-100 MicroScanner2 Cable Verifier

    Streamlined verification testing

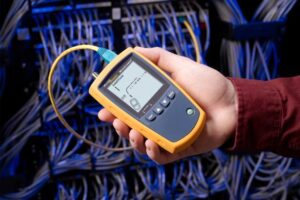

    Introducing the Fluke MS2-100 MicroScanner2 Cable Verifier, the ultimate solution for simplifying voice, data, and video cable testing. The Fluke MicroScanner™ Cable Verifier series revolutionises cable testing by consolidating the results from four distinct test modes and presenting them simultaneously on the display. You’ll have access to graphical wiremap, pair lengths, distance to fault, cable ID, and far-end device information all in one view. This multifaceted functionality supports virtually any type of low-voltage cable testing without the need for cumbersome adapters, thereby significantly reducing both test time and the likelihood of technician error. With the Fluke MS2-100, high-quality installations have never been more efficient.

    Rule out service problems fast

    Communications technicians face a myriad of problems beyond just the cabling. To troubleshoot effectively, they need to rule out numerous potential cable and service issues to identify the root cause of a connection problem. The MicroScanner2 Cable Verifier answers this challenge with its comprehensive diagnostic capability. With features to detect telephone voltage and polarity, identify Ethernet switches at the far end, and verify Power over Ethernet (PoE) availability, technicians can quickly and effectively diagnose the most common service issues. This reduces troubleshooting time and enables faster, more thorough diagnostics for today’s voice, data, and video services.

    Key Features of the FLUKE MS2-100:

    • Revolutionary Interface: The Fluke MS2-100 merges graphical wiremap, pair lengths, cable ID, and distance to fault on a single screen for easy interpretation of results.
    • Multimedia Support: This device tests a variety of common media types, including RJ11, RJ45, Coaxial cables, all without the need for adapters.
    • IntelliTone Toning: Fluke’s IntelliTone technology allows you to trace virtually any cable or wire pair using both digital and analog toning methods for more accurate results.
    • VDV Service Detection: Verify today’s media services, including 10/100/1000 Ethernet, POTS, and PoE with this versatile device.
    • Rugged Housing: Its integrated rubber holster enhances grip and durability, making it robust enough for even the toughest job sites.
    • Oversized Display: The large, backlit LCD provides crystal-clear results, whether you’re working in bright sunlight or a dark closet.

    What’s Included:

    The MicroScanner2 Cable Verifier package comes with everything a technician needs to start testing immediately. Included in the package are the MicroScanner2 Cable Verifier with the main wiremap adapter, a multi-language Getting Started Guide, batteries, and a Fluke Networks carry pouch for easy transportation and storage.

    Why Choose FLUKE MS2-100 MicroScanner2 Cable Verifier?

    Enhanced Efficiency

    The Fluke MS2-100 MicroScanner2 Cable Verifier is designed to enhance efficiency by reducing test time and minimising errors. Its streamlined display consolidates multiple test results, making it easier for technicians to interpret data and make informed decisions quickly.

    Comprehensive Troubleshooting

    With the ability to diagnose a wide array of common service problems, from telephone voltage and polarity to the availability of PoE, this device is a must-have for any communications technician. The speed and thoroughness of the troubleshooting process are vastly improved, leading to faster resolution of issues and less downtime.

    Durability and Convenience

    Built to withstand tough job site conditions, the Fluke MS2-100 features a rugged housing with an integrated rubber holster for enhanced grip and impact resistance. Additionally, the oversized, backlit LCD ensures that results are easy to read in any lighting condition.

    Versatility

    Supporting a broad range of cable types and testing without the need for adapters, the MicroScanner2 Cable Verifier is a versatile tool that can handle almost any testing scenario. This multifunctionality makes it an invaluable tool for professionals dealing with voice, data, and video services.

    Invest in the FLUKE MS2-100 MicroScanner2 Cable Verifier today to experience a seamless, efficient, and comprehensive cable testing process. Ideal for professionals who demand reliability and performance, the MicroScanner2 Cable Verifier is a decisive addition to your toolkit.

    Weight 2 kg

    Specifications

    Specifications apply at 23 °C (73 °F), unless otherwise noted.

    Environmental specifications
    Operating temperature 32 °F to 113 °F (0 °C to 45 °C)
    Storage temperature -4 °F to +140 °F (-20 °C to +60 °C)
    Operating relative humidity (% RH without condensation) 90 % (50 °F to 95 °F 10 °C to 35 °C)
    75 % (95 °F to 113 °F 35 °C to 45 °C)
    Shock and Vibration Random, 2 g, 5 Hz-500 Hz (Class 2)
    1 m drop test with and without wiremap adapter attached
    Safety IEC 61010-1 3rd Edition
    Altitude 4,000 m; Storage: 12,000 m
    EMC IEC 61326-1
    General specifications
    Test connectors Shielded 8-pin modular jack accepts 8-pin modular (RJ45) and 4-pin modular (RJ11) plugs. MicroScanner2: F-connector for coaxial cable.
    Power Battery type: 2 AA (NEDA 15A, IEC LR6) alkaline batteries
    Battery life: 20 hours of typical use
    Other compatible battery types: 2 AA photo lithium, NIMH, NICAD
    Dimensions and weight (with batteries installed and wiremap adapter attached) 3 in x 6.4in x 1.4 in (7.6 cm x 16.3 cm x 3.6 cm)
    MicroScanner2: 10.6 oz (300 g)
    Display Monochrome LCD with backlight
    Test modes
    Cable test Measures length, verifies wiremap, identifies remote ID locators, and detects Ethernet ports. MicroScanner PoE also shows HIGH Ω when the resistance of the cable is more than 12.5 Ω. Displays results on one screen.
    Tone Generates Intellitone™ and normal analog toning signals
    PoE MicroScanner2: Solicits and detects the presence of 802.3af compatible PoE (Power over Ethernet) devices
    Performance specifications
    Cable types tested Twisted pair: UTP, FTP, SSTP
    Coaxial (MicroScanner2): 75 Ω, 50 Ω, 93 Ω
    Length test Range: 460 m (1500 ft)
    Resolution: 0.3 m (1 ft)
    Typical accuracy: ± 4% or 0.6 m (2 ft) whichever is greater. NVP uncertainty is an additional error.
    Calibration: User-settable NVP for twisted pair and coax (MicroScanner2). Can determine actual NVP with known length of cable.
    Wiremap test Detects single-wire faults, shorts, miswires, split pairs, and up to seven far-end adapter IDs. The wiremap is drawn with proportional length to visually indicate the approximate location of faults.
    Ethernet port detection MicroScanner2: Detects the advertised speed of 802.3 Ethernet ports with speeds of 10 Mbps, 100 Mbps, and 1 Gbps.
    Tone generator Supports toning and cable mapping with a Fluke Networks digital IntelliTone™ probe. Generates four tones compatible with typical analog probes. SmartTone™ feature gives positive identification of cables in bundles when using an IntelliTone or an analog probe.
