Fluke Networks LinkIQ™ Industrial Ethernet Cable & Network Tester (LIQ-100-IE) – Qualify Cabling to 10 Gb/s for EtherNet/IP, PROFINET & EtherCAT

The Hidden Cost of Industrial Ethernet Downtime — And How to Eliminate It

If you’re responsible for keeping an industrial network running — whether that’s a bottling plant in Western Sydney, a mining operation in the Pilbara, or a solar farm control system in outback Queensland — you already know that network faults don’t wait for convenient moments. A single miswired M12 connector or a degraded cable run can take an entire production line offline, costing thousands of dollars per hour in lost output.

Here’s the uncomfortable truth: cabling is the number one cause of Industrial Ethernet problems. Not the PLCs. Not the switches. Not the software. The cables themselves — and the connectors terminating them.

The Fluke Networks LinkIQ™ Industrial Ethernet Cable & Network Tester (LIQ-100-IE) was built specifically for Operational Technology professionals who need to qualify, troubleshoot, and document industrial network cabling quickly and confidently. It replaces the guesswork with frequency-based measurements that tell you exactly what your cabling can support — and pinpoints exactly where problems are when it can’t.

What Makes the LIQ-100-IE Different from Standard Network Testers?

Most cable testers on the market are designed for structured cabling in office environments — think Cat 5e and Cat 6 runs terminated in RJ45 patch panels. They work fine in IT closets. But industrial Ethernet is a different world.

On a factory floor or process plant, you’re dealing with M12X connectors for PROFINET, M12D for EtherNet/IP, M8D for compact sensor-level networking, and standard RJ45 — often all within the same facility. A standard tester simply can’t handle that range of connectors or the protocols running over them.

The LIQ-100-IE ships with a complete Industrial Ethernet adapter kit including dedicated RJ45-to-M12X, RJ45-to-M12D, and RJ45-to-M8D patch cords, plus a multi-connector remote adapter with magnetic strap. This means you can wire-map and performance-test every industrial connector type from a single handheld device — no swapping adapters from different manufacturers, no improvised setups, and no assumptions about cable integrity.

Frequency-Based Cable Performance Qualification — Not Just Continuity

There’s a critical distinction between a cable tester that confirms electrical continuity and one that actually qualifies whether the cabling can sustain the data rate your network demands.

The LinkIQ LIQ-100-IE uses frequency-based measurements aligned with IEEE standards to qualify cabling bandwidth from 10BASE-T right through to 10GBASE-T. This is fundamentally different from transmission testers that only prove two specific devices can talk over a link at a given moment. The LinkIQ measures the cable’s actual performance characteristics, giving you a clear pass/fail verdict against standards like 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, 100BASE-TX, or 10BASE-T.

For Australian OT teams planning network upgrades — say, moving from 100 Mb/s PROFINET segments to Gigabit speeds — this means you can verify whether existing cable runs will support the higher data rates before investing in new hardware. A six-second autotest on cable runs under 70 metres gives you the answer on the spot.

Complete Wire Mapping for Industrial Connectors

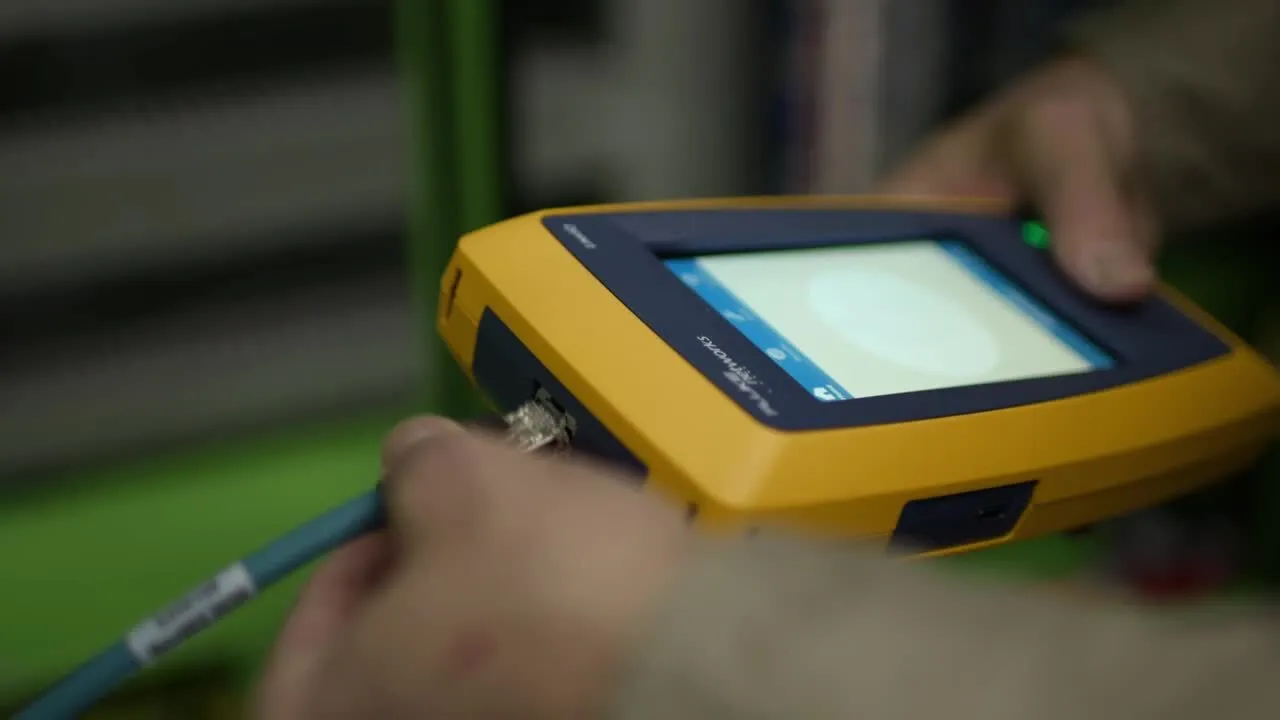

Using the included Industrial Ethernet Remote Adapter, the LIQ-100-IE performs full wire mapping across all four industrial connector types: RJ45, M12X (commonly used with PROFINET), M12D (standard for EtherNet/IP), and M8D (used in compact sensor networks).

The wire map identifies opens, shorts, crossed pairs, split pairs, and miswiring — the kind of termination faults that cause intermittent communication errors, packet loss, and those maddeningly inconsistent network dropouts that are almost impossible to trace without proper test equipment.

Cable length measurement extends to a full 305 metres (1,000 feet), with distance-to-fault capability that tells you not just that a problem exists, but precisely how far down the run it is. When you’re dealing with cable runs buried in cable trays across a manufacturing facility, that specificity saves hours of troubleshooting.

Nearest Switch Diagnostics — Instant Network Visibility

Once the LinkIQ detects an active switch connection, it automatically gathers diagnostic information using LLDP (Link Layer Discovery Protocol) and CDP (Cisco Discovery Protocol). Without needing a laptop, terminal session, or managed switch access, you can see the switch name, IP address, MAC address, connected port number, VLAN configuration, advertised data rates, and duplex settings.

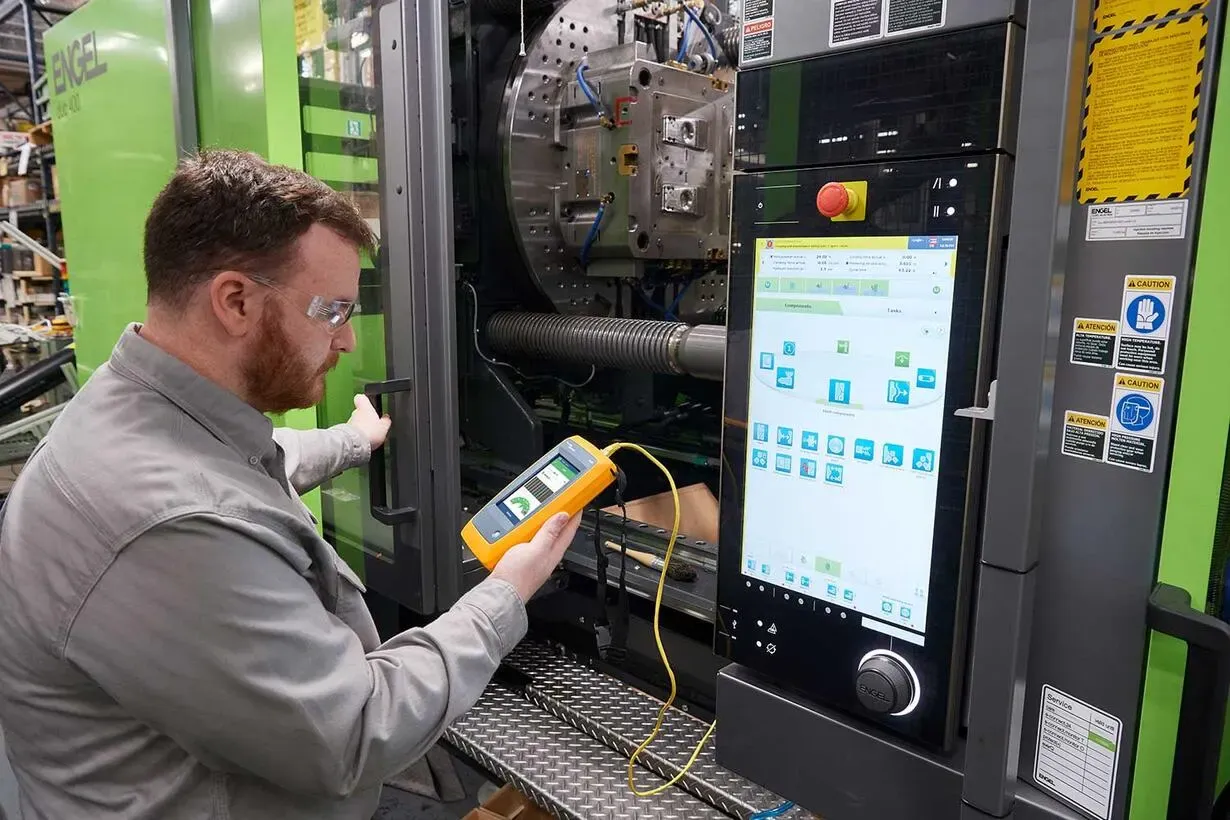

For maintenance electricians and OT technicians who don’t live in the networking world day-to-day, this is a game-changer. You can confirm in seconds whether a device is plugged into the correct VLAN, verify port speed negotiation, and identify configuration mismatches — all from the factory floor.

The integrated ping test takes it further by checking connectivity to a specified target, DNS server, and gateway. It provides individual response times for four sequential pings plus average latency and packet loss counts, giving you a fast snapshot of network health without carrying an additional device.

Power over Ethernet Testing to IEEE 802.3bt Class 8 (90 W)

Industrial PoE deployments are growing rapidly — powering IP cameras, wireless access points, VoIP phones, and even some compact industrial computers directly over Ethernet. But PoE implementations are notoriously tricky. The IEEE alone maintains three different PoE standards (802.3af, 802.3at, and 802.3bt), and non-compliant implementations are more common than most people realise.

The LinkIQ LIQ-100-IE is Ethernet Alliance Certified for PoE testing and supports load testing up to Class 8 (90 W). Rather than simply reporting what the switch advertises, the LinkIQ places an actual load on the connection to verify that the advertised power is genuinely being delivered through the cabling infrastructure.

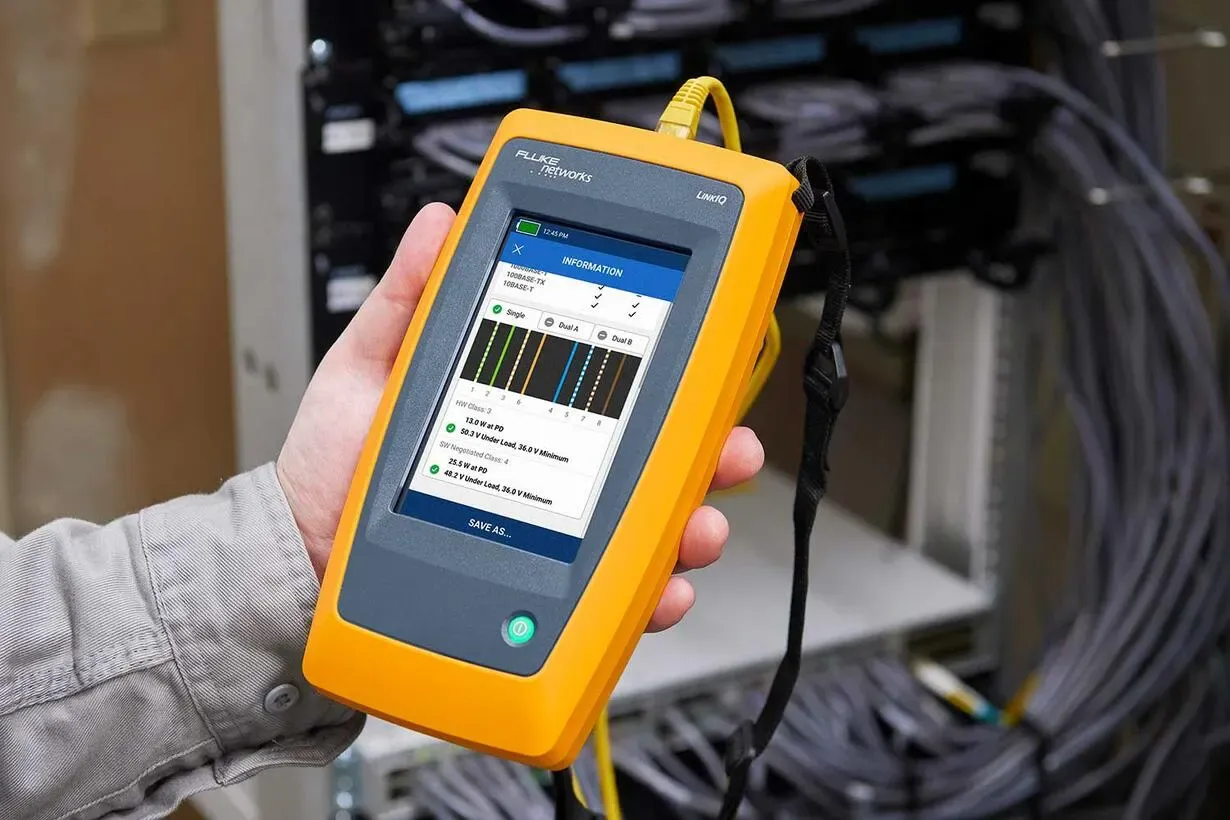

It displays which pairs are carrying power, the power class, available wattage, loaded voltage, and loaded power — including full diagnostics for dual-signature implementations. For PoE troubleshooting, this loaded test is essential because it reveals problems that are invisible to passive detection: voltage drop across long cable runs, inadequate cable gauge, and PSE (Power Sourcing Equipment) that doesn’t deliver what it promises.

Colour Touchscreen Built for Gloved Hands and Bright Conditions

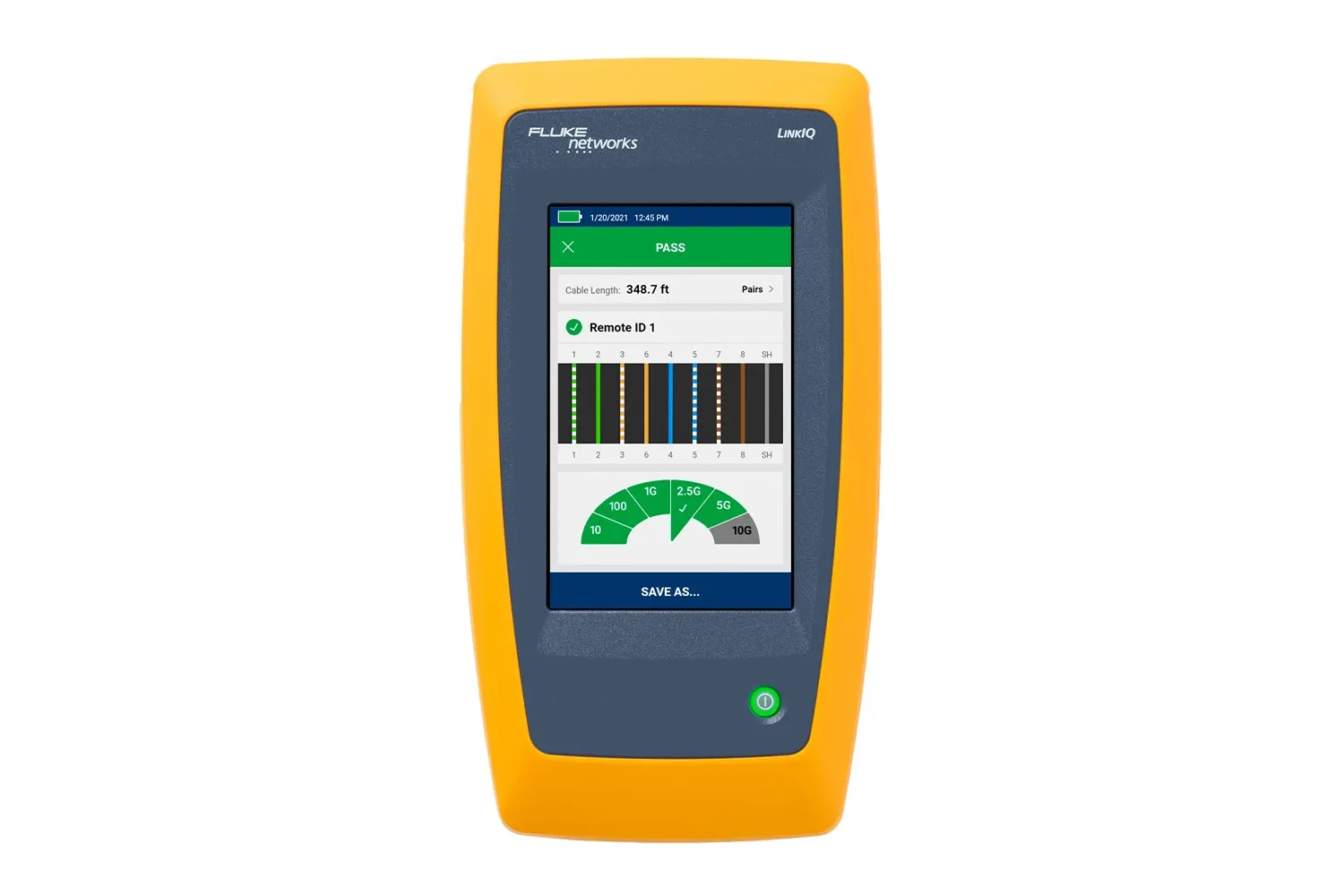

The LIQ-100-IE features a large 800 × 480 pixel colour capacitive touchscreen with gesture-based navigation. Test results are displayed graphically for fast interpretation — no scrolling through text menus or memorising button combinations.

A simplified one-button TEST function adapts its output based on what’s connected. Plug in a cable with a remote and you get wire map plus performance results. Connect to a live switch port and you get negotiation details, PoE status, and ping results. The interface is intuitive enough for technicians who pick up the tester occasionally, while still providing the depth of data that experienced network engineers expect.

Documentation and Reporting via LinkWare™ PC

Every test result can be saved with a descriptive name — the tester stores up to 1,000 results internally. Test naming auto-increments (e.g., “Panel A-1,” “Panel A-2,” “Panel A-3”), which speeds up sequential cable testing during commissioning or auditing runs.

Results upload to LinkWare™ PC via the USB-C port. LinkWare is the industry’s most widely used cable test reporting platform, with over two decades of compatibility across Fluke Networks testers. From LinkWare, you can generate professional PDF reports suitable for client handover, compliance documentation, or your own internal records.

For Australian contractors and maintenance teams working under documentation-heavy contracts — especially in mining, food and beverage manufacturing, and critical infrastructure — this built-in reporting workflow eliminates hours of manual documentation.

Additional Features That Save Time on Site

The LinkIQ includes both analog and digital tone generation, compatible with the Fluke Networks IntelliTone™ Probe or Pro3000™. This lets you trace and identify cables through walls, ceilings, and congested cable trays — a task that comes up constantly during retrofits and expansions.

The Port Blink feature flashes the link light on the connected switch port, making it easy to visually confirm which port a cable terminates at when you’re standing at the rack. It sounds simple, but on a 48-port switch with sparse labelling, it’s invaluable.

The unit is powered by a 3.6 V, 6,400 mAh lithium-ion battery providing approximately 8 hours of continuous use — easily a full workday of testing. Charging is handled through a standard USB-C port, which also serves for firmware updates and data transfer.

Built for Australian Industrial Conditions

Weighing just 624 grams and measuring 220 × 110 mm, the LIQ-100-IE is compact enough for a tool belt or kit bag. It operates across a temperature range of 0°C to 45°C and handles relative humidity up to 90% (at temperatures below 35°C), making it suitable for the climate extremes Australian technicians routinely work in — from air-conditioned server rooms to un-cooled switchboards in Queensland’s summer heat.

The unit is drop-tested to one metre on all six sides and rated for vibration resistance at 2g across 5–500 Hz, so it can handle the bumps and knocks of daily field use.

What’s in the Box (LIQ-100-IE Kit)

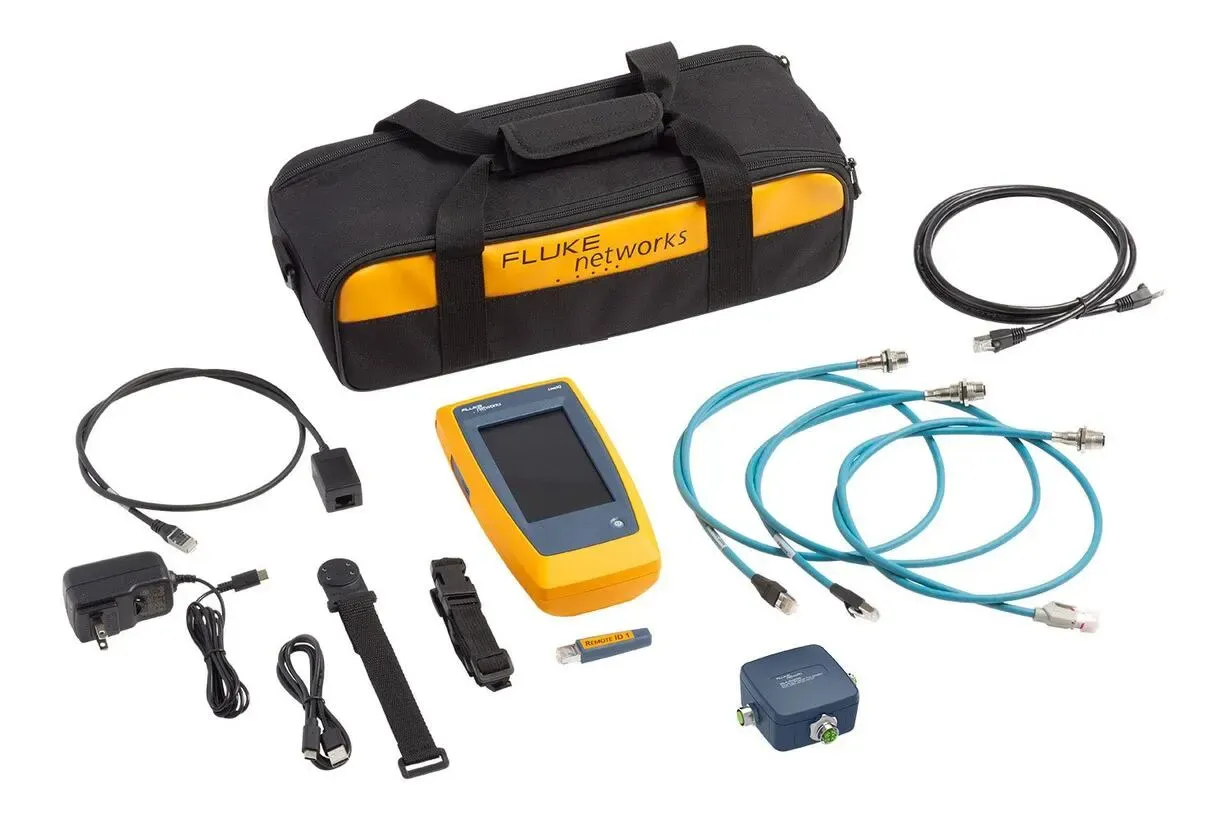

The LIQ-100-IE comes ready to work straight out of the bag with everything you need for industrial Ethernet testing: the LinkIQ tester unit with multi-connector adapter and magnetic strap, RJ45 Remote ID #1, Cat 6A patch cord, RJ45 male-to-female patch cord, RJ45-to-M12X patch cord, RJ45-to-M12D patch cord, RJ45-to-M8D patch cord, RJ45/11 modular adapter, USB-C to USB-A cable, charging cable, hanging strap with Remote ID holder, quick reference guide, and a durable duffle bag.

For expanded capabilities, the LIQ-KIT-IE adds Remote IDs #1–7 (for identifying up to seven individual cable runs or outlets) plus the IntelliTone Pro Probe for cable tracing.
