Welcome to the ultimate solution for verifying your network’s cable performance and solving connectivity issues. Introducing the Fluke Networks LinkIQ Cable + Network Tester, a powerhouse tool designed to ensure your network operates at peak efficiency.
Key Features
Validate Cable Performance: The LinkIQ™ Cable + Network Tester validates cable performance up to 10GBASE-T using frequency-based measurements. This ensures your cables meet performance requirements from 10BASE-T to 10GBASE-T, so you can trust your network connections.
Detailed Switch Diagnostics: Gain comprehensive insights into your network with connected switch data rate, switch name, IP address, port number, and VLAN information. This allows for precise and informed network management.
PoE Testing and Load: Detect PoE class (1-8) and power levels efficiently. Perform load tests to ensure your network’s Power over Ethernet (PoE) capabilities are up to standards, achieving up to Class 8 (90 W).
TCP/IP Network Connectivity: Test your network’s connectivity through detailed IP configuration and ping tests. This makes diagnosing and troubleshooting network issues a breeze.
Product Overview

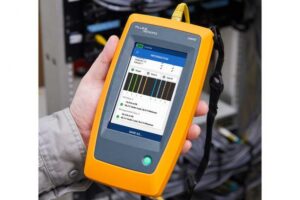

The LinkIQ™ Cable + Network Tester by Fluke Networks is the go-to solution trusted by professionals to validate cable performance up to 10G and solve complex network connectivity problems. It employs advanced frequency-based measurements for accurate bandwidth calculations, ensuring tested links meet precise performance requirements. Additionally, its capacity for performing comprehensive ping tests verifies connectivity while also diagnosing the nearest switch to provide critical details such as advertised data rate, switch name, IP address, port number, VLAN information, and PoE testing up to Class 8 (90 W).
This exceptional device is Ethernet Alliance PoE Certified, guaranteeing reliable multi-vendor interoperability. To further enhance its functionality, the LinkIQ™ Cable + Network Tester includes the following features:
Cable Toning: Quickly identify and trace cables in large installations.
Port Blink: Easily locate network ports.
Remote Office Locators: Identify office locations remotely for efficient troubleshooting.
LinkWare PC Management: Manage and review test results effortlessly using LinkWare PC software, ensuring your network documentation is always up-to-date.
Why Choose LinkIQ™ Cable + Network Tester?
Whether you’re a network administrator, technician, or IT professional, the Fluke Networks LinkIQ Cable + Network Tester is your essential tool for ensuring network reliability and performance. Its robust design and comprehensive testing capabilities save time and reduce the complexity of identifying and solving network issues.
Ensure Network Reliability
With its ability to validate cable performance and provide detailed network diagnostics, the LinkIQ™ Cable + Network Tester ensures your network is running smoothly and efficiently.
Simplify Troubleshooting
Performing tests for connectivity, PoE class, and load, along with acquiring essential switch information, simplifies the troubleshooting process and enhances productivity.
Enhance Efficiency
Features like Cable Toning and Port Blink make locating and identifying cables and network ports swift and easy, thereby boosting your efficiency and reducing downtime.
Purchase the Fluke Networks LinkIQ Cable + Network Tester Today!
Equip your toolkit with the Fluke Networks LinkIQ Cable + Network Tester and make network maintenance, verification, and troubleshooting simpler and more reliable. Visit our store now and secure yours to experience the next level in cable and network testing technology.
Type: Lithium-ion, 3.6 V, 6400 mAh
Life: 8 hours typical
Charge time: 4.5 hours
Charging temperature range: 0 °C to +40 °C
Power Adapter
Input: 100 to 240 VAC ±10%, 50/60Hz
Output: 15 VDC, 2 A maximum
Class II
Host Interface
USB type C
Display
800 x 480 color capacitive multi-touch
Dimensions
8.5 in x 4.5 in
Operating Temperature
0°C to 45°C
Storage Temperature
-10°C to +60°C
Operating Relative Humidity
0 % to 90 %, 0°C to 35°C
0 % to 70 %, 35°C to 45°C
Operating Altitude
4,000 m
3,200 m with ac adapter
Vibration
Random, 2 g, 5 Hz-500 Hz
Drop
1 m drop, 6 sides
Active Network Diagnostics
Feature
Description
Diagnostic Protocols
Link Layer Discovery Protocol (LLDP)
Cisco Discovery Protocol (CDP)
Fast Link Pulses (FLP)
Internet Control Messaging Protocol (ICMP),
Dynamic Host Configuration Protocol (DHCP)
IP Address Setup
LinkIQ address, DNS Server, Gateway for IPv4 or v6 either manually or via DHCP
IP Ping Test Results
Four response time results for target, DNS Server(s), Gateway, plus average and number lost.
Power Over Ethernet Compatibility
Ethernet Alliance Certified to IEEE 802.3af/at/bt,
Hardware negotiation with signature resistance,
Software negotiation with LLDP/CDP
Power Over Ethernet Measurements
Loaded Voltage (V)
Loaded Power (W)
Port Blink
Blink the light of the connected port
Cable Test Specifications
Feature
Description
Test Port
Shielded 8-pin modular jack accepts 8-pin modular (RJ45) plugs.
Commissioning Autotests
10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, 100BASE-TX, 10BASE-T, Wire map Only.
Test Speed: 6 seconds for lengths < 70 m
Document wire map
Length of each pair
Diagnose split pairs
User selectable T568A or T568B
User selectable crossover settings (Straight through, Half-crossover, Full-crossover)
Test speed: 1 second for lengths < 120 m
Length (Maximum)
305 m (1000 ft)
Nominal Velocity of Propagation (NVP)
User settable
Tone Generator
Generates digital tones compatible with Fluke Networks IntelliTone probe.
Generates analogy tones compatible with general analog probes.
Remote ID Locators
Use remote ID terminations to identify up to 7 unique ports or office outlets
