Discover the Fluke 1670 Series Installation Multifunction Testers, designed to enhance efficiency with faster testing, seamless data management, and advanced features like high current loop mode and IMD testing. Ideal for professionals seeking optimal performance and precision, all integrated with Fluke TruTest Software for straightforward report generation and data analysis.

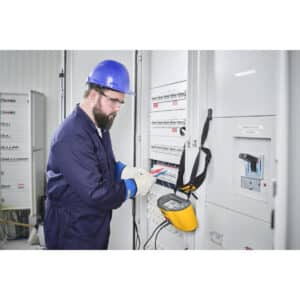

Fluke 1670 Series Multifunction Installation Testers
Experience unparalleled precision and efficiency with the Fluke 1670 Series Multifunction Installation Testers. Designed for professional electricians and engineers, this advanced series offers a comprehensive array of features tailored to meet the evolving demands of electrical testing.
Why Choose Fluke 1670 Series?
The Fluke 1670 Series sets a new benchmark in installation testing, providing a suite of tools that ensure safety and accuracy. With compatibility options like the Fluke Connect mobile app, you can seamlessly synchronize data, ensuring your results are always up-to-date and securely backed up to the cloud. This integration also allows for improved data management, facilitating quick project creation and hassle-free reporting through the TruTest Software.
Key Features:
Field Updatable: Adapt swiftly to regulatory changes or enhancements directly in the field without complications.
User-Friendly Design: Navigate effortlessly using the full-color touch screen paired with a tactile rotary knob, eliminating cumbersome multi-level menus.
Long-lasting Performance: The rechargeable 2,500 mAh Li-ion battery ensures a full day of testing capabilities wherever you go, recharged conveniently with a standard USB-C port supporting fast charging.
Robust Protection: Transport all your tools securely with the newly designed professional hard case, providing optimal protection for both your tester and accessories.
Versatile Test Functions: Conduct tests like the additional high current loop mode for faster and efficient measurements, without tripping RCD protected circuits, and benefit from advanced features such as Surge Protection Device tests and Insulation Monitoring Device tests.
Enhanced Measurement Capabilities: Effortlessly measure PEFC or PSC and loop impedance in parallel, and take advantage of voltage drop measurement functions to ensure more reliable outcomes.
Model Options:
Choosing from the Fluke 1670 Series lineup ensures that you find the perfect fit for your unique testing needs:
Fluke 1673 FC and 1673 FC w/ TruTest Software: Enhance your testing and reporting capabilities with real-time data analysis.
Fluke 1674 FC and 1674 FC w/ TruTest Software: Incorporate advanced features suitable for comprehensive electrical testing requirements.
Fluke 1674 FC and Fluke 1630 Kit w/ TruTest Software: The ultimate bundle for comprehensive testing and software integration.
Achieve More with Fluke Connect Compatibility
Maximize the potential of your Fluke 1673 FC and 1674 FC Testers by leveraging the Fluke Connect ecosystem. This feature drastically reduces the time spent on data entry and enables better data management. Create projects, upload them, and guide your testing activities with precision and ease. Capture photos and assign them to test points for detailed visual inspection reports, providing enhanced clarity and communication.
In summary, the Fluke 1670 Series Multifunction Installation Testers not only cater to your immediate testing needs but also equip you for future technology and regulation changes. Invest in a product that combines reliability with innovation, ensuring your work is informed, efficient, and cutting-edge. Visit our store today to discover which model best meets your testing requirements and take advantage of our competitive pricing and exceptional customer service.
Fluke 1670 Series Installation Multifunction Testers
Introducing the revolutionary Fluke 1670 Series Installation Multifunction Testers, the next evolution in electrical testing equipment. Building on the acclaimed Fluke 1660 Series, the 1670 Series offers enhanced functionalities and cutting-edge features, designed to transform your installation testing experience. Ideal for residential, commercial, and industrial electricians as well as maintenance technicians, the Fluke 1670 Series ensures precision, speed, and efficiency in every task.
Superior Testing Capabilities
Experience up to 30% faster testing with the advanced Fluke 1670 Series. Streamlined data management capabilities integrated with comprehensive reporting software mean each test is not only rapid but also results in easy-to-understand documentation. Achieve quick pass/fail results with Auto Test and Automatic Measurement Validation, speeding up routine inspections and reducing human error. The series complies with IEC 60364-6 and other relevant local installation test standards, guaranteeing reliable results every time.
Optimised Software Integration
Harness the power of Fluke TruTest Software to manage electrical system data seamlessly. Eliminate the hassle of traditional data management and produce intuitive reports for clients or your management team with greater efficiency. With the 1670 Series, testing metadata can be seamlessly transferred between the tester and software using a USB-C interface cable or the Fluke Connect mobile app, ensuring your data is always accurate and up-to-date. Format your measurement data into professional test certificates and reports, complete with company logos and electronic signatures, efficiently and effectively.
Fluke Connect Compatibility
Take your testing to the next level with the Fluke Connect mobile app. Erase tedious data entry tasks and optimise data management using cloud storage solutions. Wirelessly synchronise measurement data for straightforward exporting, create projects, and upload them to your Fluke 1673 FC and 1674 FC Installation Testers. Develop distribution boards and circuits to streamline your testing routine, while capturing photos and notes to create detailed visual inspection reports.
Cutting-Edge Features
Designed with a compact, lightweight build (less than 1.6 kg) and a padded neck strap, the 1670 Series ensures comfort during prolonged testing sessions. Navigate with ease using the full-colour touch screen and tactile rotary knob, removing the complexity of multi-level menus. Enjoy the dependency of a rechargeable 2,500 mAh Li-ion battery, standard USB-C port with fast charging, and a robust professional hard case, perfect for transport and protection.
Advanced Testing Functions
Additional high current loop mode for speedier measurements.
IMD and SPD testing for enhanced protection.
Voltage drop measurement and Z Max memory for loop evaluations.
Unique zero adapter for accurate test lead and mains cord compensation.
Simultaneous voltage measurement displays for a comprehensive overview.
RCD trip current and time measurement for AC, A, B, F, and GFCI types.
PEFC or PSC measurement shown in parallel with loop impedance.
Ring testing functionality and low current continuity test.
Earth Volt Touchpad to detect dangerous raised earth voltages.
Revolutionise Your Testing Regime
The Fluke 1670 Series Installation Multifunction Testers epitomise innovation, offering the latest in electrical testing technology to enhance efficiency and safety. With its wide array of dynamic features and integrated software solutions, the 1670 Series is the ultimate tool for professionals seeking superior performance. Elevate your testing regime today with the Fluke 1670 Series. Explore the range and make the smart choice for unparalleled testing accuracy and speed.
26.25 cm x 14.19 cm x 11.93 cm (10.3 in x 5.6 in x 4.7 in)
Weight (incl. batteries)
1.6 kg (3.5 lb)
Battery size, quantity
BP290, Li-ion, 10.8 V, 2500 mAh, 27 Wh
Ingress Protection
IEC 60529: IP40
Safety
Complies with IEC/EN 61010-1, IEC 61010-2-030, IEC 61010-2-034
Safety rating
CAT III 600 V, CAT IV 300 V
Performance
IEC 61557-1 to IEC/EN 61557-8 and IEC 61557-10
Voltage measurement AC, DC, and frequency
Range
Resolution
Input Impedance
Overload Protection
600 V
0.1 V
320 kΩ
660 V
45-66 Hz
0.1 Hz
320 kΩ
–
Continuity testing (RLO)
Range (Auto ranging)
Resolution
Open Circuit Voltage
20 Ω/200 Ω/2000 Ω
0.01 Ω/0.1 Ω/1 Ω
> 4 V
Insulation resistance measurement (RISO)
Test voltages
1672
100-250-500-1000 V
1673 FC/1674 FC
50-100-250-500-1000 V
Test Voltage
Insulation Resistance Range
Resolution
Test Current
50 V
10 kΩ to 50 MΩ
0.01 MΩ
1 mA @ 50 kΩ
100 V
10 kΩ to 20 MΩ
20 MΩ to 100 MΩ
0.01 MΩ
0.1 MΩ
1 mA @ 100 kΩ
250 V
10 kΩ to 20 MΩ
20 MΩ to 200 MΩ
0.01 MΩ
0.1 MΩ
1 mA @ 250 kΩ
500 V
10 kΩ to 20 MΩ
20 MΩ to 200 MΩ
200 MΩ to 500 MΩ
0.01 MΩ
0.1 MΩ
1 MΩ
1 mA @ 500 kΩ
1000 V
100 kΩ to 200 MΩ
200 MΩ to 1000 MΩ
0.1 MΩ
1 MΩ
1 mA @ 1 MΩ
Insulation pretest
Insulation safety pretest
Connections from the Tester to L, N, and PE are required.
Insulation pretestSurge Protection Device (SPD) Insulation RAMP Test (Varistor Test) IEC 61643-11
Test Voltage
Voltage Ranges
Resolution
Test Current
Accuracy
500 V
Step Ramp 0 V to 500 V
1 V
1 mA
± (1.5 % + 3 digits)
1000 V
Step Ramp 0 V to 1000 V
1 V
1 mA
± (1.5 % + 3 digits)
Insulation Monitoring Devices (IMD) IEC 61557-8
Range
Resolution
Note
1 kΩ to 10 kΩ
1 kΩ
> 1 MΩ only available with voltages >100 V
10 kΩ to 100 kΩ
10 kΩ
100 Ω to 3 MΩ
100 kΩ
Loop and line impedance (ZI No Trip and Hi Current)
Range Setting
Resolution
Accuracy[1]
10 Ω[2]
0.001 Ω
Hi Current mΩ mode: ± (2 % + 15 digits) No Trip (2&3 wire) mode: ± (3 % + 6 digits)
20 Ω
0.01 Ω
Hi Current mode: ± (2 % + 4 digits)
200 Ω
0.1 Ω
No Trip mode: ± (3 %)
Hi Current mode: ± (2 %)
2000 Ω
1 Ω
± 6 %[3]
Valid for resistance of neutral circuit < 20 Ω and up to a system phase angle of 30°. Test leads must be zeroed before testing.
Fluke Connect™ 1674 FC model only.
Valid for mains voltage > 200 V.
Prospective Earth Fault Current (PEFC) Prospective Short Circuit Current (PSC)
Range
Resolution
Units
0 kA to 50 kA
IK < 1000 A
IK ≥ 1000 A
1 A
0.1 kA
Computation: Prospective Earth Fault Current (PEFC/IK) or prospective short circuit current (psc/IK) determined by dividing measured mains voltage by measured loop (L-PE) resistance or line (L-N) resistance, respectively.
Voltage drop (by line impedance test)
Range
Resolution
Accuracy
0.0-99.9%
0.1%
Consider accuracy of line
impedance measurement(s)
Note: Voltage drop reading is calculated from line impedance measurement & entered current rating
RCD tests, RCD types tested
RCD Type[1]
1672
1673 FC
1674 FC
AC[2]
G[3]
•
•
•
AC
S[4]
•
•
•
A[5], F[6]
G
•
•
•
A, F
S
•
•
•
B, B+[7]
G
•
•
B, B+
S
•
•
RDC-DD, RCD A/EV, RCD B/Mi[8]
•
•
GFCI
•
•
•
RCD test inhibited for V > 265 AC
RCD tests permitted only if the selected current, multiplied by earthing resistance, is < 50 V.
AC – Responds to AC
G – General, no delay
S – Time delay
A – Responds to AC and pulsed signal
F – responds to AC, pulsed and high frequency
B, B+ – Responds to AC, pulsed, high frequency, and smooth DC
RDC-DD – Responds to residual currents of 6 mA DC
RCD tripping time test (ΔT)
Test Function
RCD Current Selection
10 mA
30 mA
100 mA[1]
300 mA[1]
500 mA[1]
1000 mA[2]
Var[3]
x½, 1
•
•
•
•
•
•
•
x5
•
•
•
Ramp
•
•
•
•
•
•
•
Auto
•
•
•
Mains voltage 50 V – 265 V ac, 45/66 Hz
Type B RCDs require mains voltage range of 195 V to 265 V.
Type AC RCDs only.
Type A RCDs are limited to 700 mA, not available for Type B RCDs.
RCD Tripping Current (IΔN) Measurement/Ramp Test
Current Range
Step Size
Dwell Time
Measurement Accuracy
Type G
Type S
30 % to 110 % of RCD-rated current[1]
10 % of IΔN[2]
300 ms/step
500 ms/step
± 5 %
1. Specified trip current ranges (IEC 61008-1):
30 % to 150 % for Type A IΔ N > 10 mA
30 % to 210 % for Type A IΔ N = 10 mA
20 % to 210 % for Type B
50 % to 100 % for Type AC
35 % to 140 % for Type A (> 10 mA)
35 % to 200 % for Type A (£ 10 mA)
50 % to 200 % for Type B2. 5 % for Type B
Earth resistance test (RE) 1673 FC and 1674 FC only
Range
Resolution
Frequency
Output Voltage
200 Ω/2000 Ω
0.1 Ω/1 Ω
128 Hz
25 V
Phase sequence indication
Icon
Range
Display
Phase Sequence indicator is active
185 V to 600 V
“1-2-3”: or “3-2-1” for incorrect phase
Models
Fluke 1670 Series Multifunction Installation Testers
Fluke 1674 FC -Fluke 1674 FC Multifunction Installation Tester

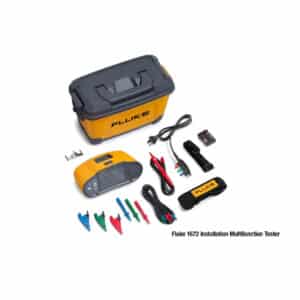

Fluke 1672 AUS (FLK-1672) – Fluke 1672 AUS Multifunction Installation Tester
Fluke 1673 FC AUS (FLK-1673 FC) – Fluke 1673 FC AUS Multifunction Installation Tester
Fluke 1674 FC AUS (FLK-1674 FC) – Fluke 1674 FC AUS Multifunction Installation Tester
Fluke 1673 FC FTT – Fluke 1673 FC FTT Multifunction Installation Tester with TruTest Software Bundle

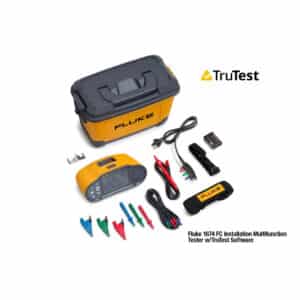

Fluke 1674 FC FTT – Fluke 1674 FC FTT Multifunction Installation Tester with TruTest Software Bundle
1673 FC AUS FTT (FLK-1673 FC-Trutest) – Fluke 1673 FC AUS FTT Multifunction Installation Tester with TruTest Software Bundle
Fluke 1674 FC AUS FTT (FLK-1674 FC-Trutest) – Fluke 1674 FC AUS FTT Multifunction Installation Tester with TruTest Software Bundle
Fluke 1674 FC 1630 – Fluke 1674 FC 1630 Multifunction Installation Tester with Earth Ground Clamp Bundle
Fluke 1674 FC AUS/1630 (FLK-1674 FC-1630-2-Trutest) – Fluke 1674 FC AUS/1630 Multifunction Installation Tester with Earth Ground Clamp Bundle
Fluke 1674 FC 1630/FTT – Fluke 1674 FC 1630/FTT Multifunction Installation Tester with Earth Ground Clamp and Fluke TruTest Software Bundle
