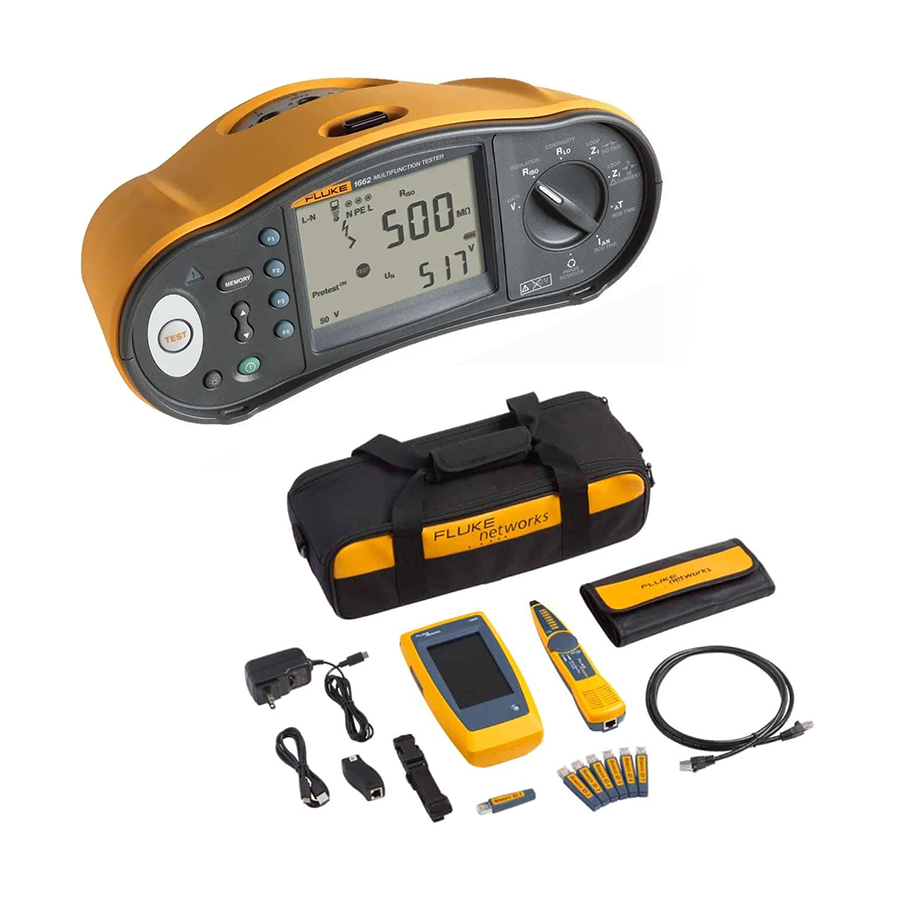

Fluke 1662 + Fluke LIQ-KIT

FLUKE 1662 Multifunction Installation Tester

The Fluke 1662 Multifunction Installation Safety Tester is a solid, reliable multifunction tester that has everything the user might need for day to day installation inspections.

The 1662 can measure multiple variables including True RMS AC voltage, insulation resistance, loop and line impedance, prospective earth fault current, RCD tripping speed, and RCD/FI current. Tests can also be carried out for continuity, ramp test, and RCD triggers whilst indications are also given for has sequence. There is a wide degree of flexibility with each test with choices of range, resolution and test-type for the majority of different values so the tester can be adapted to meet various requirements.

The user also benefits from several other features in addition to the Fluke 1662’s measurement functions. Auto-start can be engaged for RCD and loop testing whilst a wiring polarity checker scans for broken PE and N wires. The self-test function helps ensure that readings are always accurate and the user can always check the instrument against the values given in the supplied calibration certificate. The device is operated via a simple dial and results are shown on the large, bright LCD screen.

The Fluke 1662 comes provided with a comprehensive set of accessories including a hard carry case, test leads, a zero adapter, a user manual/CD, a mains cord, a padded neck strap, a remote probe, a fused test probe set, and a calibration certificate in addition to the instrument itself. With an IP40 seal rating and Cat III 500V over voltage safety categorization, the user can have confidence in this sturdy, portable multifunction tester which meets all relevant legal standards.

FLUKE 1662 Features

• • Measures RCD switching time and tripping level (ramp test)
  • Measures trip time and current for RCD type A & AC in one test
  • Measures RCD variable current
  • Provides automatic RCD test sequence
  • Includes Z-max memory for loop tests to support easy evaluation of the highest loop test value
  • Provides unique zero adapter for fast, reliable and accurate test lead and mains cord compensation
  • Includes a phase sequence indicator
  • Comes with hard carrying case, padded carrying and waist strap, and remote control probe and lead

The Fluke Networks LinkIQ™ Cable+Network Tester Advanced Kit is designed to help professionals swiftly identify and resolve network connectivity issues while validating cable performance up to 10GBASE-T. Whether you are an IT technician, network installer, or maintenance engineer, this advanced tester kit provides a comprehensive solution to ensure optimal network performance. Invest in the LinkIQ™ Cable+Network Tester and deliver seamless connectivity across your network infrastructure.

Key Features

• High-Speed Cable Performance Validation: Validate cable performance up to 10GBASE-T using frequency-based measurements.
• Switch Diagnostics: Gain insights into connected switch data rates, switch names, IP addresses, port numbers, and VLANs.
• PoE Testing: Detect PoE class (1-8) and power, perform a load test up to Class 8 (90W), and ensure reliable multivendor interoperability with Ethernet Alliance PoE Certification.
• Network Connectivity Tests: Perform ping tests to verify connectivity and assess the nearest switch diagnostics.
• Comprehensive Cable Diagnostics: Conduct cable diagnostics, including length measurements and IntelliTone™ technology, with remotes 2-8.
• Result Management: Manage and print detailed reports from LinkWare™ PC software for optimal results tracking and documentation.

What’s Included

• LinkIQ™ Main Unit
• Remote ID #1-7
• RJ45-RJ45 Patch Cord
• AC Charger
• RJ45/11 Universal Coupler
• IntelliTone™ Pro 200 Probe
• Duffel Bag Carrying Case

Detailed Description

The LinkIQ™ Cable+Network Tester Advanced Kit is engineered to meet the demands of modern network environments. Validate the maximum bandwidth from 10BASE-T to 10GBASE-T and ensure that all tested links meet stringent performance requirements. This feature ensures that your infrastructure is prepared for high-speed data transfer, making it future-proof and reliable for business operations.

Beyond cable performance validation, the LinkIQ™ Cable+Network Tester excels in its diagnostic capabilities. It performs ping tests to verify connectivity and provides vital switch information such as advertised data rates, switch names, IP addresses, port numbers, and VLAN details. This information is invaluable for network troubleshooting and maintenance, allowing for quick identification of network issues.

PoE testing is another standout feature. With the ability to detect PoE classes (1-8) and perform load tests up to Class 8 (90W), the LinkIQ™ ensures that your power-over-Ethernet infrastructure is operating efficiently and safely. The Ethernet Alliance PoE Certification guarantees reliable multivendor interoperability, making it a versatile tool for various network setups.

The kit also includes additional practical features such as Cable Toning and Port Blink, which streamline the process of locating and identifying network cables. The remote office locators and IntelliTone™ Pro 200 Probe further enhance its versatility, making it a must-have for professionals dealing with complex network environments.
