Fluke 393 FC CAT III 1500 V True-rms Clamp Meter with mobile phone

Fluke 393 FC CAT III 1500 V True-rms Clamp Meter

Fluke 393 FC CAT III 1500 V True-rms Clamp Meter set

Fluke 393 FC CAT III 1500 V True-rms Clamp Meter in use

Fluke 283 FC TRMS Wireless Digital Multimeter & a283 FC 60A TRMS Wireless AC/DC Current Clamp | Solar Installation & Electrical System Troubleshooting Tool with Fluke Connect™ and Fluke Cloud™ Storage

Name: Fluke 283 FC TRMS Wireless Digital Multimeter & a283 FC 60A TRMS Wireless AC/DC Current Clamp | Solar Installation & Electrical System Troubleshooting Tool with Fluke Connect™ and Fluke Cloud™ Storage
Brand: FLUKE
SKU: 5274864
Availability: InStock

Fluke Sale - Save Up to 25%

Original price was: $1,401.00.Current price is: $1,190.85. .( $1,309.94 inc. GST )

Product successfully added to the Quote List

For all your equipment calibration needs, visit our MyCalibration website.

Free Delivery on orders over $1000
Shipping time may vary for certain products*

Fluke's New Year New Gear 2025 Promotion

Explore Our Fluke Redemption Offers >>

Click here to Make an Enquiry

Product Enquiry

If you would like more information regarding this product, simply email us here.

This 393 FC is ideal for technicians who work in DC environments, such as solar farms, wind power turbines, electric railways, and data centers with battery banks that provide uninterruptible power.

Key features:

Measure safely with CAT III 1500 V rated clamp meter
Thin jaw for access to cables in crowded combiner boxes
Sturdy IP54 rated for outdoor use
Ideal for use on Large Scale Solar farms and wind power systems
Work efficiently with dc power measurement, audio polarity and visual continuity

PDF Datasheet Fluke 393 FC Datasheet

SKU: 5274864 Categories: Clampmeter, FLUKE Tags: Fluke 393 FC CAT III 1500 V, True-rms Clamp Meter

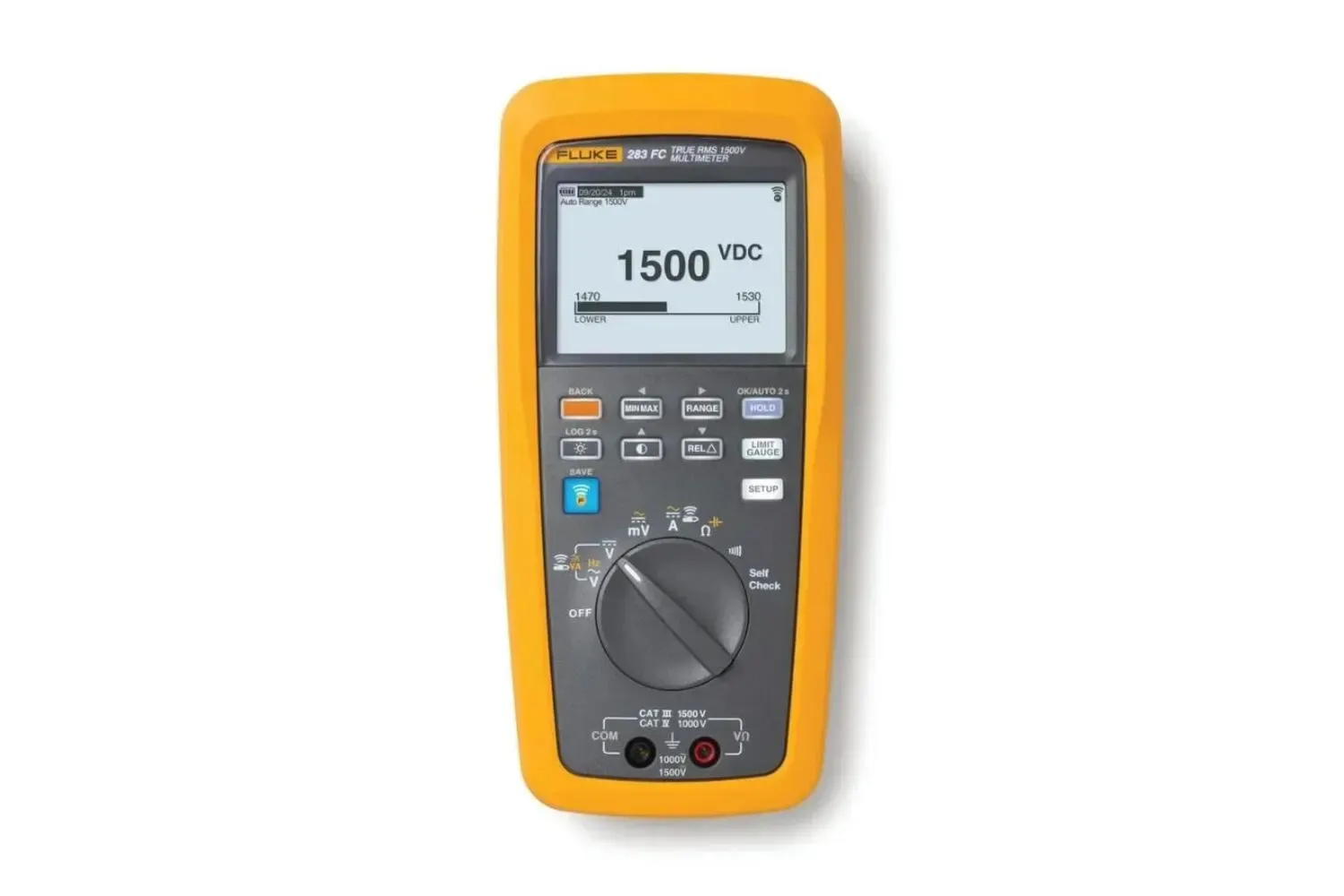

Fluke 283 FC TRMS Wireless Digital Multimeter with a283 FC 60A TRMS Wireless AC/DC Current Clamp

Unlock the full potential of your solar installations and electrical systems with the Fluke 283 FC TRMS Wireless Digital Multimeter paired with the a283 FC 60A TRMS Wireless AC/DC Current Clamp. Designed for precision, efficiency, and safety, this measurement system offers unparalleled performance for professionals in the solar, electrical, and industrial sectors.

Key Features

Adjustable Limit Gauge: Save time and enhance confidence in your system’s performance with audio and visual alerts for measurements falling outside your expected range. Easily turn the gauge warnings on or off with the dedicated limit gauge button, set up new measurement parameters, or select from previously used profiles. Streamline troubleshooting with rapid identification of measurement deviations.
Unique Multimeter Readiness Self-Check: Ensure your meter is fully functional before taking readings. This integrated self-check feature provides valuable insights on calibration status, battery life, test lead functionality, and AC/DC voltage measurement, ensuring your meter is ready to work every time.

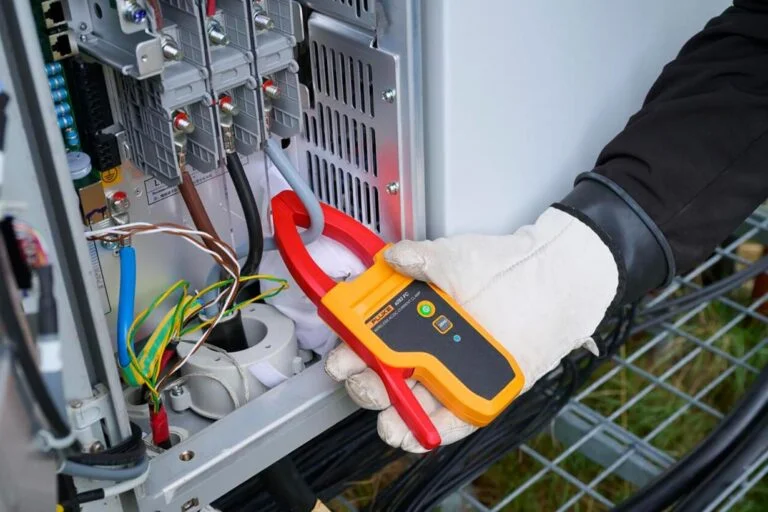

Wireless Current Clamp: Simplify troubleshooting with the a283 FC True-RMS wireless current clamp. Measure AC and DC current up to 60 A safely and reliably from a distance. The non-contact design and thin jaw allow easy access to combiner boxes and tight spaces. Certified with CAT III 1500 V and CAT IV 1000 V safety ratings, this clamp enhances both safety and efficiency.
Simultaneous Voltage and Current Measurement: Capture voltage and current concurrently and automatically calculate VA power, eliminating manual calculations and setup changes. Time-stamped measurements ensure accuracy, providing a comprehensive view of system performance.
Logging and Saving: With built-in real-time clock and internal memory, the 283 FC enables time- and date-stamped measurements, ensuring accurate recordkeeping. Customizable logging durations and intervals match your system testing needs, simplifying data management.
Fluke Connect™ with Fluke Cloud™ Storage: Enhance your troubleshooting experience with Fluke Connect™. Transmit measurements to your smartphone or tablet for detailed analysis, live monitoring, and real-time collaboration via ShareLive™ video calls or email. Organize and reference data effortlessly using the table view feature, streamline your workflow, and ensure precise data storage.

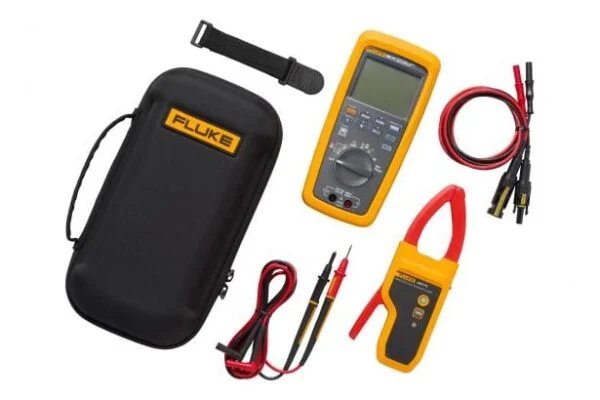

What’s in the box:

Fluke 283 FC TRMS Wireless Digital Multimeter
a283 FC 60A TRMS Wireless AC/DC Current Clamp
Solar MC4 Test Lead Set
TL175-HV TwistGuard™ Silicone Test Leads
Premium Carrying Case
Magnetic Hanging Strap
Limited Lifetime Warranty on the Multimeter
1-Year Warranty on the Clamp

Benefits for Professionals

Enhanced Precision and Efficiency: The advanced features of the 283 FC and a283 FC provide exact measurements and facilitate efficient data management, crucial for maintaining optimal performance in solar and electrical systems.
Improved Safety: The wireless, non-contact design of the current clamp and robust safety ratings ensure safe operation even in high-voltage environments.
Data Integrity and Collaboration: Fluke Connect™ and Fluke Cloud™ applications enable easy data transfer, powerful analysis, and seamless collaboration, helping you make informed decisions based on reliable data.

Applications

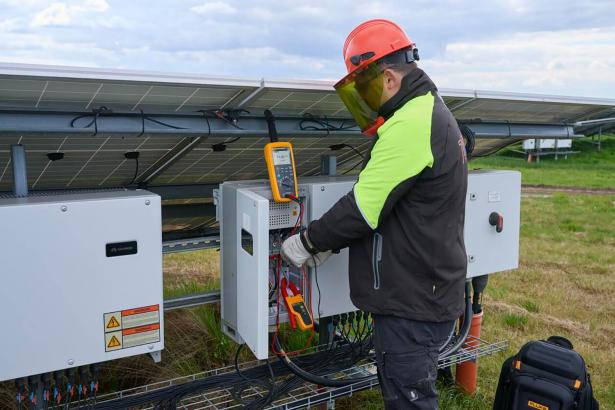

Ideal for solar installations, electrical systems, and industrial equipment troubleshooting, the Fluke 283 FC TRMS Wireless Digital Multimeter and a283 FC Wireless AC/DC Current Clamp are essential tools for electrical engineers, solar installers, and industrial maintenance technicians.

Equip yourself with the Fluke 283 FC and a283 FC for reliable, accurate, and efficient measurements in every professional application. Experience the confidence of superior performance and unmatched precision with Fluke.

Weight	0.6 kg

Specifications

Fluke 393 FC CAT III 1500 V True-rms Clamp Meter with iFlex

Specifications:
General
Maximum voltage between any Terminal and Earth Ground
AC	1000 V
DC	1500 V
Batteries	2 AA IEC LR6 alkaline
Display	Dual display with backlight
Automatic Power Off	20 minutes
Electrical
Accuracy
Accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, relative humidity at 0 % to 75 %. Accuracy specifications take the form of: ±([% of Reading] + [Number of Least Significant Digits]).
Temperature Coefficients	Add 0.1 x specified accuracy for each °C > 28 °C or < 18 °C
AC Current: Jaw
Range	999.9 A
Resolution	0.1 A
Accuracy	2 % + 5 digits (10 Hz to 100 Hz)
	2.5 % + 5 digits (100 Hz to 500 Hz)
Crest Factor (50/60 Hz)	2.5 @600.0 A
	3.0 @500.0 A
	1.42 @999.9 A
	Add 2 % for C.F. >2
AC Current: Flexible Current Probe
Range	999.9 A
	2500 A
Resolution	0.1 A (≤999.9 A)
	1 A (≤2500 A)
Accuracy	3 % RD + 5 digits (10 Hz to 500 Hz)
Crest Factor (50/60Hz)	2.5 @1400 A
	3.0 @1100 A
	1.42@2500 A
	Add 2 % for C.F. >2
Position Sensitivity

Distance from Optimum	i2500-10 Flex	i2500-18 Flex	Error
A	0.5 in (12.7 mm)	1.4 in (35.6 mm)	±0.5 %
B	0.8 in (20.3 mm)	2.0 in (50.8 mm)	±1.0 %
C	1.4 in (35.6 mm)	2.5 in (63.5 mm)	±2.0 %
Measurement uncertainty assumes centralized primary conductor at optimum position, no external electrical or magnetic field, and within operating temperature range.

DC Current
Range	999.9 A
Resolution	0.1 A
Accuracy	2 % RD + 5 digits^[1]
	^[1] When using the ZERO (B) function to compensate for offsets.
AC Voltage
Range	600.0 V
	1000 V
Resolution	0.1 V (≤600.0 V)
	1 V (≤1000 V)
Accuracy	1 % RD + 5 digits (20 Hz to 500 Hz)
DC Voltage
Range	600.0 V
	1500 V
Resolution	0.1 V (≤600.0 V)
	1 V (≤1500 V)
Accuracy	1 % RD + 5 digits
mV dc
Range	500.0 mV
Resolution	0.1 mV
Accuracy	1 % RD + 5 digits
Amps Frequency: Jaw
Range	5.0 Hz to 500.0 Hz
Resolution	0.1 Hz
Accuracy	0.5 % RD + 5 digits
Trigger Level	5 Hz to 10 Hz, ≥10 A
	10 Hz to 100 Hz, ≥5 A
	100 Hz to 500 Hz, ≥10 A
Amps Frequency: Flexible Current Probe
Range	5.0 Hz to 500.0 Hz
Resolution	0.1 Hz
Accuracy	0.5 % RD + 5 digits
Trigger Level	5 Hz to 20 Hz, ≥25 A
	20 Hz to 100 Hz, ≥20 A
	100 Hz to 500 Hz, ≥25 A
Voltage Frequency
Range	5.0 Hz to 500.0 Hz
Resolution	0.1 Hz
Accuracy	0.5 % RD + 5 digits
Trigger Level	5 Hz to 20 Hz, ≥5 V
	20 Hz to 100 Hz, ≥5 V
	100 Hz to 500 Hz, ≥10 V
DC Power
Range	600.0 kVA (600.0 V dc range)
	1500 kVA (1500 V dc range)
Resolution	0.1 kVA
	1 kVA
Accuracy	2 % RD + 2.0 kVA
	2 % RD + 20 kVA
Resistance
Range	600.0 Ω
	6000 Ω
	60.00 kΩ
Resolution	0.1 Ω (≤600.0 Ω)
	1 Ω (≤6000 Ω)
	0.01 kΩ (≤60.00 kΩ)
Accuracy	1 % RD + 5 digits
Capacitance
Range	100.0 μF
	1000 μF
Resolution	0.1 μF (≤100.0 μF)
	1 μF (≤1000 μF)
Accuracy	1 % RD + 5 digits
Inrush Trigger Level	5 A
Mechanical
Size (L x W x H)	281 mm x 84 mm x 49 mm
Weight (with batteries)	520 g
Jaw Opening	34 mm
Flexible Current Probe Diameter	7.5 mm
Flexible Current Probe Cable Length
(head to electronics connector)	1.8 m
Environmental
Operating Temperature	-10 °C to 50 °C
Storage Temperature	-40 °C to 60 °C
Operating Humidity	Non condensing (<10°C)
	≤90 % RH (at 10 °C to 30 °C)
	≤75 % RH (at 30 °C to 40 °C)
	≤45 % RH (at 40 °C to 50 °C)
Operating Altitude	2000 m
Storage Altitude	12 000 m
Ingress Protection (IP) Rating	IEC 60529: IP54 non-operating
Electromagnetic Compatibility (EMC)
International	IEC 61326-1: Portable, Electromagnetic Environment, IEC 61326-2-2 CISPR 11: Group 1, Class A
	Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself.
Class A: Equipment is suitable for use in all establishments other than domestic and those directly connected to a low-voltage power supply network that supplies buildings used for domestic purposes. There may be potential difficulties in ensuring electromagnetic compatibility in other environments due to conducted and radiated disturbances.
Caution: This equipment is not intended for use in residential environments and may not provide adequate protection to radio reception in such environments.
Korea (KCC)	Class A equipment (Industrial Broadcast & Communications Equipment)
	Class A: Equipment meets requirements for industrial electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and not to be used in homes.
USA (FCC)	47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.
Safety
General	IEC 61010-1, Pollution Degree 2
Measurement	IEC 61010-2-032: CAT III 1500 V / CAT IV 600 V
	IEC 61010-2-033: CAT III 1500 V / CAT IV 600 V
Wireless Radio
Radio frequency certification	FCC ID: T68-FBLE, IC: 6627A-FBLE
Wireless Radio Frequency Range	2400 MHz to 2483.5 MHz
Output Power	<100 mW
SIMPLIFIED EU DECLARATION OF CONFORMITY
Hereby, Fluke declares that the radio equipment contained in this Product is in compliance with Directive 2014/53/EU.
The full text of the EU declaration is available at the following Internet address:
www.fluke.com/en-us/declaration-of-conformity
