    The REED R7000SD Data Logging Vibration Meter is a powerful tool for measuring and recording vibration levels in machinery. With its real-time data logger and integrated SD memory card, the R7000SD is able to capture velocity and acceleration data to help you assess the condition of your equipment. This valuable information can then be used to take corrective action to prevent potential problems down the road. Whether you’re a factory manager, maintenance engineer, or just someone who wants to keep their machinery running smoothly, the REED R7000SD Data Logging Vibration Meter is an essential piece of equipment.

    Authorised Australian Distributor.

    PDF download  R7000sd Datasheet



    SKU: R7000SD Categories: , Tags: , ,

    The REED R7000SD is a reliable and easy-to-use data logging vibration meter that is perfect for industrial applications. This meter features RMS, peak hold, data hold, max/min functions, and an easy-to-read backlit LCD display. You can use a SD card (max 16GB) to manually record up to 99 readings, or you can select a desired sampling rate from 1 to 3600 seconds for automatic recording.
    The R7000SD also allows you to quickly generate an Excel file with raw data, without the need for any software. Optional accessories include a tripod and AC adapter for continuous long-term monitoring. With its ISO2954 standards compliance and versatile functionality, the REED R7000SD Data Logging Vibration Meter is an essential piece of equipment.

    Features

    • Measures velocity and acceleration to determine vibration level
    • User selectable unit of measure (metric or imperial)
    • RMS, Peak hold, Data hold and Max/Min functions
    • 10Hz to 1kHz frequency range
    • Basic accuracy of ±5%

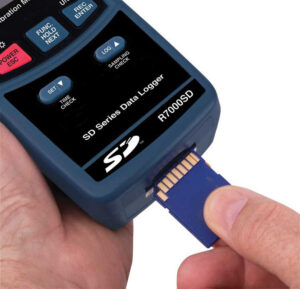

    • Real-time data logger with integrated SD memory card
    • User selectable sampling rate from 1 to 3600 seconds
    • Easy-to-read backlit LCD display
    • Tripod mount for long-term monitoring
    • Meets ISO 2954 standards
    • Low battery indicator and auto shut off



    Weight 2 kg

    Specifications

    Acceleration
    Measuring Ranges 0.5 to 199.9m/s2
    0.05 to 20.39g
    2 to 656ft/s2
    Accuracy ±(5% + 5 dgt)
    Resolution 0.1m/s2
    0.01g
    1ft/s2
    Velocity
    Measuring Ranges 0.5 to 199.9mm/s
    0.05 to 19.99cm/s
    0.02 to 7.87in/s
    Accuracy ±(5% + 5 dgt)
    Resolution 0.1mm/s
    0.01cm/s
    0.01in/s
    General Specifications
    Response Time 1 second
    Frequency Range 10Hz to 1KHz
    Display 4-digit dual LCD
    Backlit Display Yes
    RMS, Peak and Max Hold Measurements Yes
    Data Hold Yes
    Min Yes
    Max Yes
    Zero Adjustment Yes
    Datalogging Capabilities Yes
    Real-Time Clock and Date Stamp Yes
    Selectable Sampling Rate Yes (1, 2, 5, 10, 30, 60, 120, 300, 600, 1800, 3600 seconds)
    External Memory Yes, expandable up to 16GB with SD card (optional)
    Auto Shut-off Yes (after 10 minutes/off)
    Kick Stand Yes
    Tripod Mountable Yes
    Low Battery Indicator Yes
    Probe Cable Length 47.2″ (1.2m)
    Power Supply 6 x AA Batteries or AC Adapter (optional)
    Data Output Yes (RS-232)
    Product Certifications CE
    Operating Temperature 32 to 122°F (0 to 50°C)
    Storage Temperature 14 to 140°F (-10 to 60°C)
    Operating Humidity Range 10 to 85%
    Dimensions Instrument: 9.7 x 2.7 x 1.8″ (203 x 76 x 38mm)
    Probe: 1.5 x 0.6″ (37 x 16mm)
    Weight Instrument: 17.3oz (515g)
    Probe: 3.5oz (99g)
