Non-contact/Contact Tachometer | Tenmars TM-4100

AUD $380.00 • ( AUD $418.00 inc. GST )

Free Delivery on orders over $500
Shipping time may vary for certain products*

  • Fast Delivery*
  • Technical Support
  • Product Training
  • Calibration Services*
  • Lowest Price Guaranteed
Click here to Make an Enquiry

Product Enquiry

If you would like more information regarding this product, simply email us here.
  • Drop files here or
    Accepted file types: jpg, gif, png, pdf, Max. file size: 1 MB, Max. files: 4.
    • This field is for validation purposes and should be left unchanged.

    • Large 6-digit LCD display with backlight.
    • Measurement distance 40mm to 500mm.
    • Measuring by the output of red visible-spectrum light.
    • 200 data sets of memory.
    • Auto ranging.
    • Average measurements.
    • Min/Max and Hold functions.
    • Auto Power off.
    • Supplied with: contact Adaptors, battery (installed), reflective tape, carrying case.

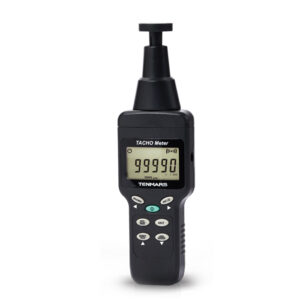

    TM-4100 Tacho Meter (includes contact Adaptors) can be used for various types of equipment such as conveyors, cooling equipment, dryers, elevators, windmills, rotary feeders and grinders. It is available for contact (with 4100K tool kit) and non-contact applications. The non-contact can measure from up to 500mm.

    Specifications
    General Specification TM-4100 TM-4100D (Datalogger)
    Display 6-digit backlit Liquid Crystal Display
    Range Switching Automatic
    Detection Distance Non-contact, 40mm to 500mm
    Measurement Method Output the red visible-spectrum light containing signal to the tape or plate and receiving the signal from the reflective light.
    Measuring Indicator The LCD displays “RING” with a buzzer sound (or off)
    Resolution Over 10,000 count, AVG “ON” ±2 digits; AVG “OFF” ±20 digits
    Sampling Rate 0.5 to 10 times/second
    Operating Temperature/Humidity 0°C to 40°C; 25% to 75% R.H.
    Storage Temperature/Humidity -10°C to 60°C; 0% to 80% R.H.
    Memory Capacity 200 data sets 200 data sets in memory and as a USB datalogger; 30,000 data sets
    Power Supply 9-volt battery
    Maximum Rated Power 0.5VA
    Battery Life approx 30 hours (buzzer off)
    Dimensions 186mm (L) x 76mm (W) x 36mm (D)
    Weight approx 200g
    Rotation Speed Measurement
    Mode

    Range

    Contactless Measurement Contact Measurement
    AVG = ON AVG = OFF AVG = ON AVG = OFF
    Rotation Speed
    Measurement (r/m)
    1 30.00 to 199.9

    15.00 to 199.9

    2 200.0 to 1999.9 300.0 to 1999.0 200.0 to 1999.9 150.0 to 1999.0
    3 2000 to 19999 2000 to 19990 2000 to 19999 2000 to 19990
    4 20000 to 99990 20000 to 99990
    Rotational Speed
    Measurement (r/s)
    1 0.5000 to 1.9999

    0.2500 to 1.9999

    2 2.000 to 19.999 5.000 to 19.990 2.000 to 19.999 2.500 to 19.990
    3 20.00 to 199.99 20.00 to 199.90 20.00 to 199.99 20.00 to 199.90
    4 200.0 to 1600.0 200.0 to 1600.0 200.0 to 333.0 200.0 to 333.0
    Period
    Measurement (ms)
    1 0.6000 to 1.9999 0.6000 to 1.9990
    2 2.000 to 19.999 2.000 to 19.990 3.000 to 19.999 3.000 to 19.990
    3 20.00 to 199.99 20.00 to 199.90 20.00 to 199.99 20.00 to 199.90
    4 200.0 to 1999.9

    200.0 to 3999.9 200 to 3999.0
    Count Measurement 0 to 999999 (Input conditions Up to rotational speed measurement upper limit)
    Circumferential Speed Measurement
    Mode Range Contact Measurement
    AVG = ON AVG = OFF
    Measurement (m/min 1 1.500 to 19.999

    2 20.00 to 199.9 15.00 to 199.90
    3 200.0 to 1999.9 200.0 to 1999.0
    Measurement (m/s) 1 0.0250 to 1.9999 0.0250 to 1.9990
    2 2.000 to 19.999 2.000 to 19.990
    3 20.00 to 33.30 20.00 to 33.30
    Accuracy
    Range AVG = ON AVG = OFF
    Up to 9,999 counts ±1 digit ±10 digits
    10,000 counts or more ±2 digits ±20 digits
    20,000 counts or more (r/min only) ±20 digits ±100 digits
    Period Measurement only ±0.5% of reading is added to above
    Ordering Information
    Model Name Description
    Tenmars TM-4100 Tachometer
    Included accessories: Battery (installed), reflective tape, and carrying case,
    Tenmars TM-4100D Tachometer
    Included accessories: Battery (installed), reflective tape, carrying case, and USB cable.
