    FLIR ONE® Pro for Android (Micro-USB) Connector

    FLIR ONE Pro™ provides thermal images of very small temperature differences. This gives the user the power to see in the dark, see through light fog and smoke, observe invisible heat sources, compare relative temperatures and measure spot temperatures.

       FLIR ONE Pro Datasheet

        FLIR ONE Pro Quick Start Guide

        FLIR-ONE-Pro-User-Guide-3rd-Gen



    SKU: Flir one pro MICRO-USB Categories: , Tag:

    The FLIR One Pro gives the users the power to see in the dark, see through light fog and smoke, observe invisible heat sources, compare relative temperatures and measure spot temperatures.
    FLIR ONE Pro App provides a simple and intuitive user interface with various functions making it easier to collect and share useful thermal images. It can load captured images directly to the camera roll and allows operators to easily share.



    The FLIR One Pro Features and Benefits:

    • MSX™ (adds visible spectrum detail to thermal images and enhances resolution)
    • Rugged Design
    • OneFit™ Adjustable Connector
    • VividIR™ Advanced Image Processing
    • Higher Resolution Thermal Sensor
    • Advanced Diagnostics
    • One-Touch Reporting
    • Enhanced FLIR ONE App
    • Visible Only
    • Video, Photo, Time-Lapse
    • Swipe To See Visible Image
    • Thermal Colour Palettes: 9
    • High / Low Gain Mode
    • IR Scale (Displayed on image, adjustable range)
    • Spot Meters (max.): 3 (movable)
    • Rectangular Region of Interest (max.): 3 (movable)
    • Circular Region of Interest (max.): 3 (movable)
    • Timer
    • Manual Flat Field Correction
    • Emissivity Settings: 4
    • Mechanical Shock Drop from 1.8 metre
    • Easy sharing (Twitter, Facebook, Instagram, e-mail, SMS)
    • Battery life 1 hour
    • Battery charge time 40 min

    Note: The phone is not included.

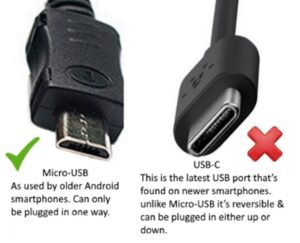

    Android Device Compatibility

    To be compatible with FLIR ONE Pro – Micro USB, the mobile device must have a Micro-USB connector.



    Temperature Measurement Range -20 to +400 °C,
    Thermal Sensitivity 150mK
    Field of View H x V 55 x 43°
    Best Temperature Measurement Accuracy ±3 °C
    Maximum Temperature Measurement +400 °C
    Image Enhancement MSX
    Refresh Rate 8.7Hz
    Minimum Focus Distance 150mm
    Focus Type Automatic, Manual
    Detector Resolution 160 x 120 pixel
    Visual Camera Yes
    Accuracy ±5 %
    IR/Visual Image Combination MSX
    Minimum Focus 150 mm
    Interface Type  Micro-USB
    Display Resolution 1440 x 1080 pixel
    Application Electrical Issues, Home & Building Inspection, HVAC & Plumbing
    Radiometric Video on Camera Yes
    Other Built-in Measurements Distance
    Auto Capture on Camera Yes
    Field of View 55 x 43°
    Dimensions L x W x D 67 x 34 x 14 mm
    Weight 36.5g
    Vertical Field of View 43°
    Length 67mm
    Horizontal Field of View 55°
    Horizontal Display Resolution 1440 pixel
    Vertical Display Resolution 1080 pixel
    Width 34 mm
    Dimensions 67 x 34 x 14 mm
    Height 14 mm
    Horizontal Detector Resolution 160 pixel
    Vertical Detector Resolution 120 pixel
    Weight .25 kg
