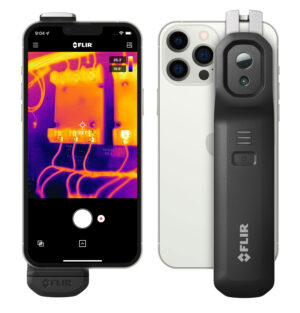

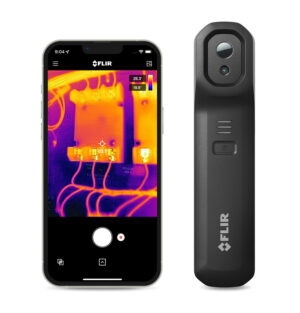

The FLIR ONE Edge Pro is a powerful thermal camera that wirelessly connects to your iOS® or Android™ smart device. With VividIR™ and FLIR MSX® technology, you can take clear, crisp thermal images from any position or angle. And with FLIR Ignite™, you can easily upload images and videos to the cloud for storage and sharing. The FLIR ONE Edge Pro is the perfect tool for inspecting hard-to-reach targets, with no limitations on carrier, operating system, or future smart device upgrades.
FLIR ONE Edge Pro Datasheet
Keeping a watchful eye on equipment and systems is vital to keeping them running smoothly and avoiding costly downtime. But sometimes, the target you need to inspect is out of reach or difficult to access. That’s where the FLIR ONE Edge Pro comes in. This innovative thermal camera wirelessly connects to your smart device, so you can easily take crisp, clear images from any position or angle.
The FLIR ONE Edge Pro uses 160 × 120 (19,200 pixels) thermal resolution and VividIR™, FLIR MSX® (Multi-Spectral Dynamic Imaging) technology to produce high-quality thermal images. This allows you to see temperature differences and subtle details that would be invisible to the naked eye. And with FLIR Ignite™, you can instantly upload images and videos from your FLIR ONE Edge Pro to the cloud for easy sharing and editing.
Compatible with iOS and Android smartphones and tablets, the FLIR ONE Edge Pro is an incredibly versatile tool that will help you keep a close eye on your critical equipment. Whether you’re in preventative maintenance or troubleshooting mode, the FLIR ONE Edge Pro is an invaluable tool for maintaining optimal operations.
Ordering guide
| 11002-0201 | FLIR ONE EDGE Pro | FLIR ONE EDGE IR Camera for Mobile Devices | Phone not included |
| T912180 | FLIR ONE EDGE Pouch | Pouch for FLIR ONE Edge IR Camera | Sold Separately |
KEY DIFFERENTIATED FEATURES
- WIRELESS IMAGE TRANSFER
- Wireless streaming of images to the smart phone or tablet
- Camera compatible with all phones and tablets with iOS or Android
- Enables easier scaling of tool to hundreds or thousands of technicians
- Futureproof against phone or tablet changes
- DETACHABLE WAND DESIGN
- Unique, detachable wand design
- Enables easy scanning over, under and around obstacles
- Fits better on phone and tablets without blocking cameras or awkward holding of device
- UNIQUE DECISION SUPPORT APPS
- FLIR Tools Mobile with FLIR Ignite allows for automatic secure upload of image data and sharing to selected team members
- New Apps for Home Inspection, Automobile Inspection, and Industrial Inspection to support inexperienced thermographers to make good decisions
| Weight | 0.2 kg |
|---|
Specification
|
FLIR ONE Edge Pro |
|
|
Thermal pixel size |
12 µm |
|
Thermal resolution |
160 × 120 (19,200 pixels) |
|
Thermal sensitivity |
70 mK |
|
Measurement |
|
|
Object temperature range(s) |
-20°C to 120°C (-4°F to 248°F) 0°C to 400°C (32°F to 752°F) |
|
Operating temperature |
-10°C to 50°C (14°F to 122°F), battery charging 0°C to 45°C (32°F to 113°F) |
|
Accuracy |
±3°C (5.4°F) or ±5%. Applicable 60 sec after start-up when the unit is within 15°C to 35°C (59°F to 95°F) and the scene is within 5°C to 120°C (41°F to 248°F) |
|
Emissivity correction |
Matte, Semi-Matte, Semi-Glossy, Glossy |
|
Measurement correction |
Emissivity; Reflected apparent temperature (22°C / 72°F) |
|
Palette |
Gray (white hot), Hottest, Coldest, Iron, Contrast, Arctic, Lava and Color Wheel |
|
Shutter |
Automatic/Manual |
|
Optical data |
|
|
Spectral range |
8 µm – 14 µm |
|
Visual resolution |
640 × 480 |
|
HFOV / VFOV |
54° ±1° / 42° ±1° |
|
Frame rate |
8.7 Hz |
|
Focus |
Fixed 30 cm – infinity |
|
General features |
|
|
Certifications |
RoHS, CE/FCC, CEC-BC, EN62133, UL1642, WEEE 2012/19/EU |
|
Storage temperature |
-40°C to 70°C (-40°F to 158°F) |
|
Size (w × h × d) |
35 mm × 37.5 mm × 149 mm (1.4 in × 1.5 in × 5.9 in) |
|
Weight (incl. battery) |
153 g (5.4 oz) |
|
Drop tested |
Drop from 2 m (6.56 ft) |
|
Clip span |
130 mm (min) / 195 mm (max) |
|
Power |
|
|
Battery life |
Approximately 1 h 30 min |
|
Battery charge time |
60–90 min for fully charged. 15 min charging, from empty battery, gives 40 min operating time. |
|
Interfaces |
|
|
Wi-Fi |
802.11 a/ac/b/g/n (2.4 and 5 GHz) |
|
Bluetooth® |
Bluetooth |
|
Charging |
Female USB-C (5V/1A) |
|
Remote operation |
Up to 30 m (100 ft) from smart device via Wi-Fi |
|
App |
|
|
Image presentation modes |
Infrared, visual, MSX |
|
VividIR |
Yes |
|
Video and image capture |
Yes |
|
File formats |
Radiometric JPG, MPEG-4 [file format MOV (iOS), MP4 (Android)] |
|
Spot measurements |
Hottest, Coldest, and 3-spot measurement |
|
Adjustable MSX distance |
30 cm – infinity |
|
Visual battery indicator |
0% to 100% |
|
Radio |
|
|
Wi-Fi |
– 2401–2473 MHz – 5150–5250 MHz
|
|
Bluetooth |
– 2400–2484 MHz
|
|
Accessories |
FLIR ONE Edge Pouch, Ordering #T912180
