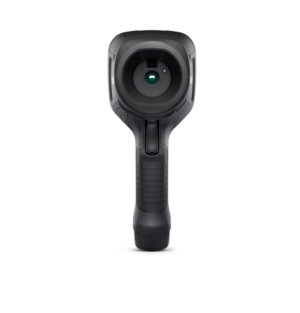

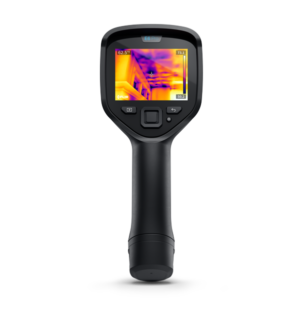

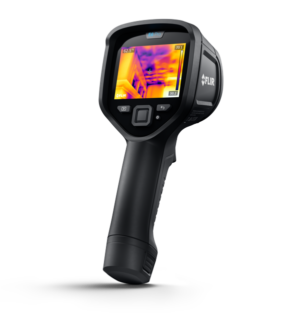

FLIR E6-XT Infrared Camera

AUD $3,100.00 • ( AUD $3,410.00 inc. GST )

Free Delivery on orders over $500
Shipping time may vary for certain products*

  • Fast Delivery*
  • Technical Support
  • Product Training
  • Calibration Services*
  • Lowest Price Guaranteed
Click here to Make an Enquiry

Product Enquiry

If you would like more information regarding this product, simply email us here.
  • Drop files here or
    Accepted file types: jpg, gif, png, pdf, Max. file size: 1 MB, Max. files: 4.
    • This field is for validation purposes and should be left unchanged.

    FLIR E6-XT is the perfect tool for diagnosing electrical, mechanical, and building problems, thanks to its 43,200 (240 × 180) pixel infrared detector and expanded, -20°C to 550°C temperature range.

    PDF Datasheet  Flir Ex-XT Series Datasheet



    FLIR E6-XT Infrared Camera with MSX & WI-FI – Affordable, Professional Thermal Imaging!

    FLIR MSX® image enhancement provides extraordinary thermal imaging detail, while the built-in Wi-Fi allows users to quickly connect with the FLIR Tools® Mobile app for sharing images and sending reports easily from any location.SIMPLE, INTUITIVE CONTROLSAutomatic and focus-free, with clear on-screen navigation to measurement tools and settingsSHARE IMAGES AND FINDINGS EASILYDownload standard JPEGS, create reports, and share what you’ve found via a Wi-Fi connection to the FLIR Tools Mobile appBUILT FOR YOUR TOUGH WORK ENVIRONMENTLightweight and well-balanced, the E6-XT has an IP54 enclosure and easily withstands a 2-meter drop test

    Weight 1.5 kg

    Specifications

    FLIR E6-XT Infrared Camera Specifications:

    Detector Type Uncooled microbolometer
    IR Resolution 240 × 180 pixels
    List of Contents •Infrared camera
    •Hard transport case
    •Battery (inside camera)
    •USB cable
    •Power supply/charger with EU, UK, US and Australian plugs
    •Printed documentation
    Packaging Size 385 × 165 × 315 mm (15.2 × 6.5 × 12.4 in)
    Set-up Commands
    Local adaptation of units, language, date and time formats
    Spectral Range 7.5–13 µm
    Compliance & Certifications
    Certifications UL, CSA, CE, PSE and CCC
    Connections & Communications
    AC Operation AC adapter, 90–260 VAC input, 5 VDC output to camera
    Interface USB Micro: Data transfer to and from PC and Mac device
    WiFi •Standard: 802.11 b/g/n
    •Frequency range: •2400–2480 MHz •5150–5260 MHz
    •Max. output power: 15 dBm
    Environmental
    EMC •WEEE 2012/19/EC
    •RoHs 2011/65/EC
    •C-Tick
    •EN 61000-6-3
    •EN 61000-6-2
    •FCC 47 CFR Part 15 Class B
    Humidity (Operating and Storage) IEC 60068-2-30/24 h 95% relative humidity
    Operating Temperature Range –15°C to 50°C (+5°F to 122°F)
    Radio Spectrum •Standard: 802.11 b/g/n
    •Frequency range: •2400–2480 MHz •5150–5260 MHz
    •Max. output power: 15 dBm
    Shock 25 g (IEC 60068-2-27)
    Storage Temperature Range –40°C to 70°C (–40°F to 158°F)
    Vibration 2 g (IEC 60068-2-6)
    Emissivity table/correction Emissivity table of predefined materials/variable from 0.1 to 1.0
    Encapsulation/Drop IP 54 (IEC 60529)/2m (6.6 ft.)
    Imaging & Optical
    Camera size (L x W x H) 244 × 95 × 140 mm (9.6 × 3.7 × 5.5 in)
    Camera weight incl battery 0.575 kg (1.27 lb.)
    Color Black and gray
    Color palettes Black & white, iron, and rainbow
    f-number 1.5
    Field of view (FOV) 45° × 34°
    Focus Focus free
    Image Adjustment Automatic adjust/lock image
    Image Frequency 9 Hz
    Image Modes Thermal MSX, Thermal, Picture-in-Picture, Thermal blending, Digital camera.
    Minimum Focus Distance 0.5 m (1.6 ft.)
    Multi Spectral Dynamic Imaging (MSX) IR image enhanced with visible camera detail
    Picture-in-Picture IR area on visual image
    Spatial resolution (IFOV) 3.4 mrad
    Digital Camera Resolution/FOV 640 × 480/55° × 43°
    Measurement & Analysis
    Accuracy ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)
    Isotherm Above alarm, below alarm
    Object Temperature Range –20°C to 550°C (-4°F to 1022°F) in two ranges
    Reflected apparent temperature correction Automatic, based on input of reflected temperature
    Spot Meter Center spot; box with min./max.
    Thermal Sensitivity/NETD <0.06°C (0.11°F) / <60 mK
    Spotmeter and Area Center spot; box with min./max.
    Meter Data
    Display 3.0 in. 320 × 240 color LCD
    Power
    Charging system Battery is charged inside the camera or in specific charger.
    Charging Time 2.5 hours to 90% capacity in camera. 2 hours in charger.
    Power Management Automatic shut-down
    Battery type & operating time Rechargeable 3.6 V Li ion battery; approx. 4 hours typical use
    Storage Media
    File Formats Standard JPEG, 14-bit measurement data included
