FLIR E4 Thermal Imaging Camera with MSX -| Discontinued

AUD $1,650.00 .( AUD $1,815.00 inc. GST )

Out of stock

For all your equipment calibration needs, visit our MyCalibration website.

Free Delivery on orders over $1000
Shipping time may vary for certain products*

Product Enquiry

If you would like more information regarding this product, simply email us here.

  • Drop files here or
    Accepted file types: jpg, gif, png, pdf, Max. file size: 1 MB, Max. files: 4.
    • This field is for validation purposes and should be left unchanged.

    The Flir E4 is now discontinued, replaced by the Flir E5-XT.

    The FLIR E4 comes with a hard transport case, battery, power supply/charger, USB cable, an operator’s manual on CD, printed documentation, and FLIR Tools software.

    This E4 model will produce the same high quality image available on Standard Release cameras under normal operating conditions but the operating temperature range is not the same as the Standard Release E-Series specification detailed in the user manual. Please also note measurement accuracy variations from the Standard Release E-Series camera detailed in the Specifications tab below.

    PDF Logo    FLIR-Ex-Series-Datasheet

    PDF Logo    Flir Predictive Maintenance

    PDF Logo    Flir Building Diagnostics

    Authorised Australian Distributor.


    SKU: FLIR E4 Categories: , , Tag:

    The Flir E4 is now discontinued, replaced by the Flir E5-XT.

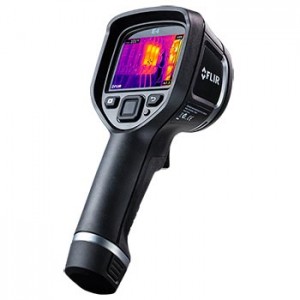

    FLIR E4  Thermal Imaging Camera with MSX

    • The new FLIR E4 thermal camera is designed to enhance the electrical, mechanical and building diagnostics of users across key industries and professions. The FLIR E4 is an affordable solution that can help professional users track down electrical and mechanical overheating, air leaks, moisture ingress, missing insulation, and a host of other issues that thermal imagers can detect and quantify.
    • The FLIR E4’s Other Features
      Featuring a 4,800 (80 x 60) pixel IR resolution, a 20 degrees C to 250 degrees C temperature range, and ±2 percent or 2 degrees C accuracy, the FLIR E4 features a compact, rugged and user-friendly design, a vivid 3″ color LCD display, wide-angle autofocus lens, intuitive camera controls, and an on-board 640×480-pixel digital camera.
    • MSX Imaging Technology

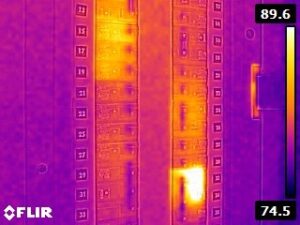

      The FLIR E4 also provides FLIR’s exclusive MSX (Multi-Spectral Dynamic Imaging) technology, which uses visible details from digital camera photos to create sharper IR images. Along with delivering a much clearer thermal picture overall, MSX makes it much easier to recognize the location of heat issues without obscuring or compromising the integrity of the original thermal scene. MSX is ideal for creating an all-in-one thermal image that clearly illustrates the location of emerging or existing issues, and the bundled FLIR Tools software makes it simple to import, analyze, and incorporate images into easy-to-understand reports to help provide convincing evidence for repairs.Problems & Solutions

      • Electrical Problems — Detect hidden electrical problems like loose connections, faulty wiring, and failing circuits.
      • HVAC Problems — Discover leaky ductwork and troubleshoot heating, AC, and radiant flooring problems.
      • Missing Insulation — Locate poor and missing insulation by comparing temperature differences with surrounding areas.
      • Water Damage — Find and fix hidden water leaks before small issues turn into large, expensive problems.
      • Air Infiltration — Reveal air leaks around windows, doors, and other building envelope structures.
      • Mold and Rot — See temperature differences to expose moisture, avoiding extensive damage and health issues.
      • Destructive Pests — Hunt down burrowing and nesting insects and rodents before expensive damage occurs.

      Introducing the FLIR E4, E5, E6 and E8

      The First Real Infrared Cameras with Thermal, Visible, and MSX Imaging Starting Under $1500

      Now you can afford the ultimate home inspection tool. Gain the competitive advantage, get more done, and take care of more customers. Blow them away with dramatic MSX thermal images that clearly reveal where missing insulation, air leaks, and moisture intrusion are hiding — convincing evidence that shows where to make repairs to improve energy efficiency, structural integrity, and comfort. An E4, E5, E6 or E8 can help you solve problems and save money for property owners, leading to greater credibility and opportunities.

      Your Vision Is About to Go Thermal
      FLIR thermal imaging cameras let you see amazing things that your eyes alone can’t, taking you beyond the visible spectrum into the infrared world of hot and cold. With the power to detect and visualize heat issues, a FLIR can show you where potential trouble is brewing. By using a thermal imager to help you find hidden problems early, you have a chance to get them fixed before they cause “self-evident” damage, waste more energy, hurt someone, or shut things down.

    Weight 2.5 kg
