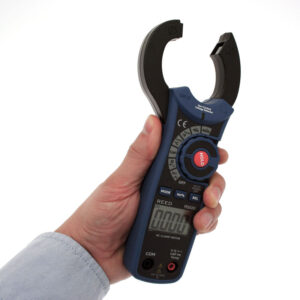

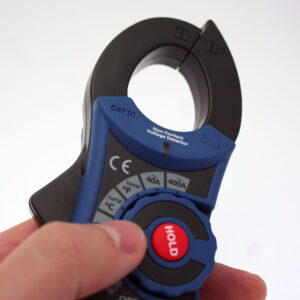

    The REED R5020 AC/DC Clamp meter measures AC current (40-400A), AC voltage (4-600V), and DC voltage (400mV-600V). In addition, it also measures resistance and capacitance—as well as temperature, with the include Type K thermocouple probe.

    SKU: REED R5020 Categories: , Tag:

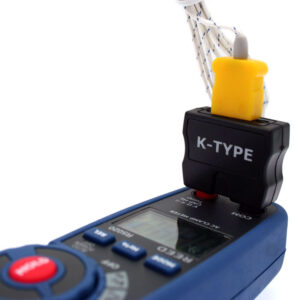

    • Measures AC current, AC and DC voltage, resistance, capacitance, as well as temperature with the included Type K thermocouple probe
    • Diode test and continuity check
    • 4000-count LCD displays low battery and overrange indications
    • UL approved
    • Cat. III 600V safety rating
    • AC Current Range: 40.00, 400.0 A
    • DC Voltage Range: 400.0mV, 4.000, 40.00, 400.0, 600.0V
    • AC Voltage Range: 4.000, 40.00, 400.0, 600.0V
    • Resistance Range: 400.0Ω, 4.000, 40.00, 400.0kΩ, 4.000, 40.00MΩ
    • Capacitance Range: 40.00, 400.0nF, 4.000, 40.00, 100.0µF
    • Temperature Range: -20.0 to 760.0°C (-4.0 to 1400.0°F)


    Weight 0.15 kg
