PROVA AA15 AC/DC mA Current Probe | 30A AC/DC, AC 0.1mA, DC 1mA

Your Multimeter Can’t See the Small Stuff. The AA15 Can.

You’ve got a fault that only shows up as a few milliamps. Maybe it’s a leaky circuit that keeps tripping an RCD, a control panel that never quite switches off, or a battery drain nobody can find. Your standard clamp meter reads 0.00 and shrugs. Breaking the circuit to put a meter in series isn’t always practical, and it isn’t always safe.

That’s the gap the PROVA AA15 AC/DC mA current probe fills. It clamps around the conductor, so there’s no need to open the circuit. It converts current into a small voltage signal your existing digital multimeter or oscilloscope can read. You get milliamp-level resolution without buying a whole new meter.

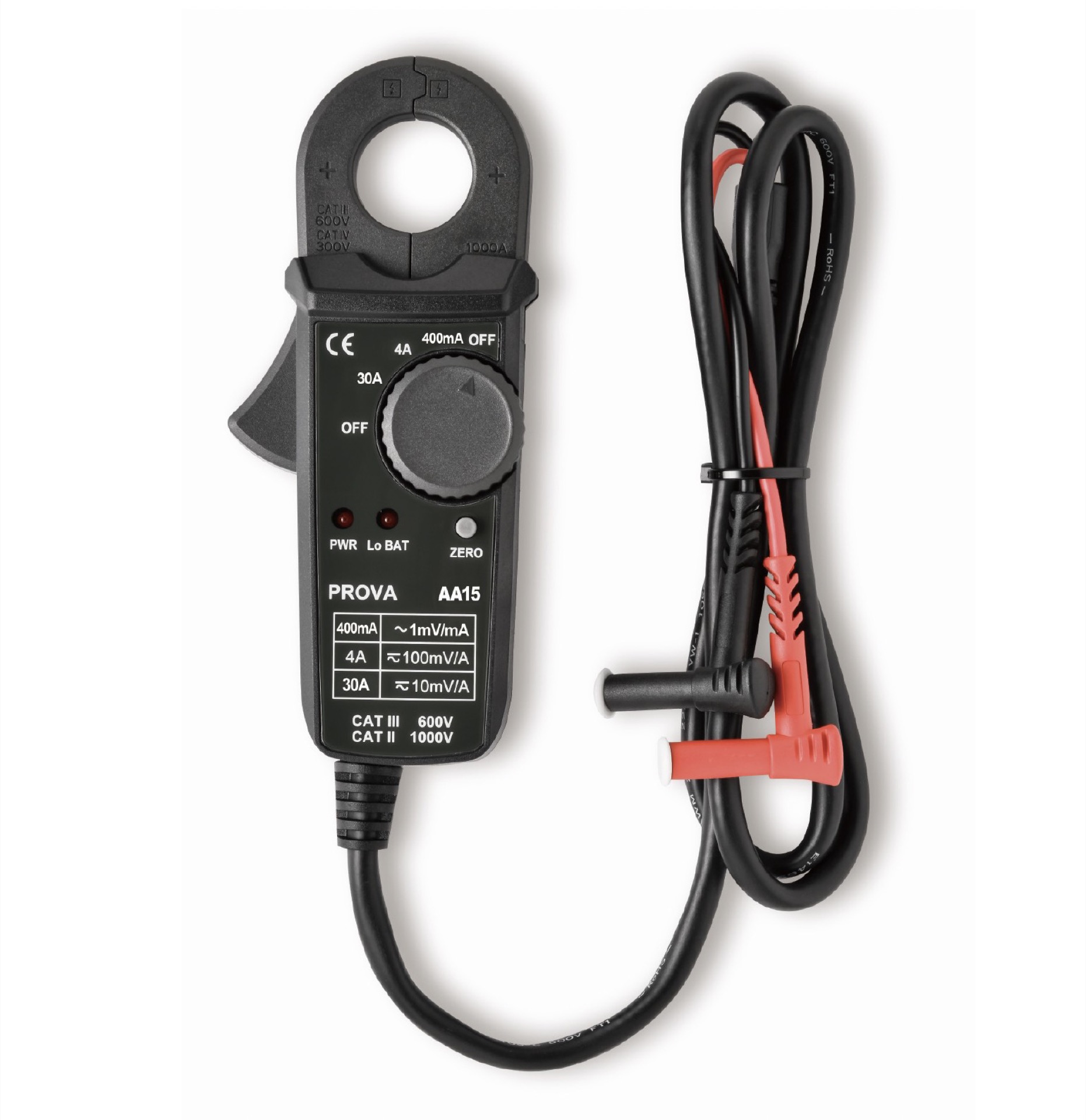

What Is the PROVA AA15?

The AA15 is a compact AC/DC current probe from PROVA Instruments. It measures 0–30A AC or DC through a 25mm jaw, with resolution down to 0.1mA on AC and 1mA on DC. A single rotary switch selects the range. A one-touch zero button nulls the DC offset before you measure.

It’s an accessory, not a standalone meter. The probe outputs a voltage proportional to the current, and your DMM or scope does the displaying. If you already own a decent multimeter, the AA15 turns it into a low-current clamp tester.

Where the AA15 Earns Its Place

Electrical contractors and maintenance teams Chase leakage and standby currents without disconnecting a thing. Clamp a single conductor and read the small AC current flowing through it on a 0–400mA range with 0.1mA sensitivity. Handy for fault-finding on circuits where a full-size clamp meter simply isn’t sensitive enough.

Solar installers and battery system techs Check DC current on low-voltage DC wiring, battery leads and charge circuits using the DC 0–4A and 0–30A ranges. Always check the circuit voltage against the probe’s CAT rating before you clamp on.

Calibration and test technicians The probe’s mV output makes it easy to log current with an oscilloscope or a data-logging DMM. It’s a practical way to watch current over time, such as inrush, load cycling or slow drift.

Trainers and RTOs A hands-on way to show students how current probes, mV scaling and DC zeroing actually work. The single rotary switch keeps it simple for first-timers.

Features That Matter on the Job

• 0–30A AC/DC measurement across clearly defined ranges, so you pick the one that suits the load.
• High resolution: 0.1mA AC and 1mA DC. This is the headline benefit for leakage and small-load work.
• 25mm jaw accommodates conductors up to approx. 25mm.
• One-touch zero for DCA. Press, null the offset, and start measuring. No fiddling with trim pots.
• Connects to a DMM or oscilloscope via a voltage output, so it slots into the gear you already own.
• One rotary switch for every function. No menu diving, no learning curve.
• Low battery LED. A red LED lights when it’s time to swap the two AAA cells.
• Safety rated CAT III 600V and CAT II 1000V, tested to IEC 61010, CE marked.

How It Works

Each range turns current into voltage at a fixed ratio. On the DC 0–4A range, 1A out equals 100mV on your meter, so 250mA reads as 25.0mV. On the AC 0–400mA range, the output is 1mV per mA. Set your DMM to a millivolt range, do the maths (or let the scale do it for you), and you’ve got your current reading.

For DC measurements, set the rotary switch, press the zero button with the jaw closed and clear of any conductor, and the offset is nulled. Then clamp your conductor and read.

Accuracy You Can Plan Around

Accuracy is specified at 23°C ±5°C with a crest factor of 3 or less. Some examples from the datasheet:

• DC 0–4A: ±2.0% of reading ±3mA
• DC 0–30A: ±2.0% of reading ±30mA
• AC 0–400mA: ±2.0% of reading ±0.5mA (50/60Hz)
• AC 0–30A: ±2.0% of reading ±30mA (50/60Hz)

Remember the accuracy of your meter or scope adds to the overall measurement uncertainty. The full table is below.

Built for Site Conditions

The AA15 weighs 250g with batteries and measures 152 × 66 × 36mm, so it lives happily in a tool bag. It operates from −10°C to 50°C at less than 85% relative humidity, up to 2000m altitude. It’s designed for indoor use. Power comes from two AAA batteries drawing approx. 22mA.

What’s in the Box

• PROVA AA15 AC/DC mA current probe
• Carrying bag
• User’s manual
• 2 × 1.5V AAA batteries

Why Buy From Rapid-Tech

We’re not a faceless tool shop, and we’re not a calibration lab either. We sit in between: trade-grade test gear with real technical backup. Not sure whether the AA15 suits your meter? Send us the model and we’ll tell you straight. We’ve got your gear sorted.

Need one for your team? Request a quote and we’ll get back to you with availability and options.

Technical Specifications

What is the PROVA AA15? The PROVA AA15 is an AC/DC milliamp current probe that measures 0–30A with 0.1mA AC and 1mA DC resolution. It clamps around a conductor and outputs a millivolt signal to a digital multimeter or oscilloscope.

What does the PROVA AA15 measure? The AA15 measures AC and DC current from milliamps up to 30A. AC resolution is 0.1mA and DC resolution is 1mA, with separate ranges for 0–400mA, 0–4A and 0–30A.

Can I use the AA15 to measure leakage current? The AA15’s 0–400mA AC range has 0.1mA sensitivity and ±2.0% ±0.5mA accuracy at 50/60Hz, which makes it suitable for checking small AC currents, including leakage and standby currents. Clamp around the conductor under test only.

Does the AA15 work with any multimeter? The AA15 connects to a DMM or oscilloscope that can read millivolts. Check your meter’s millivolt range and input specifications before use. Contact Rapid-Tech if you’re not sure.

What safety rating does the AA15 have? The PROVA AA15 is rated CAT III 600V and CAT II 1000V to IEC 61010, and carries a CE mark. Always check the circuit’s category and voltage before clamping on.

What batteries does the AA15 use? The AA15 runs on two 1.5V LR03 (AAA) batteries. A red LED lights when the battery is low.
