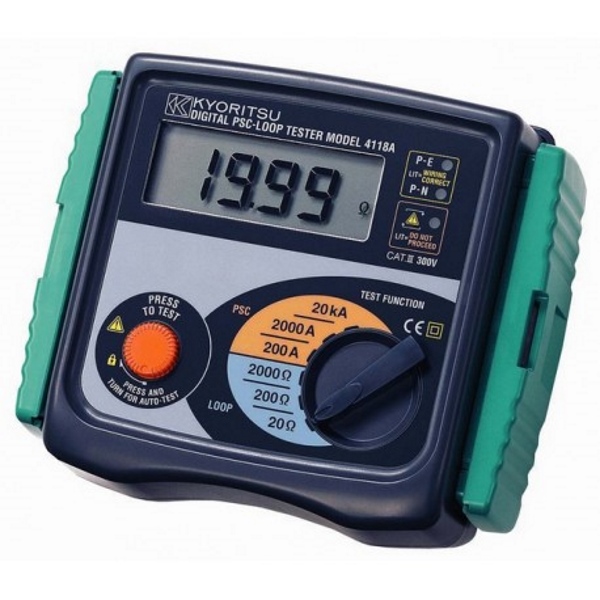

Kyoritsu 4118A Digital Loop Impedance Tester

Name: Kyoritsu 4118A Digital Loop Impedance Tester
Brand: KYORITSU
SKU: 04118A029C
Availability: InStock

$850.00 .( $935.00 inc. GST )

For all your equipment calibration needs, visit our MyCalibration website.

Free Delivery on orders over $1000
Shipping time may vary for certain products*

Click here to Make an Enquiry

Product Enquiry

If you would like more information regarding this product, simply email us here.

The Kyoritsu 4118A is a digital loop impedance tester that is able to measure prospective short current (PSC). Designed to comply with an IP54 rating, the 4118A is comprised of a custom microprocessor to achieve high accuracy and reliability.

Where the loop resistance of an earth circuit is too high and in the event of an overload or short circuit it is possible that that circuit breakers or earth leakage devices may become inoperative. To prevent such incidents, the earth circuit resistance must be measured to ensure it is sufficiently low.

Kyoritsu 4118A Datasheet

Kyoritsu 4118A User Manual

SKU: 04118A029C Categories: KYORITSU, Loop / PSC Testers Tags: KEW, Kyoritsu, Loop Tester Brand: Kyoritsu

Description

The Kyoritsu 4118A Digital Loop Impedance Tester contains 3 LEDs for checking correct wiring status and a visual indication of reversed phase and neutral wiring socket. An automatic lock-out feature is also present should the test resistor overheat. Designed to an IP54 rating, the 4118A possesses a large custom digital display and is supplied with test leads, cord case and shoulder strap.

Kyoritsu 4118A Digital Loop Impedance Tester Features:

• Custom microprocessor controlled for highest accuracy and reliability.
• 3 LEDs for checking correct wiring status.
• 15mA LOOP measurement: LOOP impedance 2000Ω range measurement is carried out with low test current (15mA).
The current will not cause tripping out involved RCD even the one with the lowest nominal differential current (30mA).
• Direct reading of Prospective Short Circuit Current (PSC).
• Safe voltage measurement function.
• Large custom digital display readout on all models.
• Measure low loop resistances(resolution of 0.01Ω)
• Automatic lock-out if test resister overheats.
• Large custom digital display readout .
• Visual indication of reversed phase and neutral wiring at socket.
• Designed to IP54 Rating
• Complies with IEC 61557

Kyoritsu 4118A Digital Loop Impedance Tester Specifications:

Loop Impedance Ranges	20/200/2000Ω
Loop Impedance Accuracy	±2%rdg±4dgt
AC Test Current	20Ω 25A 200Ω 2.3A 2000Ω 15mA
AC Test Period	20Ω (20ms) 200Ω (40ms) 2000Ω (280ms)
PSC Ranges	200A (2.3A 40ms) 2000A (25A 20ms) 20kA (25A 20ms)
PSC Ranges Accuracy	Consider accuracy of Loop impedance
Voltage	110V-260V ±2%rdg±4dgt
Operating Voltage	230V+10% -15% (195V – 253V) 50Hz
Safety Standard	IEC 61010-1 CAT III 300V Pollution Degree 2 IEC 61557-1,-3 IEC 61010-2-031
IP Rating	IEC 60529-IP54
Dimensions	167(L) × 185(W) × 89(D)mm
Weight	750g approx.
Accessories	Molded plug test leads 7121B (Simplified measurement probe) Pouch for test leads 9121 (Shoulder Strap) Instruction Manual
