Kyoritsu 5406A + Kyoritsu 2117R Kit
$650.00 .( $715.00 inc. GST )
For all your equipment calibration needs, visit our MyCalibration website.
Free Delivery on orders over $1000
Shipping time may vary for certain products*
Product Enquiry
If you would like more information regarding this product, simply email us here.
The Kyoritsu 5406A RCD Tester is a high-specification testing device featuring precise trip time and ramp current testing, controlled by a custom microprocessor for superior accuracy and reliability. Its constant current source circuitry ensures consistent readings, even when mains voltage fluctuates. Ideal for performing trip time and ramp current tests on RCDs in compliance with AS/NZS3760:2003 electrical regulations.
Bundled with the Kyoritsu KEW 2117R 1000A True RMS Clamp Meter, this kit offers a complete electrical testing solution. The KEW 2117R features a 0.01A resolution on the 60A range, a 33mm jaw size, and autoranging capability. It also measures ACV, DCV, resistance, and continuity, and includes non-contact AC voltage detection for added versatility and safety.
Kyoritsu-5406A-User-Manual
Kyoritsu-2117R-Datasheet Kyoritsu-2117R-User-Manual

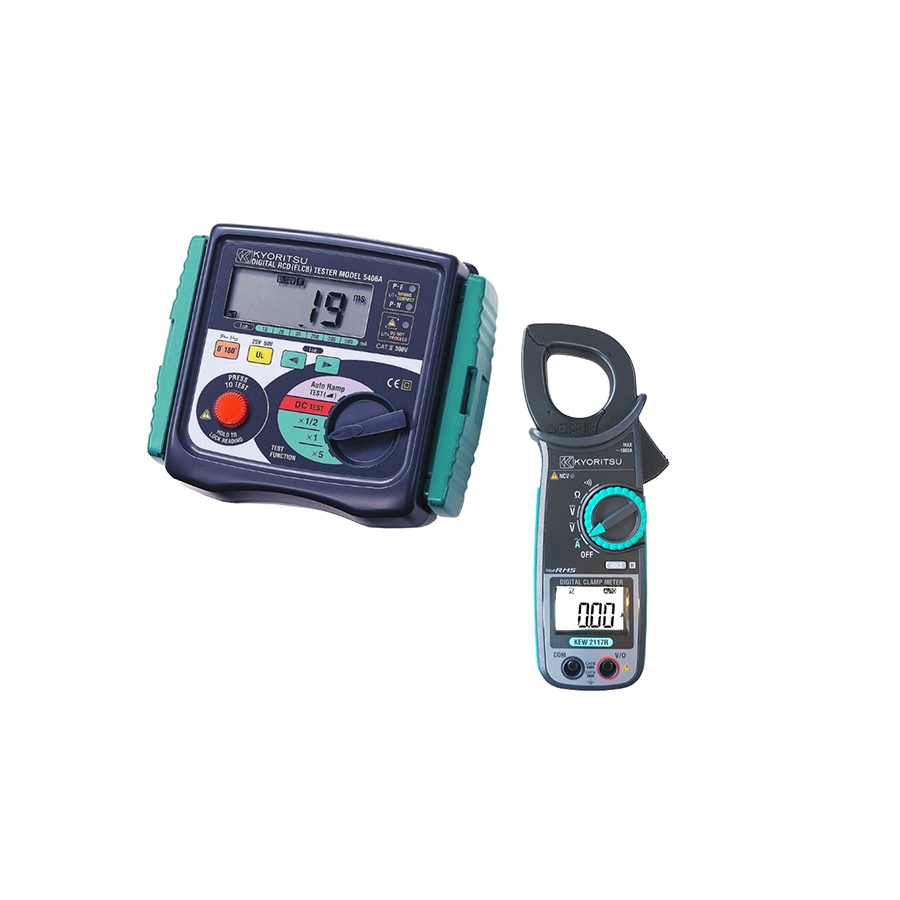

Kyoritsu 5406A RCD Tester
The Kyoritsu 5406A RCD Tester is used to test an RCD which is is a protective device used to automatically disconnect the electrical supply when an imbalance is detected between live conductors. In the case of a single-phase circuit, the device monitors the difference in currents between the active and neutral conductors.
In a healthy circuit, where there is no fault current flowing to earth or protective conductor current, the sum of the currents in the line and neutral conductors is zero. If a line-to-earth fault develops, a portion of the line conductor current will, therefore, not return through the neutral conductor. The RCD monitors this difference, operates and disconnects the circuit when the residual current reaches a preset limit, the “residual operating current”. This is what the Kyoritsu 5406A tests.
Kyoritsu 5406A RCD Tester Features:
• Custom microprocessor controlled for highest accuracy and reliability.
• 3 LEDs for checking correct wiring status.
• 0 and 180 degree phase angle switch permits quick tests and consistent readings.
• Digital read-out of tripping time.
• Constant current source circuitry ensures that a fluctuating mains voltage does not affect the accuracy of readings.
• Large custom digital display readout.
• Visual indication of reversed phase and neutral wiring at socket.
• Designed to IP54 Rating.
• Complies with IEC 61557
• Test of a large kind of RCD’s: Standard, Selective, AC and A (DC sensitive breakers)
The KYORITSU 2117R AC Digital Clamp Meter measures AC current in three ranges 60A / 600A and 1000A in True RMS mode with a resolution of 0.01A on the lowest 60A range. The ranges change automatically as the measured value changes. The tear-drop jaws can measure cable with a maximum diameter of 33mm.
In addition KYORITSU 2117R also has other measurement functions AC Volts, DC Volts, Resistance, Continuity as well as Non Contact Voltage Detection.The function selector knob allows you to operate the device with one hand.
KYORITSU 2117R AC Digital Clamp Meter Features:
• Fully Safety tear-drop 33mm jaw
• True RMS
• Ergonomic over-molded body gives convenient one-hand operation
• Large easy-to-read display with 0.01A resolution
• Accurate reading with True RMS – 60/600/1000A auto-ranging
• Non-Contact Voltage (NCV Detection.
• Long battery life
• Safety Standard – IEC 61010-1 CAT IV 300V / CAT III 600V
Field Efficient · reporting software
5 min
per job, on admin
✓ Print QR-verified test tags on site
✓ Electrical, test & tag, thermal — one app, one report
No credit card required · cancel anytime · built in Australia for test & measurement pros · data hosted in Sydney
| Weight | 1 kg |
|---|
Be the first to review “Kyoritsu 5406A + Kyoritsu 2117R Kit”
You must be logged in to post a review.
Kyoritsu 5406A RCD Tester
| Rated Tripping Current | |10/20/30/200/300/500mA |
| Fault Condition Settings | |x 1/2, x 1, x 5, x DC, |AUTO RAMP |
| Trip Current Duration | |1000ms, 200ms (x5) |
| Lowest Resolution | |1ms |
| Trip Time Accuracy | |±0.6%rdg±4dgt |
| Operating Voltage | |230V+10%-15% |(195V – 253V) 50Hz |
| Safety Standard | |IEC 61557-1,-6 |IEC 61010-1 CAT III 300V |IEC 61010-2-031 Pollution Degree 2 |
| Withstand Voltage | |3700V AC for 1 minute |
| IP Rating | |IEC 60529-IP54 |
| Dimensions | |186(L) x 167(W) x 89(D)mm |
| Weight | |800g approx. |
| Accessories | |Molded plug test leads |Pouch for test leads |Shoulder Strap |Instruction Manual |

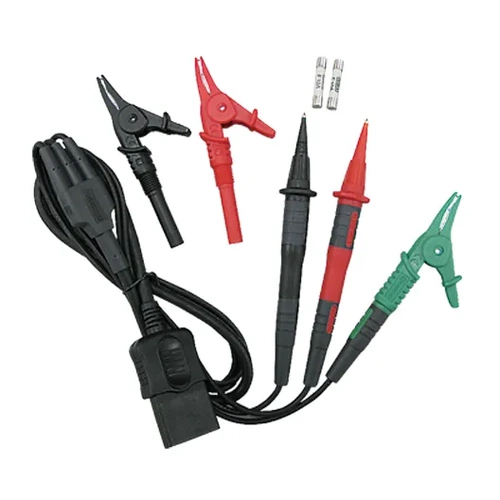

| Optional | |7121B (Simplified measurement probe) |
KYORITSU 2117R AC Digital Clamp Meter Specifications:
| AC A | 60.00/600.0/1000A (Auto-ranging) ±1.5%rdg±4dgt [45 – 65Hz] ±2.0%rdg±5dgt [40 – 1kHz] |
|---|---|
| AC V | 60.00/600.0V (Auto-ranging) ±1.0%rdg±2dgt [45 – 65Hz] (600V) ±1.5%rdg±4dgt [40 – 1kHz] (60/600V) |
| DC V | 60.00/600.0V (Auto-ranging) ±1.0%rdg±3dgt (60V) ±1.2%rdg±3dgt (600V) |
| Ω | 600.0Ω/6.000/60.00/600.0kΩ (Auto-ranging) ±1.0%rdg±5dgt (600Ω) ±2.0%rdg±3dgt (6/60/600kΩ) |
| Continuity buzzer | 600Ω(Buzzer sounds below 90Ω) |
| Conductor size | Ø33mm max. |
| Applicable standards | IEC 61010-1 CAT IV 300V, CAT III 600V Pollution degree 2 IEC 61010-031, IEC 61010-2-032, IEC 61010-2-033, IEC 61326-2-2(EMC), IEC 60529 IP 40, EN50581(RoHS) |
| Power source | R03/LR03 (AAA) (1.5V) × 2 |
| Continuous measuring time | Approx.170 hours (When R3 is used)(NCV_LED:off) (Auto power save : approx. 10 minutes) |
| Dimensions | 204(L) × 81(W) × 36(D)mm |
| Weight | 220g Approx. (including batteries) |
| Included Accessories | 7066A (Test leads) 9079 (Carrying case), R03 (AAA) × 2, Instruction Manual |
