Fluke FEV300 with Type 2 Connector -| Test Adapter for Electric Vehicle Charging Stations

AUD $1,299.00 .( AUD $1,428.90 inc. GST )


For all your equipment calibration needs, visit our MyCalibration website.


Free Delivery on orders over $1000
Shipping time may vary for certain products*

Product Enquiry

If you would like more information regarding this product, simply email us here.

  • Drop files here or
    Accepted file types: jpg, gif, png, pdf, Max. file size: 1 MB, Max. files: 4.
    • This field is for validation purposes and should be left unchanged.

    fluke logo

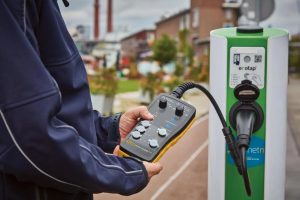

    The FEV300 Test Adapter Kit with Type 2 Connector is a comprehensive, all-in-one testing solution for AC charging stations. Crafted to meet industry standards, including IEC/EN 61851-1 and IEC/HD 60364-7-722, this adapter allows you to perform a variety of tests that measure the safety and functionality of your charging station. By imitating an electric vehicle, the adapter opens up a charging cycle, thus enabling you to activate voltage and current output for calculating max current available for charging. Its versatile construction makes it easy to connect with an EV charging station Type 2 with socket outlet or vehicle connector.

    The FEV300 Test Adapter Kit with Type 2 Connector is an essential tool for testing the function and safety of Mode 3 AC charging stations. It allows technicians to conduct tests in accordance with IEC/EN 61851-1 and IEC/HD 60364-7-722 using installation testers, like Fluke 1664 FC and ScopeMeter® from the Fluke 120B Series. This all-in-one adapter simplifies the process of connecting and testing charging stations, as it imitates an electric vehicle thus eliminating the need to bring an EV onsite.

    When connected to a Type 2 socket outlet or vehicle connector, it enables technicians to perform ground fault checks, insulation of wires, measuring voltage and duty cycle – all necessary steps that help evaluate max current available for charging. The FEV300 also comes with three LED lamps which indicate separate phases; this makes it easier to check if voltage is present while conducting tests.

    Overall, this adapter kit provides all necessary tools and functions needed to ensure function and safety of Mode 3 AC charging stations per industry standards. It also eliminates a number of steps required for troubleshooting by acting as an electric vehicle during a charging cycle; this way technicians can quickly continue without unnecessary delays.

    Weight 1.5 kg

    Specifications

    Specifications: Fluke FEV300 EV Charging Station Test Adapter Kit With Type 2 Connector

    General features
    Input voltage Up to 250 V (single phase system) / up to 480 V (three phase system), 50/60 Hz, max 10 A
    Internal power consumption 3 W max.
    FEV300-CON-TY2 Plug AC charging mode 3, suitable to IEC 62196-2 type 2 socket outlet or fixed cable with vehicle connector (type 2, 7P three-phase)
    FEV300-CON-TY1 Plug AC charging mode 3, suitable to IEC 62196-2 type 1 or SAE J1772 with vehicle connector (type 1, 5P single-phase)
    Dimensions (H × W × D) 110  × 45  × 220 mm length without connection cable and test cable
    Weight (including type 1 or type 2 connection cable) Approx. 1 kg
    Safety standards IEC/EN 61010-1, pollution degree 2
    IEC/EN 61010-2-030, CAT II 300 V, protection class II
    Ingress protection IEC 60529: IP54 (housing)
    IEC 60529: IP54 (sockets with protection caps in place, connectors in connected condition or with protection caps in place, otherwise IP20)
    Operating temperature -20 °C to 40 °C
    Storage temperature -20 °C to 50 °C
    Operating humidity range 10 % to 85 % relative humidity non-condensing
    Storage relative humidity 0 % to 85 % non-condensing
    Operating altitude 2000 m max.
    Functions
    PE Pre-Test Visible indication >50 V AC/DC between PE conductor and touch sensor
    PP Simulation Open, 13 A, 20 A, 32 A, 63 A
    CP States State A, B, C, D
    CP Error state “E” On/off (CP signal short-circuited to PE)
    PE Error state “F” (Earth fault) On/off (interruption of PE conductor)
    Outputs (for test purpose only)
    Measuring terminals L1, L2, L3, N, PE Max. 250/480 V, max. 10 A
    CP signal output terminals Approx. +/-12 V
    Caution: In case of wrong wiring or error of the charging station these terminals may be hazardous.
