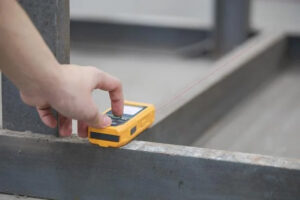

The Fluke 410 Laser Distance Meter is a highly accurate and reliable tool for measuring distances up to 100m. With its simple design and easy-to-use button operation, it is perfect for even the most demanding jobs. Plus, its rugged construction ensures that it can withstand even the most demanding jobs. Thanks to its precision and accuracy, the Fluke 410 is perfect for a wide range of applications, such as measuring dimensions of rooms or buildings, determining property boundaries, calculating distances between objects, or checking alignment of pipes and conduits.
The Fluke 410 Laser Distance Meter is the perfect tool for anyone looking for a fast, accurate, and durable way to measure distance. With just a simple point and click, you can instantly measure up to 100 meters, making it perfect for a variety of applications. Additionally, the Fluke Laser Distance Meter features easy-to-use button operation, allowing you to quickly calculate area, volume, or pythagoras. The Time-delay measurement and auto calibration features also add to the convenience and precision of this great tool.
Key features
Quickly measure distance, calculate area / volume / pythagoras
Auto level and height
Built to withstand rainy or dusty conditions: 1-meter drop tested with rated P64 (FLUKE410),
Automatically power off after 3 minutes of inactivity
Fluke 410 provide additional features as:
Universal tripod interface, easy to use
Type-C charging port, strong endurance
2-inch HD display, clear viewing in full sunlight
Weight
0.3 kg
Specifications
Model
Fluke 406E
Fluke 410
Specifications
Range
0.2 to 60 m
0.2 to 100 m
Accuracy*
in favorable condition**
±(2.0mm+5×10-5D)
Accuracy
in unfavorable condition***
±(3.0mm+29×10-5D)
Angle accuracy
±(0.3°+0.1°+0.01*A), A is up to ±45° in each quadrant
Angel measurement method
Electronic
Measurement unit
m / ft / in / ft+in
Display
1.6 inch, segment alphanumeric display
2.0-inch positive display
* Temperature for specified accuracy: 25°C
** Favorable conditions: white and diffuse reflection objects (white painted walls) ,low background illumination and moderate temperature
*** Unfavorable conditions: objects with low or high reflectivity, high background illumination or the temperature is at the upper or lower limit of the specified temperature range
Measurements
Single measurement
●
●
Continuous measurement
●
●
Area measurement
●
●
Volume measurement
●
●
Auto Leveling
●
●
Auto Vertical
●
●
Pythagoras 1
●
●
Pythagoras 2
●
●
Plus-minus method
●
●
Measurement reference
Front / Back
Front / Tripod hole / Back / Extender
Auto-off
3 minutes after inactivity
3 minutes after inactivity
History measurement data
30 sets
100 sets
Time-delay measurement
●
Auto calibration
●
Side button
●
Extender
●
General
Laser class
Class 2
Laser type
630 to 670nm, <1mW
Battery life
up to 5000 measurements (single measurement)
up to 3500 measurements (single measurement)
Operating temperature
0 C° to 40 C°
Storage temperature
-10 C° to 60 C°
Ingress protection
IP54
IP65
Drop test
1 m
1 m
Size
50 mm × 115mm × 29mm
52 mm × 116mm × 28mm
Weight
100g
110g
Certification
Laser certification
IEC 60825-1: Class 2, 635 nm, <1 mW
CPA, CE
Electrical certification
IEC 61010-1: Pollution Degree 2
EMC： IEC 61326-1: Industrial Electromagnetic Environment CISPR 11: Group 1, Class A
Packaging and accessories
Packaging box
Folding box
Full telescope
User manual
√
√
Vinyl carrying pouch
√
√
Battery
2 AAA alkaline cells
2 AAA NiMH rechargeable cells
Qualification certificate
√
√
Lanyard
√
Charging cable
Type-C cable, 0.5m
