Fluke 374 FC/ 62 Max Plus Kit – High-Accuracy True RMS AC/DC Clamp Meter with Rugged Infrared Thermometer
Fluke Black Friday 20% Sale
Original price was: $717.00.$574.00Current price is: $574.00. .( $631.40 inc. GST )
For all your equipment calibration needs, visit our MyCalibration website.
Free Delivery on orders over $1000
Shipping time may vary for certain products*
Product Enquiry
If you would like more information regarding this product, simply email us here.
Introducing the Fluke 374 FC/ 62 Max Plus Kit, an innovative blend of the True-RMS AC/DC Clamp Meter and the high-accuracy Infrared Thermometer. This kit combines the advanced troubleshooting capabilities of the Fluke 374 FC Clamp Meter with the precision and ruggedness of the Fluke 62 Max Plus Infrared Thermometer. Designed for the modern professional, this kit ensures a safe distance is maintained during readings thanks to its wireless connectivity. The Fluke 374 FC Clamp Meter offers incredible accuracy for both AC and DC current measurements up to 600 A and voltage readings up to 1000 V. On the other hand, the Fluke 62 Max Plus Infrared Thermometer is compact, highly accurate, and rated IP54 for dust and water resistance, ensuring durability even after a 3-meter drop. Combining these two powerful tools, the kit provides the complete solution for troubleshooting complex electrical systems or taking temperature readings in hard-to-reach areas. Don’t just measure, troubleshoot with confidence with the Fluke 374 FC/ 62 Max Plus Kit.
Fluke370-FC Datasheet FLUKE 62 Max Plus Datasheet
- Description
- Additional information
- Fluke 374 FC Specifications
- FLUKE 62 Max+ Specifications
- Reviews (0)
Fluke 374 FC/ 62 Max Plus Kit – True-RMS AC/DC Clamp Meter with Infrared Thermometer
Introducing the Fluke 374 FC/ 62 Max Plus Kit – an exceptional blend of advanced troubleshooting performance and wireless convenience. This combo of True-RMS AC/DC Clamp Meter and Infrared Thermometer offers incredible accuracy, durability, and user-friendly design.
The Fluke 374 FC Clamp Meter, a member of the Fluke Connect family, comes with a plethora of features that make your day-to-day troubleshooting tasks a breeze. It can measure AC and DC current up to 600 A and voltage up to 1000 V. Its optional iFlex® flexible current probe extends its measuring capacity to 2500 A. The clamp meter is also Fluke Connect-enabled, allowing you to safely read results from a distance via Bluetooth on your Apple and Android devices.
The Fluke 62 Max Plus Infrared Thermometer is built to meet your on-the-job needs. Its compact size and exceptional accuracy make it an indispensable asset. Rated IP54 for dust and water resistance, this rugged thermometer can handle a 3-meter drop without compromising on precision.
This kit doesn’t just offer a combination of powerful tools; it provides a solution. Whether you’re troubleshooting complex electrical systems or measuring temperature in hard-to-reach areas, the Fluke 374 FC/ 62 Max Plus Kit is your go-to companion.

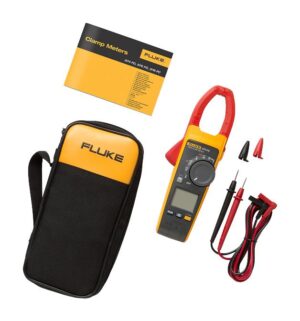

In the box, you’ll find a soft carrying case for safe storage, TL75 test leads for the clamp meter, two AA alkaline batteries to get you started, a coated instruction card, and a safety information sheet.
Invest in the Fluke 374 FC/ 62 Max Plus Kit today and experience the future of troubleshooting!
Fluke 374 FC Features
- Fluke Connect® allows you to see your clamp meter’s measurements from a safe distance using the advanced clamp meter
- Measures AC and DC current to 600 A and AC and DC voltage to 1000 V
- Performs AC and DC current measurements to 600 A, and AC and DC voltage measurements to 1000 V
- With the optional iFlex flexible probe, you can measure AC current up to 2500 A
- Measures resistance to 6000 Ω with continuity detection
- Compatible with optional TPAK magnetic hanging strap
- Comes with soft carrying case, batteries, and three-year warranty
- Measures capacitance to 1000 µF
- Features CAT III 1000 V, CAT IV 600 V safety rating
- Provides True-RMS voltage and current measurements to accurately measure non-linear signals
- Includes Min/Max/Avg and inrush recording to capture variations automatically
- Runs on two AA alkaline batteries
FLUKE 62 Max Plus Features
- Ergonomically designed: Completely redesigned for a more natural hand fit.
- Small and lightweight; clips to your tool belt or belt loop or easily fits into your tool box.
- Dust and water-resistant: IP54 rated for dust and water resistance.
- Rugged: 3-meter (9.8-foot) drop tested.
- Distance to spot: Precise laser technology makes for more accurate and repeatable measurements.
- Dual lasers: The Fluke 62+ MAX has dual rotating lasers to help you identify area to be measured. The measurement area is the spot between the dots.
- Large, backlit display: Large screen makes data easier to read, even in dark areas.
- Min/Max/Avg/Dif: Displays the minimum, maximum or average temperature, or the difference between two measurements.
- Alarm: Hi and Lo alarms for rapid display of measurements outside the limits.
- Fluke Connect® allows you to see your clamp meter’s measurements from a safe distance using the advanced clamp meter
- Measures AC and DC current to 600 A and AC and DC voltage to 1000 V
- Performs AC and DC current measurements to 600 A, and AC and DC voltage measurements to 1000 V
- With the optional iFlex flexible probe, you can measure AC current up to 2500 A
- Measures resistance to 6000 Ω with continuity detection
- Compatible with optional TPAK magnetic hanging strap
- Comes with soft carrying case, batteries, and three-year warranty
- Measures capacitance to 1000 µF
- Features CAT III 1000 V, CAT IV 600 V safety rating
- Provides True-RMS voltage and current measurements to accurately measure non-linear signals
- Includes Min/Max/Avg and inrush recording to capture variations automatically
- Runs on two AA alkaline batteries
FLUKE 62 Max Plus Features
- Ergonomically designed: Completely redesigned for a more natural hand fit.
- Small and lightweight; clips to your tool belt or belt loop or easily fits into your tool box.
- Dust and water-resistant: IP54 rated for dust and water resistance.
- Rugged: 3-meter (9.8-foot) drop tested.
- Distance to spot: Precise laser technology makes for more accurate and repeatable measurements.
- Dual lasers: The Fluke 62+ MAX has dual rotating lasers to help you identify area to be measured. The measurement area is the spot between the dots.
- Large, backlit display: Large screen makes data easier to read, even in dark areas.
- Min/Max/Avg/Dif: Displays the minimum, maximum or average temperature, or the difference between two measurements.
- Alarm: Hi and Lo alarms for rapid display of measurements outside the limits.
| Weight | 1 kg |
|---|
Fluke 374 FC Specifications
| AC Current via Jaw | ||||
| Range | 600.0 A | |||
| Resolution | 0.1 A | |||
| Accuracy | 2% ±5 digits (10 Hz to 100 Hz) 2.5% ±5 digits (100-500 Hz) |
|||
| Crest Factor (50 Hz/60 Hz) | 2.5 @ 600 A Add 2% for C.F. >2 |
|||
| AC Current via Flexible Current Probe | ||||
| Range | 2500 A | |||
| Resolution | 0.1 A (≤ 600 A) 1 A (≤ 2500 A) |
|||
| Accuracy | 3% ±5 digits (5 – 500 Hz) | |||
| Crest Factor (50/60Hz) | 2.5 at 1400 A 1.42 at 2500 A Add 2% for C.F. > 2 |
|||
| Position Sensitivity | ||||
 |
Distance from Optimum | |||
| i2500-10 Flex | i2500-18 Flex | Error | ||
| A | 0.5 in (12.7 mm) | 1.4 in (35.6 mm) | ±0.5 % | |
| B | 0.8 in (20.3 mm) | 2.0 in (50.8 mm) | ±1.0 % | |
| C | 1.4 in (35.6 mm) | 2.5 in (63.5 mm) | ±2.0 % | |
| Measurement uncertainty assumes centralized primary conductor at optimum position, no external electrical or magnetic field, and within operating temperature range. | ||||
| DC Current | ||||
| Range | 600.0 A | |||
| Resolution | 0.1 A | |||
| Accuracy | 2% ±5 digits | |||
| AC Voltage | ||||
| Range | 1000 V | |||
| Resolution | 0.1 V (≤600.0 V) 1 V (≤1000 V) |
|||
| Accuracy | 1.5% ±5 digits (20 Hz to 500 Hz) | |||
| DC Voltage | ||||
| Range | 1000 V | |||
| Resolution | 0.1 V (≤600.0 V) 1 V (≤1000 V) |
|||
| Accuracy | 1% ±5 digits | |||
| mV dc | ||||
| Range | 500.0 mV | |||
| Resolution | 0.1 mV | |||
| Accuracy | 1% ±5 digits | |||
| Resistance | ||||
| Range | 6000 Ω | |||
| Resolution | 0.1 Ω (≤600 Ω) 1 Ω (≤6000 Ω) |
|||
| Accuracy | 1% ±5 digits | |||
| Capacitance | ||||
| Range | 1000 μF | |||
| Resolution | 0.1 μF (≤ 100 μF) 1 μ F (≤ 1000 μF) |
|||
| Accuracy | 1% ±4 digits | |||
| Mechanical Specifications | ||||
| Maximum voltage between any terminal and earth ground | 1000 V | |||
| Batteries | 2 AA, NEDA 15A, IEC LR6 | |||
| Operating temperature | -10 °C to +50 °C | |||
| Storage temperature | -40 °C to +60 °C | |||
| Operating humidity – non-condensing (< 10°C) |
≤90% RH (at 10 °C to 30 °C) ≤75% RH (at 30 °C to 40 °C) ≤45% RH (at 40 °C to 50 °C) |
|||
| Operating altitude | 3000 m | |||
| Storage altitude | 12,000 m | |||
| Size (L x W x H) | 249 x 85 x 45 mm | |||
| Weight | 395 g | |||
| Jaw opening | 34 mm | |||
| Flexible current probe diameter | 7.5 mm | |||
| Flexible current probe cable length (head to electronics connector) |
1.8 m | |||
| Safety | IEC 61010-1, Pollution Degree 2 IEC 61010-2-032: CAT III 1000 V / CAT IV 600 V IEC 61010-2-033:CAT III 1000 V / CAT IV 600 V |
|||
| IP rating | IEC 60529: IP30, non-operating | |||
| Radio Frequency Certification FCC ID | T68-FBLE IC:6627A-FBLE | |||
| Electromagnetic Compatibility (EMC) | ||||
| International | IEC 61326-1: Portable, Electromagnetic Environment, IEC 61326-2-2 CISPR 11: Group 1, Class A Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself. Class A: Equipment is suitable for use in all establishments other than domestic and those directly connected to a low-voltage power supply network that supplies buildings used for domestic purpose. There may be potential difficulties in ensuring electromagnetic compatibility in other environments due to conducted and radiated disturbances. Emissions that exceed the levels required by CISPR 11 can occur when the equipment is connected to a test object. |
|||
| Korea (KCC) | Class A Equipment (Industrial Broadcasting & Communication Equipment) Class A: Equipment meets requirements for industrial electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and not to be used in homes. |
|||
| USA (FCC) | 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103. | |||
| Temperature coefficients | Add 0.1 x specified accuracy for each degree C above 28 °C or below 18 °C | |||
FLUKE 62 Max+ Specifications
| Temperature Range | Fluke 62 MAX+ -30 °C to 650 °C (-22 °F to 1202 °F) | ||||||||||||||||||||||
| Accuracy |
|
||||||||||||||||||||||
| Response Time (95%) | Fluke 62 MAX+ <300 ms (95% of reading) Spectral Response 8 to 14 microns Emissivity 0.10 to 1.00 |
||||||||||||||||||||||
| Display Resolution | 0.1 °C (0.2 °F) | ||||||||||||||||||||||
| Repeatability of Readings | Fluke 62 MAX ±0.8% of reading or <±1.0 °C (2 °F), whichever is greater Fluke 62 MAX+ ±0.5% of reading or <±0.5 °C (1 °F), whichever is greater |
||||||||||||||||||||||
| Power | AA battery | ||||||||||||||||||||||
| Battery Life | Fluke 62 MAX+ 8 hours with laser and backlight on | ||||||||||||||||||||||
| Physical Specifications |
|
||||||||||||||||||||||
| Standards and Agency Approval | Compliance EN/IEC 61010-1: 2001 Laser Safety FDA and EN 60825-1 Class II |
