The Fluke 1587 FC Insulation Multimeter combines a digital insulation tester with a full-featured, true-rms digital multimeter in a single compact, handheld unit, which provides maximum versatility for both troubleshooting and preventative maintenance.
The FLUKE 1587 FC Features:
• Quickly find problems by saving and comparing measurements over time on a wireless device

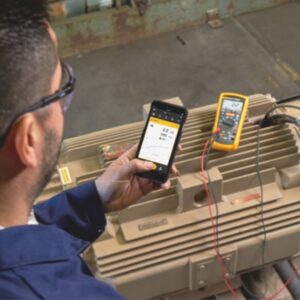

• Safety first. Connect the insulation tester then keep yourself out of harm’s way by monitoring your test measurements remotely.
• Test Voltages are :50, 100, 250, 500, 1000 V
• Prove your job is done right by quickly seeing and sharing insulation resistance test results wirelessly with your smartphone.
Fluke 1587 FC Insulation + Fluke Connect helps you identify tough problems, fix, and wirelessly communicate your work quickly and easily – all at a safe distance.
The Fluke 1587 FC Insulation Test Voltages are :50, 100, 250, 500, 1000 V
PI/DAR timed ratio tests with TrendIt™ graphs to identify moisture and contaminated insulation problems faster
Memory storage through Fluke Connect that saves measurements to your phone or the cloud and eliminates the need to write down results. Reduces errors and saves data for historical tracking over time
Temperature compensation to establish accurate baselines and relevant historical comparisons
Provides memory storage through Fluke Connect Measurements to eliminate the need to write down results
Includes live circuit detection to prevent insulation test if voltage >30 V is detected
Provides automated temperature compensation to establish accurate baselines
Incorporates VFD low-pass filter for accurate variable frequency motor drive measurements
Includes auto-discharge of capacitive voltage for added user protection
Measures ac/dc voltage, dc millivolts, ac/dc milliamps, resistance, and continuity
Includes capacitance, diode test, temperature, min/max, frequency measurements and insulation test smoothing reading
Automatically powers off to save battery power
Comes with remote probe, test leads, alligator clips, K-type thermocouple, hard case, and t
Electrical Specifications
AC voltage measurement
Range
600.0 mV
Resolution
0.1 mV
Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts)
±(1% + 3)
Accuracy 60 Hz to 5000 Hz ±(% of Rdg + Counts)
±(2% + 3)
6.000 V
Resolution
0.001 V
Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts)
±(1% + 3)
Accuracy 60 Hz to 5000 Hz ±(% of Rdg + Counts)
±(2% + 3)
60.00 V
Resolution
0.01 V
Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts)
±(1% + 3)
Accuracy 60 Hz to 5000 Hz ±(% of Rdg + Counts)
±(2% + 3)
600.0 V
Resolution
0.1 V
Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts)
±(1% + 3)
Accuracy 60 Hz to 5000 Hz ±(% of Rdg + Counts)
±(2% + 3)¹
1000 V
Resolution
1 V
Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts)
±(2% + 3)
Accuracy 60 Hz to 5000 Hz ±(% of Rdg + Counts)
±(2% + 3)¹
¹ 1 kHz bandwidth
Low-Pass Filter Voltage
Range
600.0 mV
Resolution
0.1 mV
Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts)
±(1% + 3)
Accuracy 60 Hz to 400 Hz ±(% of Rdg + Counts)
+(2% + 3), -(6% – 3)
6.000 V
Resolution
0.001 V
Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts)
±(1% + 3)
Accuracy 60 Hz to 400 Hz ±(% of Rdg + Counts)
+(2% + 3), -(6% – 3)
60.00 V
Resolution
0.01 V
Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts)
±(1% + 3)
Accuracy 60 Hz to 400 Hz ±(% of Rdg + Counts)
+(2% + 3), -(6% – 3)
600.0 V
Resolution
0.1 V
Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts)
±(1% + 3)
Accuracy 60 Hz to 400 Hz ±(% of Rdg + Counts)
+(2% + 3), -(6% – 3)
1000 V
Resolution
1 V
Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts)
±(2% + 3)
Accuracy 60 Hz to 400 Hz ±(% of Rdg + Counts)
+(2% + 3), -(6% – 3)
DC Voltage Measurement
Range
Resolution
Accuracy ±(% of Rdg + Counts)
6.000 V dc
0.001 V
±(0.09% + 2)
60.00 V dc
0.01 V
±(0.09% + 2)
600.0 V dc
0.1 V
±(0.09% + 2)
1000 V dc
1 V
±(0.09% + 2)
Input impedance
10 MΩ (nominal), <100 pF
Normal mode rejection ratio
>60 dB @ 50 Hz or 60 Hz
Common mode rejection ratio
>120 dB @ dc, 50 Hz or 60 Hz (1 k unbalance)
Accuracies apply to ± 100% of range
DC Millivolts Measurement
Range
Resolution
Accuracy ±(% of Rdg + Counts)
600.0 mVdc
0.1 mV
±(0.1% + 1)
DC and AC Current Measurement
AC 45 Hz to 1000 Hz
Range
400 mA
Resolution
0.1 mA
Accuracy ±(% of Rdg+Counts)
±(1.5% + 2)¹
Burden voltage (Typical)
2 mV/mA
Range
60 mA
Resolution
0.01 mA
Accuracy ±(% of Rdg+Counts)
±(1.5% + 2)¹
Burden voltage (Typical)
2 mV/mA
DC
Range
400 mA
Resolution
0.1 mA
Accuracy ±(% of Rdg+Counts)
±(0.2% + 2)
Burden voltage (Typical)
2 mV/mA
Range
60 mA
Resolution
0.01 mA
Accuracy ±(% of Rdg+Counts)
±(0.2% + 2)
Burden voltage (Typical)
2 mV/mA
Overload
600 mA for 2 minutes maximum
Fuse protection for mA input
0.44 mA, 1000 V, IR 10 kA
AC conversion
Inputs are ac-coupled and calibrated to the rms value of sine wave input
Conversions are true-rms responding and specified from 5% to 100% of range. Input signal crest factor can be up to 3 up to 300 mA, decreasing linearly to crest factor ≤1.5 at 600 mA. For non-sinusoidal waveforms add +(2% reading + 2% FS) typical, for a crest factor up to 3.
¹ 1 kHz bandwidth
Ohms Measurement
Range
Resolution
Accuracy +(% of Rdg+Counts)¹
600.0 Ω
0.1 Ω
±(0.9% + 2)
6.000 kΩ
0.001 kΩ
±(0.9% + 2)
60.00 kΩ
0.01 kΩ
±(0.9% + 2)
600.0 kΩ
0.1 KΩ
±(0.9% + 2)
6.000 MΩ
0.001 MΩ
±(0.9% + 2)
50.0 MΩ ²
0.01 MΩ
±(1.5% + 3)
Overload protection
1000 V rms or dc
Open circuit test voltage
<8.0 V dc
Short circuit current
<1.1 mA
¹ Accuracies apply from 0% to 100% of range
² Up to 80% relative humidity
Diode Test
Diode test indication
Display voltage drop: 0.6 V at1.0 mA nominal test current:
Accuracy
±(2% + 3)
Continuity Test
Continuity indication
Continuous audible tone for testresistance below 25 Ω and off above 100 Ω. Maximum Reading; 1000 Ω
Open circuit voltage
<8.0 V
Short circuit current
1.0 mA typical
Overload protection
1000 V rms
Response time
>1 m sec
Frequency Measurement
Range
Resolution
Accuracy ±(% of Rdg+Counts)
99.99 Hz
0.01 Hz
±(0.1% + 1)
999.9 Hz
0.1 Hz
±(0.1% + 1)
9.999 kHz
0.001 kHz
±(0.1% + 1)
99.99 kHz
0.01 kHz
±(0.1% + 1)
Frequency Counter Sensitivity
600.0 mV ac
V ac Sensitivity (RMS Sine Wave)¹ 5 Hz to 20 kHz
100.0 mV
V ac Sensitivity (RMS Sine Wave)¹ 20 kHz to 100 kHz
150.0 mV
DC Trigger Levels¹ to 20 kHz²
NA
6.0 V
V ac Sensitivity (RMS Sine Wave)¹ 5 Hz to 20 kHz
1.0 V
V ac Sensitivity (RMS Sine Wave)¹ 20 kHz to 100 kHz
1.5 V
DC Trigger Levels¹ to 20 kHz²
-400.0 mV and 2.5 V
60.0 V
V ac Sensitivity (RMS Sine Wave)¹ 5 Hz to 20 kHz
10.0 V
V ac Sensitivity (RMS Sine Wave)¹ 20 kHz to 100 kHz
36.0 V
DC Trigger Levels¹ to 20 kHz²
1.2 V and 4.0 V
600.0 V
V ac Sensitivity (RMS Sine Wave)¹ 5 Hz to 20 kHz
100.0 V
V ac Sensitivity (RMS Sine Wave)¹ 20 kHz to 100 kHz
–
DC Trigger Levels¹ to 20 kHz²
12.0 V and 40.0 V
1000.0 V
V ac Sensitivity (RMS Sine Wave)¹ 5 Hz to 20 kHz
300.0 V
V ac Sensitivity (RMS Sine Wave)¹ 20 kHz to 100 kHz
–
DC Trigger Levels¹ to 20 kHz²
12.0 V and 40.0 V
¹ Maximum input for specified accuracy = 10x range (1000 V max). Noise at low frequencies and amplitudes may affect accuracy
² Usable to 100 kHz with full scale input
Capacitance
Range
Resolution
Accuracy ±(% of Rdg+Counts)
1000 nF
1 nF
±(1.2% + 2)
10.00 μF
0.01 μF
±(1.2% + 2)
100.0 μF
0.1 μF
±(1.2% ±90 counts)
9999 μF
1 μF
±(1.2% ±90 counts)
Temperature Measurement
Range
Resolution
Accuracy ±(% of Rdg+Counts)¹
-40 ° C to 537 ° C
0.1 °C
±(1% + 10 counts)
-40 ° F to 998 ° F
0.1 °F
±(1% + 18 counts)
¹ Accuracies apply following 90 minutes settling time after a change in the ambient temperature of the instrument
Insulation Specifications
Measurement range
0.01 MΩ to 2 GΩ
Test voltages
50, 100, 250, 500, 1000 V
Test voltage accuracy
+20%, -0%
Short-circuit test current
1 mA nominal
Auto discharge
Discharge time <0.5 second for C = 1 μF or less
Live circuit detection
Inhibit test if terminal voltage > 30 V prior to initialization of test
Maximum capacitive load
Operable with up to 1 μF load
Output Voltage
50 V (0% to +20%)
Display range
0.01 to 6.00 MΩ
Resolution
0.01 MΩ
Test current
1 mA @ 50 kΩ
Resistance accuracy ±(% of Rdg + Counts)
±(3% + 5 counts)
Display range
6.0 to 50.0 MΩ
Resolution
0.1 MΩ
Test current
1 mA @ 50 kΩ
Resistance accuracy ±(% of Rdg + Counts)
±(3% + 5 counts)
100 V (0% to +20%)
Display range
0.01 to 6.00 MΩ
Resolution
0.01 MΩ
Test current
1 mA @ 100 kΩ
Resistance accuracy ±(% of Rdg + Counts)
±(3% + 5 counts)
Display range
6.0 to 60.0 MΩ
Resolution
0.1 MΩ
Test current
1 mA @ 100 kΩ
Resistance accuracy ±(% of Rdg + Counts)
±(3% + 5 counts)
Display range
60 to 100 MΩ
Resolution
1 MΩ
Test current
1 mA @ 100 kΩ
Resistance accuracy ±(% of Rdg + Counts)
±(3% + 5 counts)
250 V (0% to +20%)
Display range
0.1 to 60.0 MΩ
Resolution
0.1 MΩ
Test current
1 mA @ 250 kΩ
Resistance accuracy ±(% of Rdg + Counts)
±(1.5% + 5 counts)
Display range
60 to 250 MΩ
Resolution
1 MΩ
Test current
1 mA @ 250 kΩ
Resistance accuracy ±(% of Rdg + Counts)
±(1.5% + 5 counts)
500 V (0% to +20%)
Display range
0.1 to 60.0 MΩ
Resolution
0.1 MΩ
Test current
1 mA @ 500 kΩ
Resistance accuracy ±(% of Rdg + Counts)
±(1.5% + 5 counts)
Display range
60 to 500 MΩ
Resolution
1 MΩ
Test current
1 mA @ 500 kΩ
Resistance accuracy ±(% of Rdg + Counts)
±(1.5% + 5 counts)
1000 V (0% to +20%)
Display range
0.1 to 60.0 MΩ
Resolution
0.1 MΩ
Test current
1 mA @ 1 MΩ
Resistance accuracy ±(% of Rdg + Counts)
±(1.5% + 5 counts)
Display range
60 to 600 MΩ
Resolution
1 MΩ
Test current
1 mA @ 1 MΩ
Resistance accuracy ±(% of Rdg + Counts)
±(1.5% + 5 counts)
Display range
0.6 to 2.0 GΩ
Resolution
100 MΩ
Test current
1 mA @ 1 MΩ
Resistance accuracy ±(% of Rdg + Counts)
±(10% + 3 counts)
Weight
1 kg
