Digital multimeter testo 760-3

AUD $400.00 • ( AUD $440.00 inc. GST )

Free Delivery on orders over $500
Shipping time may vary for certain products*

  • Fast Delivery*
  • Technical Support
  • Product Training
  • Calibration Services*
  • Lowest Price Guaranteed
Click here to Make an Enquiry

Product Enquiry

If you would like more information regarding this product, simply email us here.
  • Drop files here or
    Accepted file types: jpg, gif, png, pdf, Max. file size: 1 MB, Max. files: 4.
    • This field is for validation purposes and should be left unchanged.

    testo logo

    • Easy, reliable work thanks to automatic measurement parameter detection
    • Comfortable, one-handed operation without any dial
    • Voltage range up to 1,000 V

    • Additional functions, such as true root mean square measurement – TRMS, low-pass filter and temperature adapter

    The testo 760-3 is the most high-performance model in Testo’s digital multimeter family. In addition to automatic detection of measurement parameters, it is characterized by a voltage measuring range of up to 1,000 V along with large measuring ranges for frequency and capacitance. The digital multimeter is therefore also suitable for industrial applications.

    PDF Datasheet testo-760 Datasheet

    The testo 760-3 digital multimeter is the multitasker for all important professionals in the electricity sector. It enables you to carry out both simple and demanding electrical measuring tasks more reliably than ever before. The testo 760-3 automatically detects the appropriate measurement parameter via the socket assignment and so prevents dangerous incorrect settings.A voltage range of up to 1,000 V, a frequency range of up to 30 MHz and capacitance of up to 60,000 µF mean the testo 760-3 multimeter can also be used for industrial applications, such as troubleshooting in large electrical systems. And the integrated low-pass filter achieves more accurate measurement results on frequency converter controlled motors.Temperatures can also be measured with this multimeter in addition to electrical parameters. You will need the clip-on type K thermocouple adapter and a temperature probe (both items can be ordered separately).

    Applications

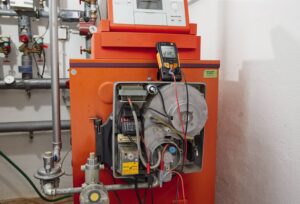

    testo 760-3 TRMS multimeter 230V application

    Ideal for measuring all important electrical parameters

    Automatic detection and selection of measurement parameters, current measurement in the µA range, voltage range up to 1000 V, true root mean square (TRMS) measurement, low pass filter, operation via function keys, large illuminated display, temperature adapter

    Overview of applications

    Testing voltage supply in live wires, current measurement in the lower measuring range, testing voltage supply for frequency-controlled motors, measuring the ionization flow of heating systems, continuity tests on switching components, resistance measurement of sensors or motor windings, easy temperature checking

    Delivery Scope

    testo 760-3 TRMS multimeter, including batteries, 1 set of measuring cables (0590 0010), calibration protocol and instruction manual.
    Weight 0.34 kg

    Specifications

    Temperature – TC Type K (NiCr-Ni)

    Measuring range

    -20 to +500 °C

    Accuracy

    ±1 °C (0 to +100 °C)

    Resolution

    0.2 °C

    DC voltage

    Measuring range

    0.1 to 1000 V

    Resolution

    max. 0.1 mV

    Accuracy

    ± (0.8 % of mv + 3 Digit)

    AC voltage

    Measuring range

    0.1 mV to 1000 V

    Resolution

    max. 0.1 mV

    Accuracy

    ± (1.0 % of mv + 3 Digit)

    DC current

    Measuring range

    0.1 μA to 10 A

    Resolution

    max. 0.1

    Accuracy

    ± (1.5 % of mv + 5 Digit)

    AC current

    Measuring range

    0.1 μA to 10 A

    Resolution

    max. 0.1 μA

    Accuracy

    ± (1.5 % of mv + 5 Digit)

    Resistance

    Resolution

    max. 0.01 Ohm

    Measuring range

    0.01 to 60.00 MOhm

    Accuracy

    ± (1.5 % of mv + 3 Digit)

    Capacitance

    Resolution

    max. 0.01 nF

    Measuring range

    0.001 nF to 60000 μF

    Accuracy

    ± (1.5 % of mv + 5 Digit)

    Frequency

    Resolution

    max. 0.1 Hz

    Measuring range

    0.001 Hz to 60.00 MHz

    Accuracy

    ± (0.1 % of mv + 1 Digit)

    General technical data

    Operating humidity

    0 to 80 %RH

    Weight

    340 g

    Dimensions

    167 x 85 x 45 mm

    Operating temperature

    -10 to +50 °C

    Product colour

    Black

    Connectable probes

    1 x temperature probe (adapter required for type K thermocouples)

    Protection class

    IP64

    Standards

    EN 61326-1; EN 61010-2-033; EN 61140

    Battery type

    3 AAA micro batteries

    Display type

    LCD (Liquid Crystal Display)

    Display size

    2 lines

    Interface

    4 measuring jacks

    Storage temperature

    -15 to +60 °C

    Overvoltage Category

    CAT IV 600V; CAT III 1000V

    Authorizations

    CE; CSA

    Internal_resistance

    11 MOhm (AC / DC)

    Instrument Measurement Functions

    Diode test

    yes

    Continuity testing

    yes

    Current probe measurement with adapter

    yes

    Display ligthing

    yes

    Hold

    yes

    MinMax

    yes

    Temperature measurement with adapter

    yes

    True RMS

    yes

    Low-pass filter

    yes

    Duty cycle measurement

    yes

    Display (counts)

    6,000

    μA current measuring range

    yes

    Autom. measurement parameter detection

    yes
