Digital multimeter testo 760-1

AUD $180.00 • ( AUD $198.00 inc. GST )

Free Delivery on orders over $500
Shipping time may vary for certain products*

  • Fast Delivery*
  • Technical Support
  • Product Training
  • Calibration Services*
  • Lowest Price Guaranteed
Click here to Make an Enquiry

Product Enquiry

If you would like more information regarding this product, simply email us here.
  • Drop files here or
    Accepted file types: jpg, gif, png, pdf, Max. file size: 1 MB, Max. files: 4.
    • This field is for validation purposes and should be left unchanged.

    testo logo

    • Easy, reliable operation through automatic measurement parameter detection
    • Prevents incorrect settings
    • Suitable for almost all electrical measuring tasks
    • Clear, illuminated display

    No dial, no risk: The testo 760-1 digital multimeter gives you easier and more reliable measurement of all important electrical parameters than ever before. Assignment of the measuring sockets enables automatic detection of measurement parameters. You don’t need to make any adjustments – and you can’t make any mistakes.

    PDF Datasheet testo-760 Datasheet

    When measuring electrical parameters such as current, voltage or resistance, you depend on absolutely reliable measuring instruments. The testo 760-1 hands you a digital multimeter which sets new standards in terms of reliability.In comparison to standard multimeters on the market, with the testo 760-1 there is no need to first select the measuring sockets and then the measurement function. The instrument detects the appropriate measurement parameter via the socket assignment all on its own – and so rules out any dangerous incorrect settings.The operation of the multimeter is easier and more modern than ever. The traditional dial is replaced by function keys, enabling you to control the instrument with just one hand. And thanks to the large, illuminated display you can see your readings clearly at a glance. The testo 760-1 has the most important functions for your daily measuring tasks and is therefore the ideal entry-level instrument in the digital multimeter class.

    Applications

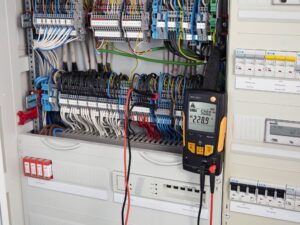

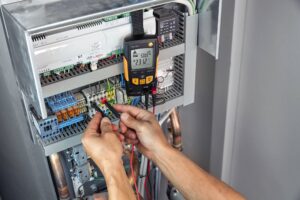

    testo 760-1 multimeter application  testo 760-1 multimeter application

    Ideal for measuring all important electrical parameters

    Automatic detection and selection of measurement parameters, operation via function keys, large illuminated display

    Overview of applications

    Testing voltage supply in live wires, current measurement in the lower measuring range, continuity tests on switching components, resistance measurement of sensors or motor windings

    Delivery Scope

    testo 760-1 multimeter, including batteries, 1 set of measuring cables (0590 0010), calibration protocol and instruction manual.
    Weight 0.34 kg

    Specifications

    DC voltage

    Measuring range

    0.1 to 600 V

    Resolution

    max. 0.1 mV

    Accuracy

    ± (0.8 % of mv + 3 Digit)

    AC voltage

    Measuring range

    0.1 mV to 600 V

    Resolution

    max. 0.1 mV

    Accuracy

    ± (1.0 % of mv + 3 Digit)

    DC current

    Measuring range

    0.1 mA to 10 A

    Resolution

    max. 0.1

    Accuracy

    ± (1.5 % of mv + 5 Digit)

    AC current

    Measuring range

    0.1 mA to 10 A

    Resolution

    max. 0.1 mA

    Accuracy

    ± (1.0 % of mv + 3 Digit)

    Resistance

    Resolution

    max. 0.1 Ohm

    Measuring range

    0.1 to 40.00 MOhm

    Accuracy

    ± (1.5 % of mv + 3 Digit)

    Capacitance

    Resolution

    max. 0.01 nF

    Measuring range

    0.001 nF to 100 μF

    Accuracy

    ± (1.5 % of mv + 5 Digit)

    Frequency

    Resolution

    max. 0.001 Hz

    Measuring range

    0.001 Hz to 512.0 kHz

    Accuracy

    ± (0.1 % of mv + 1 Digit)

    General technical data

    Operating humidity

    0 to 80 %RH

    Weight

    340 g

    Dimensions

    167 x 85 x 45 mm

    Operating temperature

    -10 to +50 °C

    Product colour

    Black

    Protection class

    IP64

    Standards

    EN 61326-1; EN 61010-2-033; EN 61140

    Battery type

    2 AAA micro batteries

    Display type

    LCD (Liquid Crystal Display)

    Display size

    2 lines

    Interface

    4 measuring jacks

    Storage temperature

    -15 to +60 °C

    Overvoltage Category

    CAT III 600V; CAT IV 300V

    Authorizations

    CSA; CE

    Internal_resistance

    11 MOhm (AC / DC)

    Instrument Measurement Functions

    Diode test

    yes

    Continuity testing

    yes

    Display ligthing

    yes

    Hold

    yes

    MinMax

    yes

    Display (counts)

    4,000

    Autom. measurement parameter detection

    yes
