Easy, reliable work thanks to automatic measurement parameter detection
Current measurement in the µA range
True root mean square measurement – TRMS
Low-pass filter for accurate measurement results on frequency converter controlled motors

The testo 760-2 digital multimeter is the allrounder for all important electrical measuring tasks. Thanks to the automatic detection of measurement parameters, it offers the greatest possible reliability for every application. You can also measure current in the µA range and determine the true root mean square using this digital multimeter.

PDF Datasheet testo-760 Datasheet

Categories: Multimeter, TESTO Tags: Digital multimeter, Multimeter, TESTO, testo 760-2

–

The testo 760-2 digital handheld multimeter means you can measure electrical parameters more easily and reliably than ever before. In contrast to other multimeters, the testo 760-2 automatically detects the appropriate measurement parameter via the socket assignment – and therefore rules out any dangerous incorrect settings.

It is not operated conventionally by a dial, but with illuminated function keys. This means you can easily control the measuring instrument with just one hand. The large, illuminated display shows the readings clearly.

The testo 760-2 digital multimeter has the most important functions for measuring current, voltage and resistance. The measurement of current strength is also possible in the µA range thanks to the larger measuring range. And the integrated low-pass filter achieves more accurate measurement results on frequency converter controlled motors.
Temperatures can also be measured with this multimeter in addition to electrical parameters.

Ideal for measuring all important electrical parameters

Automatic detection and selection of measurement parameters, current measurement in the µA range, true root mean square (TRMS) measurement, low pass filter, operation via function keys, large illuminated display, temperature adapter

Overview of applications

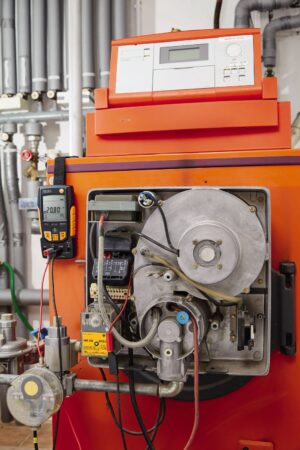

Testing voltage supply in live wires, current measurement in the lower measuring range, testing voltage supply for frequency-controlled motors, measuring the ionization flow of heating systems, continuity tests on switching components, resistance measurement of sensors or motor windings, easy temperature checking

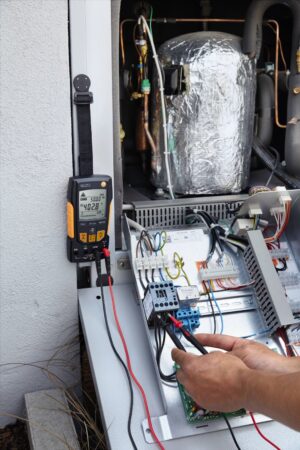

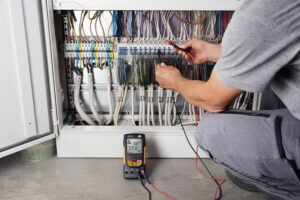

testo 760-2 TRMS multimeter 230V application

Delivery Scope

testo 760-2 TRMS multimeter, including batteries, 1 set of measuring cables (0590 0010), 1 x adapter for thermocouples type K, calibration protocol and instruction manual.

Weight	0.34 kg

Specifications

Temperature – TC Type K (NiCr-Ni)
Measuring range	-20 to +500 °C
Accuracy	±1 °C (0 to +100 °C)
Resolution	0.2 °C

DC voltage
Measuring range	0.1 to 600 V
Resolution	max. 0.1 mV
Accuracy	± (0.8 % of mv + 3 Digit)

AC voltage
Measuring range	0.1 mV to 600 V
Resolution	max. 0.1 mV
Accuracy	± (1.0 % of mv + 3 Digit)

DC current
Measuring range	0.1 μA to 10 A
Resolution	max. 0.1
Accuracy	± (1.5 % of mv + 5 Digit)

AC current
Measuring range	0.1 μA to 10 A
Resolution	max. 0.1 μA
Accuracy	± (1.5 % of mv + 5 Digit)

Resistance
Resolution	max. 0.01 Ohm
Measuring range	0.01 to 60.00 MOhm
Accuracy	± (1.5 % of mv + 3 Digit)

Capacitance
Resolution	max. 0.01 nF
Measuring range	0.001 nF to 30000 μF
Accuracy	± (1.5 % of mv + 5 Digit)

Frequency
Resolution	max. 0.1 Hz
Measuring range	0.001 Hz to 30.00 MHz
Accuracy	± (0.1 % of mv + 1 Digit)

General technical data
Operating humidity	0 to 80 %RH
Weight	340 g
Dimensions	167 x 85 x 45 mm
Operating temperature	-10 to +50 °C
Product colour	Black
Protection class	IP64
Standards	EN 61326-1; EN 61010-2-033; EN 61140
Battery type	3 AAA micro batteries
Display type	LCD (Liquid Crystal Display)
Display size	2 lines
Interface	4 measuring jacks
Storage temperature	-15 to +60 °C
Overvoltage Category	CAT III 1000V; CAT IV 600V
Authorizations	CSA CSA; CE
Internal_resistance	11 MOhm (AC / DC)

Instrument Measurement Functions
Diode test	yes
Continuity testing	yes
Current probe measurement with adapter	yes
Display ligthing	yes
Hold	yes
MinMax	yes
Temperature measurement with adapter	yes
True RMS	yes
Low-pass filter	yes
Duty cycle measurement	yes
Display (counts)	6,000
μA current measuring range	yes
Autom. measurement parameter detection	yes
