UNI-T UT222 |- 2500A Digital Clamp Meter

Name: UNI-T UT222 |- 2500A Digital Clamp Meter
Brand: UNI-T
SKU: UNI-T,UT222
Availability: InStock

$620.00 .( $682.00 inc. GST )

For all your equipment calibration needs, visit our MyCalibration website.

Free Delivery on orders over $1000
Shipping time may vary for certain products*

Click here to Make an Enquiry

Product Enquiry

If you would like more information regarding this product, simply email us here.

The UNI-T UT222 is a high-performance digital clamp meter from the UT220 series. Capable of measuring up to 2500A of AC/DC current, this reliable device is perfect for professionals seeking accurate current measurements. With built-in overload protection and certifications such as CE, UKCA, and cETLus, the UT222 guarantees safety and reliability in the field. Upgrade your equipment with this essential tool for precise current measurements.

UT222 Data Sheet

SKU: UNI-T,UT222 Categories: AC/DC Clamps, UNI-T Tags: 2500A Digital Clamp Meter, UNI-T

The UNI-T UT220 series consists of three models— UT220, UT221, and UT222—all of which provide accurate measurements from 2000 amperes (2500A for the UT222). The different models offer unique features suitable for professional use including auto-range measurement capabilities; audio notifications when testing continuity; DATA HOLD functions; MIN / MAX recordings; Diode Test Functionality; low battery indication; and more. All UT220 models are certified with CE, UKCA, & cETLus standards for safety & reliability.

The specifications of the Utility 222 include an AC current range of 2500A ±(1.5%+5), a DC current range of 2500A ±(1.5%+5), an AC voltage range of 1000V ±(1%+3), a DC voltage range of 1000V ±(0.5%+2), a resistance range of 60MΩ ±(1%+2) and a capacitance range of 60mF ±(3%+5). The frequency range is up to 60MHz ±(1 % +10). With its overload protection feature and its versatile design that can measure various electrical values accurately, the UT222 series 2000A Digital Clamp Meters should be your top choice!

Features of UT222 Series 2500A Digital Clamp Meters

Certifications: CE, UKCA, cETLus

Auto range
Continuity buzzer
MAX/MIN
Diode
Data hold
Low battery indication

Applications of UT220 Series 2000A Digital Clamp Meters

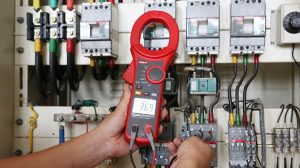

UT220 AC voltage measurement

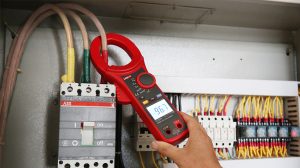

UT220 AC current measurement

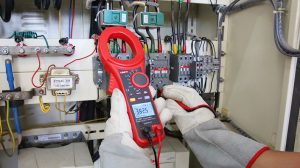

UT221 voltage measurement

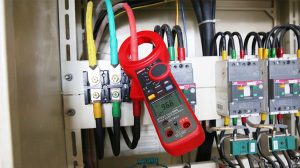

UT221 current measurement

Weight	3 kg

Specifications

Specifications of UT220 Series 2000A Digital Clamp Meters

Specifications	Range	UT220	UT221	UT222
AC current (A)	2000A	±(2.5%+5)	±(2.5%+5)
AC current (A)	2500A			±(1.5%+5)
DC current (A)	2000A		±(2.5%+5)
DC current (A)	2500A			±(1.5%+5)
AC voltage (V)	750V	±(1.2%+5)	±(1.2%+5)
AC voltage (V)	1000V			±(1%+3)
DC voltage (V)	1000V	±(0.8%+1)	±(0.8%+1)	±(0.5%+2)
Resistance (Ω)	20MΩ	±(1%+2)
	60MΩ			±(1%+2)
	66MΩ		±(1%+2)
Capacitance (F)	60mF			±(3%+5)
Frequency (Hz)	20MHz		±(0.1%+3)
Frequency (Hz)	60MHz			±(0.1%+3)
Temperature	-40°C~1000°C			±(1%+10)
Temperature	-40°F~1832°F			±(1%+18)
Features
Display count		2000	6000	6000
Auto range/Diode		√	√	√
Jaw opening		63mm	63mm	63mm
True RMS (AC voltage/AC current)			√	√
Duty cycle	10%~90%		√	√
Continuity buzzer		√	√	√
AC+DC				√
Low pass filter			√	√
Inrush current	AC current		√	√
Relative mode			√	√
Data hold/MAX		√	√	√
MIN/I-OUT function			√	√
Data storage				1000
Analog bar graph			66	61
Full icon display		√	√	√
Low battery indication		√	√	√
Input impedance	≥10MΩ	√	√	√
General Characterisitics
Power	9V battery (6F22)
Display	43mm x 30mm
Product color	Red and grey
Product net weight	UT220: 389g; UT221/UT222: 726g
Product size	298mm x 107mm x 47mm
Standard accessories	Test leads, output cable (UT221/UT222), thermocouple (UT222)
Standard individual packing	Gift box, carrying bag (UT220), tool box (UT221/UT222), English manual
Standard quantity per carton	UT220: 40pcs; UT221/UT222: 5pcs
Standard carton measurement	UT220: 645mm x 600mm x 330mm; UT221/UT222: 510mm x 375mm x 320mm
Standard carton gross weight	UT220: 30.1kg; UT221: 12.1kg; UT222: 11.9kg
