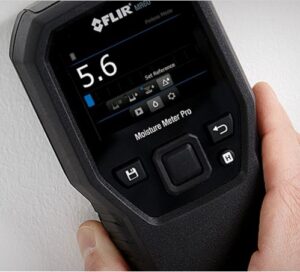

The FLIR MR60 Moisture Meter Pro is an easy-to-use pin and pinless moisture meter with advanced functionality.

An integrated pinless sensor and an external pin probe provide the fleibility to take destructive or non-destructive measurements.

Select one of the eleven material groups for pin moisture, or set a reference point for pinless moisture scanning. Then conveniently save screenshots of your measurements as a CSV file with the date, time, and settings.

FLIR MR60 Datasheet

SKU: MR60 Categories: FLIR, Moisture, Moisture Meter Tags: Flir, Moisture Meters, MR60

FLIR MR60 Moisture Meter Pro FEATURES:

Pin and Pinless
Integrated pinless moisture measurements for fast detection, and external pin probe included with expandable probe options

Color Display
Bright, easy-to-read display with large digits and color bargraph

Save Readings
Save up to 10,000 screenshots, then transfer and view them via PC/USB

FLIR Tools
Includes FLIR Tools professional reporting software for Mac or PC

Durable
Can withstand a 3-meter drop

Warranty
FLIR’s unique 2-10 warranty, covering parts and labor for two years and the detector for ten

CLEAR, ACCURATE READINGS

Choose from 11 material group selections for pin-based readings, then save up to 10,000 screenshots that you can transfer and view via PC/USB. Set a programmable alarm with audible and color visual alerts to notify you of high moisture.

FLEXIBILITY FOR DESTRUCTIVE OR NON-DESTRUCTIVE MEASUREMENTS

Quickly scan for moisture using the integrated pinless moisture sensor. An external pin probe is included for resistive moisture content measurements in a variety of substrates.

SIMPLE TO USE AND CREATE REPORTS

MR60 features a bright, easy-to-read color display and intuitive graphical user interface with helpful function labels in local languages. Save files and generate reports with free FLIR Tools PC software. No special training required!

Weight	0.5 kg

Specifications

FLIR MR60 Moisture Meter Pro


Pin Moisture Via External Probe Range	Wood groups 1-9: 1-5: oak, most maples, pine, hickory, teak, sycamore 6-9: building materials: plywood, drywall, OCD	7% – 30% 30 % – 100%	±1.5% (reference only)
Pin Moisture Via External Probe Range	Construction material groups: 10: brick, cement screed, concrete 11: cement mortar, anhydrite screed, lime mortar, plaster	0- 20%	(reference only)
Pinless Moisture Range	0–100 relative measurement
Pinless Moisture Depth	1.9cm maximum
Sample Rate	10Hz (approx., both modes)
Measurement Resolution	0.1
Response Time Pinless	100 ms
Response Time Pin Mode	750 ms

General Information
Display type (W × H)	QVGA (320 × 240) pixel 2.3” 64K color TFT graphical display
Stored Data File Format	Comma Separated Values (.csv) format with date/time stamp. Reading value, reading type included
Saved Image File Format	Bitmap (.bmp) with measurement values overlaid
Stored Image Capacity	9999 images
Internal Memory	4GB
Certification Standards	EN61326 (EMC), EN61010 (Battery + Charger)
Agency Approvals	FCC Class B, CE, UL
Power Requirements	Integrated rechargeable battery
Continuous Run Time	18 hours max
Typical Usage	4 work weeks
Auto Power Off	Programmable: OFF, 1, 5, or 20 minutes
Power Adapter	100–240 V input/ 5 V 1A output
Battery	3.7 V, 3000mAh Li-ion rechargeable via micro USB
IP Rating/Drop Test	IP54 / 3m
Operating Temperature	0~50 °C
Storage Temperature	-10~60°C
Operating Humidity	≤ 90%, 0~30°C ≤ 75%, 30~40°C ≤ 45%, 40~50°C
Storage Humidity	90% RH
