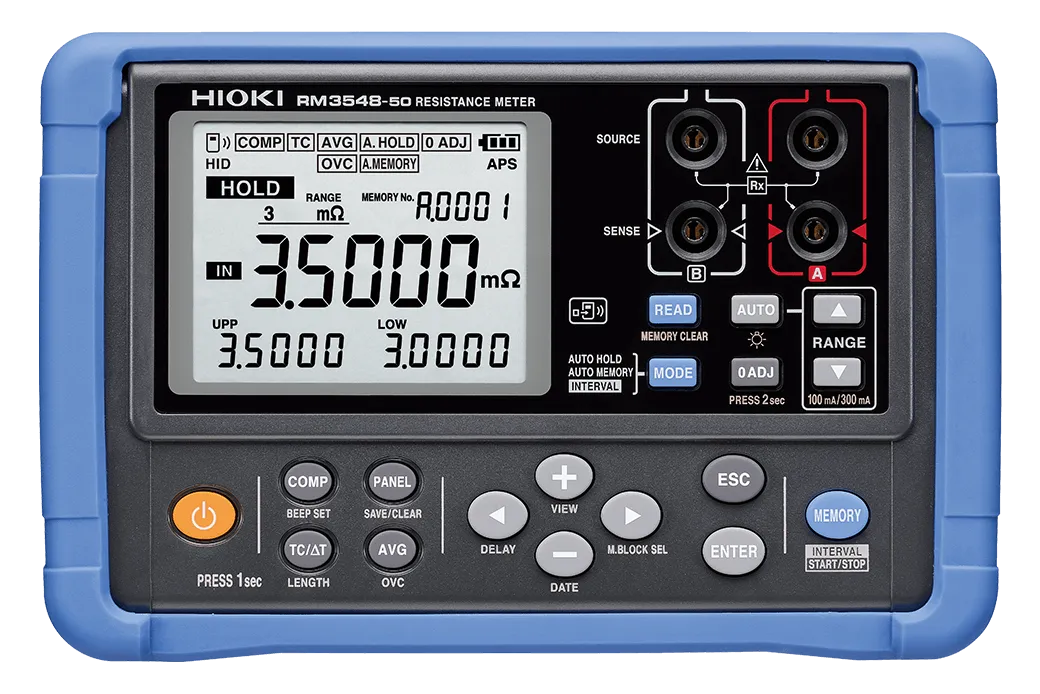

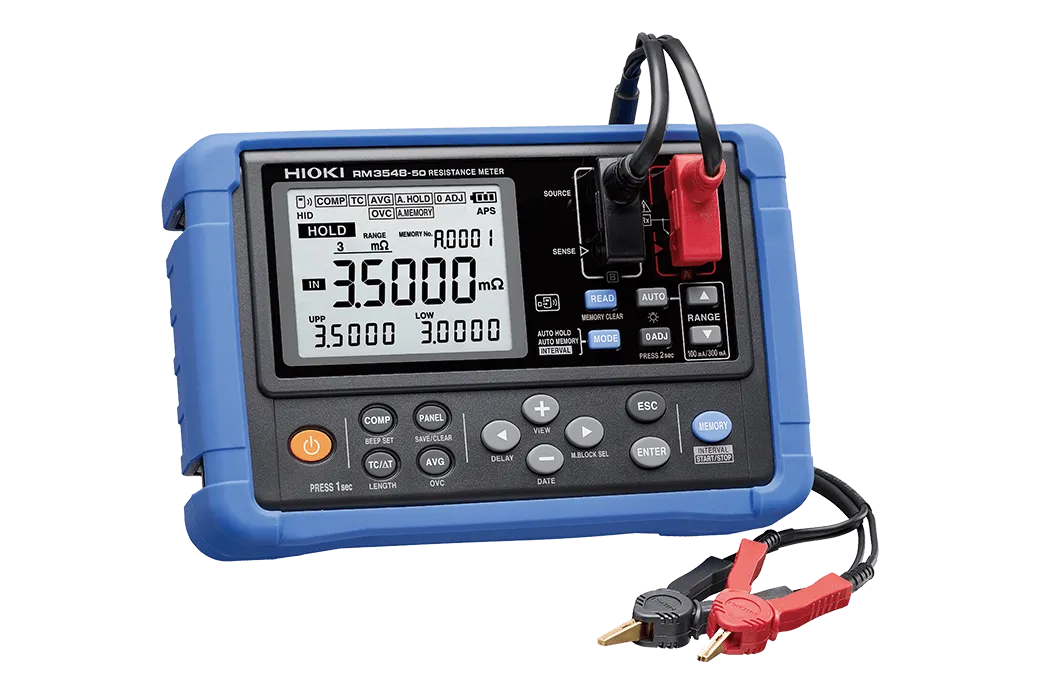

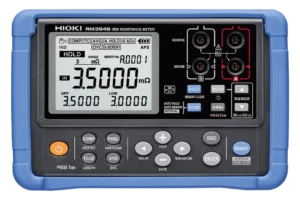

Hioki RM3548 Portable High-Precision Resistance Meter | Measure from µΩ to MΩ | Ideal for Motor Testing, EV Maintenance & Low-Resistance Measurements
$2,800.00 .( $3,080.00 inc. GST )
Product successfully added to the Quote List
For all your equipment calibration needs, visit our MyCalibration website.
Free Delivery on orders over $1000
Shipping time may vary for certain products*
Product Enquiry
If you would like more information regarding this product, simply email us here.
Boost your testing precision with the HIOKI RM3548 Resistance Meter, a portable and reliable solution for accurate resistance measurements. Designed for professionals, this high-precision resistance meter measures everything from microohms to megaohms, making it perfect for testing large motors, transformers, and electric vehicle (EV) components. With 0.02% accuracy, temperature correction, and offset voltage correction, the RM3548 ensures compliance with ECE standards for EV testing. Its compact design and 10-hour battery life make it ideal for on-the-go field use. Upgrade your testing tools today with the HIOKI RM3548 for accurate, efficient, and portable resistance measurement.
Brochure: RESISTANCE METER RM3544/ RM3548
HIOKI RM3548 RESISTANCE METER – Portable, High-Precision Tester for Accurate Resistance Measurements
Looking for a reliable and accurate resistance meter? The Hioki RM3548 Resistance Meter is the perfect tool for technicians and engineers, offering high precision, portability, and advanced features. Whether you’re working in the field or a lab, this resistance tester is designed to simplify your testing and maintenance tasks with unbeatable accuracy and a wide measurement range.
Unmatched Accuracy and Broad Resistance Range
The Hioki RM3548 delivers precise resistance measurements with a basic accuracy of 0.02% and a maximum resolution of 0.1 µΩ. It measures resistance from 0.0 µΩ to 3.5 MΩ, making it ideal for a variety of applications. This portable resistance meter is perfect for tasks like evaluating motor winding resistance, weld resistance, and performing equipotential bonding tests on electric vehicles (EVs).
Top Features of the Hioki RM3548 Resistance Meter
- High Accuracy: 0.02% basic accuracy and 0.1 µΩ resolution for precise results every time.
- Wide Measurement Range: Measures from 0.0 µΩ (with 1 A test current) up to 3.5 MΩ.
- Data Logging: Store up to 1,000 measurement points for efficient reporting.
- Temperature-Rise Testing: Perform interval measurements to track temperature changes.
- Portable Design: Lightweight and easy to carry, ideal for fieldwork and on-site testing.
Built for Fieldwork and Maintenance
The Hioki RM3548 is designed for portability, with an ergonomic design and an included strap for hands-free operation. Powered by eight AA batteries, it delivers up to 10 hours of continuous use, ensuring it’s ready for long testing sessions. The durable clip-type leads and neck strap make it easy to manage during demanding tasks.
Advanced Features for Accurate Results
- Offset Voltage Correction: Eliminate interference from thermoelectromotive forces caused by temperature differences at contact points, ensuring highly accurate measurements.
- Temperature Correction: Adjust resistance measurements to a reference temperature using the Temperature Sensor Z2002, for consistent results in varying conditions.
- EV Compliance: Fully compliant with ECE-R100 and ECE-R136 standards, the RM3548 meets the required current of at least 0.2 A, making it ideal for equipotential bonding tests on electric vehicles.
Why Choose the Hioki RM3548 Resistance Meter?
The Hioki RM3548 is the ultimate tool for technicians and engineers who need precision, portability, and reliability. Whether you’re testing low resistance in transformers, motors, or electric vehicles, this resistance tester offers the advanced features you need to get accurate results every time.
Upgrade your testing equipment today with the Hioki RM3548 Resistance Meter! Perfect for motor winding tests, EV compliance, temperature correction, and more. Experience unmatched accuracy and ease of use with this portable resistance tester.
Order your Hioki RM3548 Resistance Meter now to take your testing and maintenance to the next level!
| Weight | 1 kg |
|---|
Specifications
Basic specifications
| Resistance range | 3 mΩ (3.5000 mΩ display Max., 0.1 µΩ resolution) to 3 MΩ range (3.5000 MΩ display Max., 100 Ω resolution), 10 steps Measurement accuracy: ±0.020 % rdg. ±0.007 % f.s. |
|||||
|---|---|---|---|---|---|---|
| Testing current | [at 3 mΩ range] 1 A DC to [at 3 MΩ range] 500 nA DC | |||||
| Open-terminal voltage | 5.5 V DC max. | |||||
| Temperature measurement | -10.0 to 99.9°C, accuracy: ±0.50°C (Temperature Sensor Z2002 and RM3548 combined accuracy) | |||||
| Measurement speed | Fixed | |||||
| Display refresh rate | Without OVC: approx. 100ms, With OVC: approx. 230ms | |||||
| Functions | Temperature correction, temperature conversion, offset voltage compensation (OVC), comparator (ABS/REF%), length conversion, judgment sound setting, auto hold, auto power save (APS), Averaging, panel store/panel load, USB communication interface (RM3548 internal memory is recognized as a mass storage device when connected to a PC) |
|||||
| Memory storage | Number of recordable data points: (manual/auto) Up to 1,000, (interval) Up to 6,000; Interval: 0.2 to 10.0s (0.2s steps); Acquisition of data from memory: display, USB mass storage (CSV, TXT files) | |||||
| Power supply | LR6 (AA) Alkaline batteries ×8, Continuous use: 10 hours (Under our company’s conditions), Rated power consumption: 5 VA max. | |||||
| Dimensions and mass | 192 mm (7.56 in) W × 121 mm (4.76 in) H × 55 mm (2.17 in) D, 770 g (27.2 oz) | |||||
| Included accessories | Clip type lead L2107 ×1, Temperature sensor Z2002 ×1, LR6 Alkaline battery ×8, Instruction manual ×1, USB Cable(A-to-mini B type) ×1, Strap ×1, Spare fuse ×1 | |||||
Features
Reduce the effects of thermoelectromotive force with the offset voltage correction
Thermoelectromotive force refers to the potential difference that occurs at junctions between different metals (see figure). Specifically, the phenomenon occurs where measurement probes and measurement targets come into contact, and at connections between measuring instruments and measurement leads. The magnitude of this thermoelectromotive force varies with the temperature of the measurement environment, increasing as the temperature difference grows. The RM3548 includes an offset voltage correction function that applies the measurement current in both the positive and negative directions and then uses the resulting detected voltages to eliminate the effects of thermoelectromotive force.
Correct resistance values, which vary with temperature, to a reference temperature with the temperature correction function
Temperature correction functions can convert readings to resistance values at a user-specified reference temperature and display the results, even for materials such as copper wire whose resistance varies with temperature. The RM3548’s temperature correction function converts the measured resistance value Rt at the current temperature t to the resistance value Rt0 at the reference temperature t0, as shown in the figure. The Temperature Sensor Z2002 (which comes with the RM3548) is used to perform temperature correction.
Standard-compliant measurement current for EV’s equipotential bonding test
The RM3548 stands out as the perfect resistance meter for technicians performing equipotential tests on electric vehicles. This meter complies with the ECE-R-100 and ECE-R136 standards, meeting measurement current requirements of at least 0.2 A. Its measurement current ranges from 500 nA to 1 A, ensuring accurate and reliable readings.
