The Hioki AC Clamp Meter 3280-10F is a compact, durable tool for electricians, offering current, voltage, and resistance measurements. It features a -25°C to 65°C range, 1000A capability, and optional flexible sensors for tight spaces. Perfect for professional electrical work, it’s drop-proof and built for harsh environments.

Hioki 3280-10F Datasheet Hioki CLAMP METER Series Brochure

SKU: 10366 Categories: HIOKI, Light/Lux Meter Tags: Clampmeters, Hioki

Hioki AC Clamp Meter 3280-10F – Compact, Durable, and Professional-Grade

Looking for a reliable and efficient tool for electrical work? The Hioki AC Clamp Meter 3280-10F is a rugged and compact device designed for professional electricians. With advanced current sensing technology and a range of powerful features, this clamp meter is perfect for measuring current, voltage, resistance, and checking continuity in the toughest environments. Whether you’re working in extreme temperatures or tight spaces, the 3280-10F is the essential tool you need to get the job done.

Ratings:
CAT IV 300 V (Current)
CAT III 600 V (Current)
CAT III 300 V (Voltage)

Why Choose the Hioki AC Clamp Meter 3280-10F?

The 3280-10F is a highly versatile and durable clamp meter that combines precision, portability, and advanced functionality. It measures AC current up to 1000A using the average rectified method and can operate in a broad temperature range of -25°C to 65°C. Its thin and compact clamp core makes it ideal for use in confined spaces, while its optional flexible current sensor (CT6280) allows you to measure up to an impressive 4199A in thick, tangled, or hard-to-reach wires.

Key Features of the Hioki 3280-10F

Multi-functional measurement capabilities: Measures AC current, voltage, resistance, and performs continuity checks.
Average rectified method: Captures the fundamental waveform component for accurate readings.
Wide operating temperature range: Functions seamlessly between -25°C and 65°C, making it ideal for harsh environments.
Optional flexible sensor: Attaches to measure up to 4199A in complex wire arrangements.
Durable design: Drop-proof from a height of 1 meter, ensuring reliability even with rough handling.
Compact and portable: Pocket-sized design allows you to carry it conveniently while delivering the functionality of a full-sized clamp meter.

Work Smarter with the 3280-10F

The Hioki 3280-10F isn’t just a clamp meter; it’s an all-in-one tool for busy electricians. Its small, card tester-like size belies its powerful features, including current and voltage measurement, resistance checking, and continuity testing. This makes it perfect for professionals who need a versatile, easy-to-carry instrument that can handle multiple tasks quickly and accurately.

Built for Tough Environments

Designed to withstand the rigors of electrical work, the Hioki 3280-10F features a drop-proof construction, surviving falls from up to 1 meter onto concrete. Its expanded temperature range ensures reliability in extreme weather conditions, from freezing cold to scorching heat.

Conclusion

The Hioki AC Clamp Meter 3280-10F is the perfect combination of durability, portability, and advanced measurement capability. Whether you’re navigating tight spaces, working in extreme conditions, or handling complex electrical systems, this clamp meter is your go-to tool. Get the Hioki 3280-10F today and experience professional-grade performance in a compact, rugged package!

Weight	.5 kg

Specifications

Basic specifications

Accuracy guaranteed: 1 year

AC Current range	41.99 to 1000 A, 3 ranges (50 Hz to 60 Hz, Average rectified), Basic accuracy: ±1.5 % rdg. ±5 dgt.
DC Voltage range	419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.0 % rdg. ±3 dgt.
AC Voltage range	4.199 V to 600 V, 4 ranges (45 to 500 Hz, Average rectified), Basic accuracy: ±1.8 % rdg. ±7 dgt.
Crest factor	N/A
Resistance range	419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2 % rdg. ±4 dgt.
Other functions	Continuity: Buzzer sounds at 50 Ω ±40 Ω or less, Data hold, Auto power save, Drop-proof from height of 1 meter
Display	LCD, max. 4199 dgt., Display refresh rate: 400 ms
Environmental protection	IP40 dustproof and waterproof (while in storage)
Power supply	Coin type lithium battery (CR2032) ×1, Continuous use 120 hours
Core jaw dia.	φ 33 mm (1.30 in)
Dimensions and mass	57 mm (2.24 in) W × 175 mm (6.89 in) H × 16 mm (0.63 in) D, 100 g (3.5 oz)
Included accessories	CARRYING CASE 9398 ×1, TEST LEAD L9208 ×1, Coin type lithium battery (CR2032) ×1, Instruction manual ×1

CT6280 Basic specifications

Accuracy guaranteed: 1 year

Core jaw dia.	φ 130 mm (5.12 in) (Cable cross-section diameter: 5 mm (0.20 in); tip cap diameter: 7 mm (0.28 in))
AC Current	419.9 A/ 4199 A, 2 ranges (±3.0 % rdg. ±5 dgt.)
Cable length	800 mm (31.5 in)

Features

Using 3280 series AC clamp meters: Difference between mean value and true RMS measurement

Measurements taken with the Hioki 3280-10F (which uses the mean value method) and the the Hioki 3280-20F (which uses the true RMS method) are compared.
Observe the difference between readings from these two types of instruments when measuring a distorted waveform that contains harmonic components such as those produced by inverters and switching power supplies.

A pocket clamp meter that can use flexible sensors

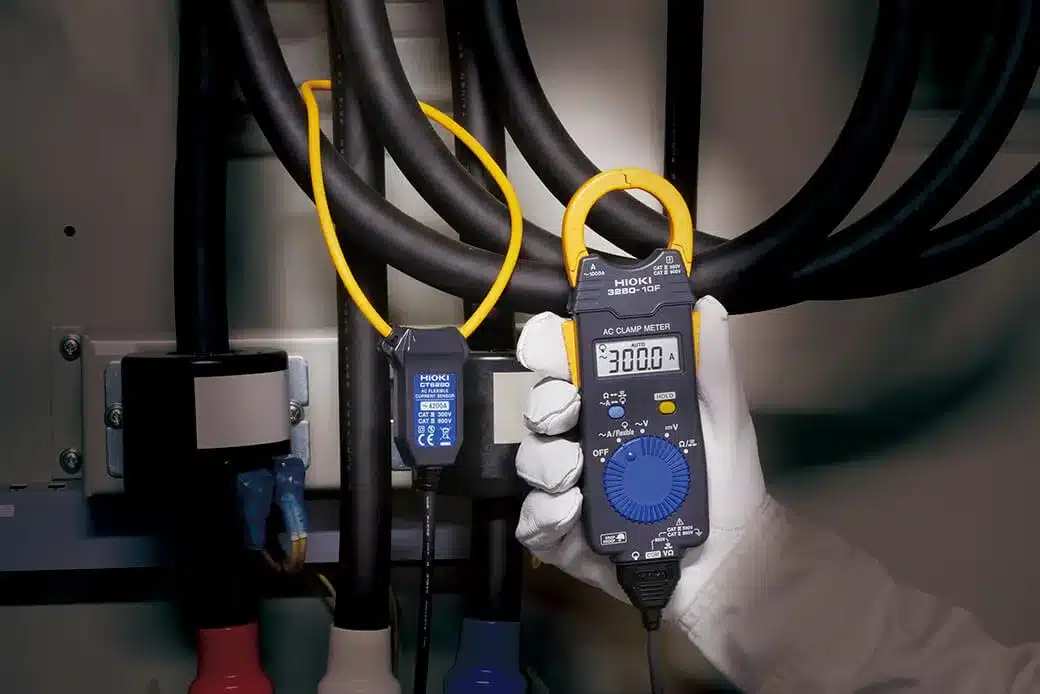

When connected to an optional flexible current sensor, the 3280-10F can be used to measure the current flowing in pairs of wires or in tangled or complexly routed wires around which it was not possible to apply a clamp-on sensor in the past.

Essential for electrical work: A thin card tester that fits in the pocket with all the capabilities of a clamp meter

The 3280-10F delivers all the functionality of a clamp meter and card tester in the form factor of the latter. In addition to current measurement, this single instrument delivers voltage measurement, continuity check, and resistance measurement functionality.

A tough, pocket-size clamp meter with an operating temperature range of -25°C to 65°C

The 3280-10F inherits the drop-proof durability of the previous 3280-10 (making it able to withstand being dropped onto concrete from a height of 1 m) and expands that instrument’s operating temperature range to -25°C to 65°C (from the previous 0°C to 40°C). As a result, it can be used in even harsher environments.
