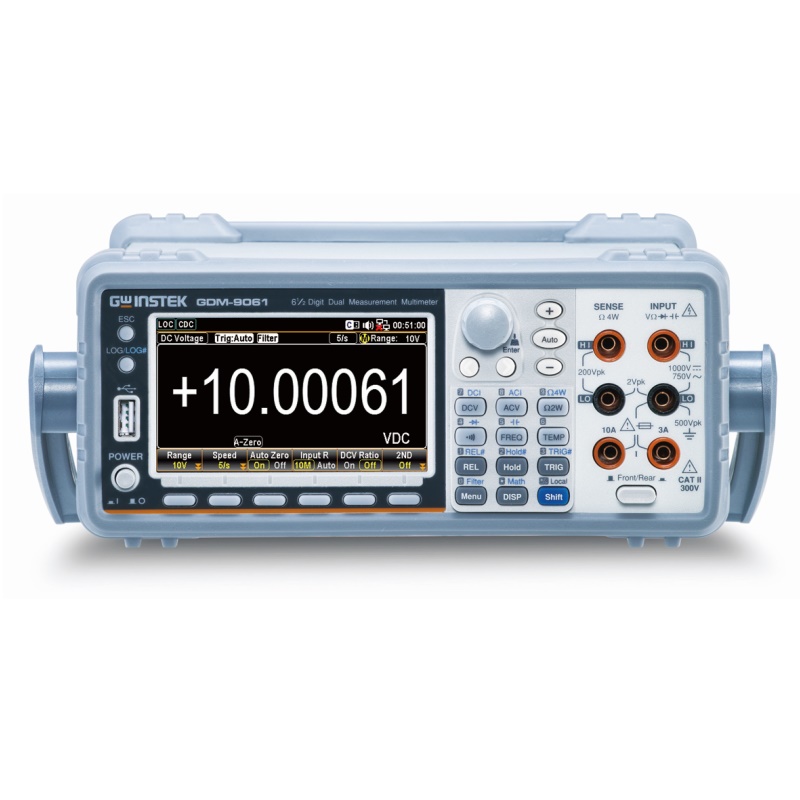

GW-Instek GDM-9061 Dual Measurement System Multimeter
$1,575.00 .( $1,732.50 inc. GST )
- 🎉 Save more when you spend more
- 5% off over $2000 + GST
- 10% off over $5000 + GST
*until 31st Dec 2025!
For all your equipment calibration needs, visit our MyCalibration website.
Free Delivery on orders over $1000
Shipping time may vary for certain products*
Product Enquiry
If you would like more information regarding this product, simply email us here.
The GDM-9061 provides all fundamental measurement functions that engineers require to design, develop, and test electronic circuits or products, including voltage, current, resistance, diode, and continuity beeper, frequency, temperature and capacitance.
The GDM-9061 also features mathematical functions (dB, dBm, Compare, MX+B, 1/X and Percent), statistical functions (Min/Max/Average/P-P/STDEV), and a variety of standard communications interfaces.
Features
• Multi functions: ACV, DCV, ACI, DCI, 2W/4W R, Hz, Temp, Continuity, Diode, Period, Capacitance test,
REL, dBm, Hold, MX+B, 1/X, REF%, dB, Compare & Statistics.
• Manual or Auto ranging
• AC true RMS
• Built-in DC Ratio function
• Standard SCPI command set in emulation compatible with Agilent 34401A
• Up to 3 temperature measurements: RTD, Thermistor and Thermocouples (Cold-Junction Compensation)
• Graph Display: Bar Graph, TrendChart, Histogram
GDM-9061 Datasheet
GDM-9061 Specifications
GDM-9061 User Manual

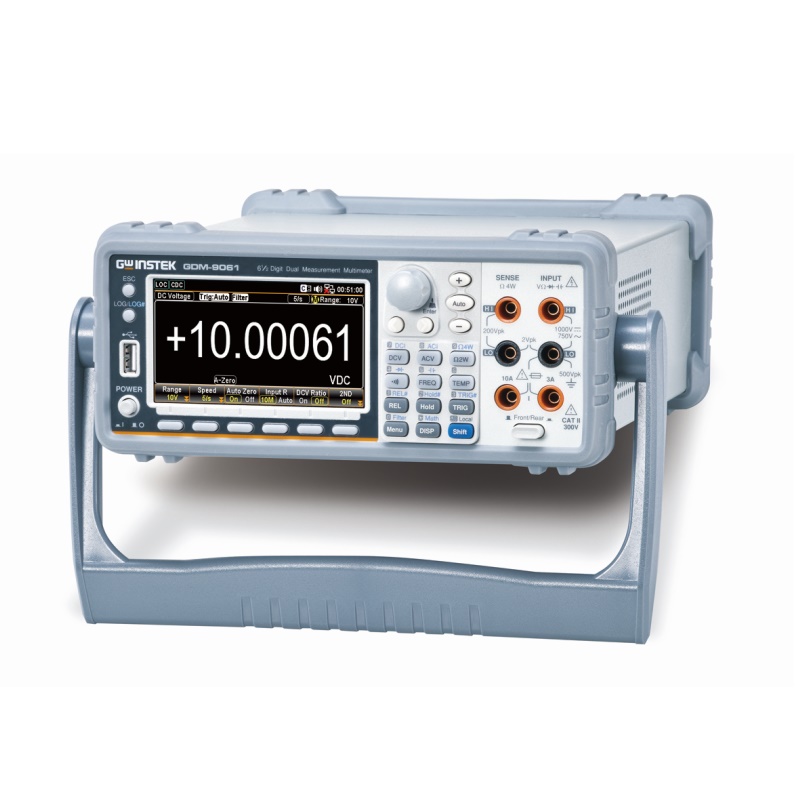

The GW-Instek GDM-9061 Dual Measurement System Multimeter is a 6 ½ digit dual measurement multimeter. It features high precision DC voltage accuracy, fast sampling rate, 12 measurement functions (DC voltage/current, AC voltage/current, 2-wire/4-wire resistance, frequency, period, diode, continuity beeper, temperature, capacitance), 6 mathematical functions (dB/dBm/Compare/ MX+B/Percent and 1/X).

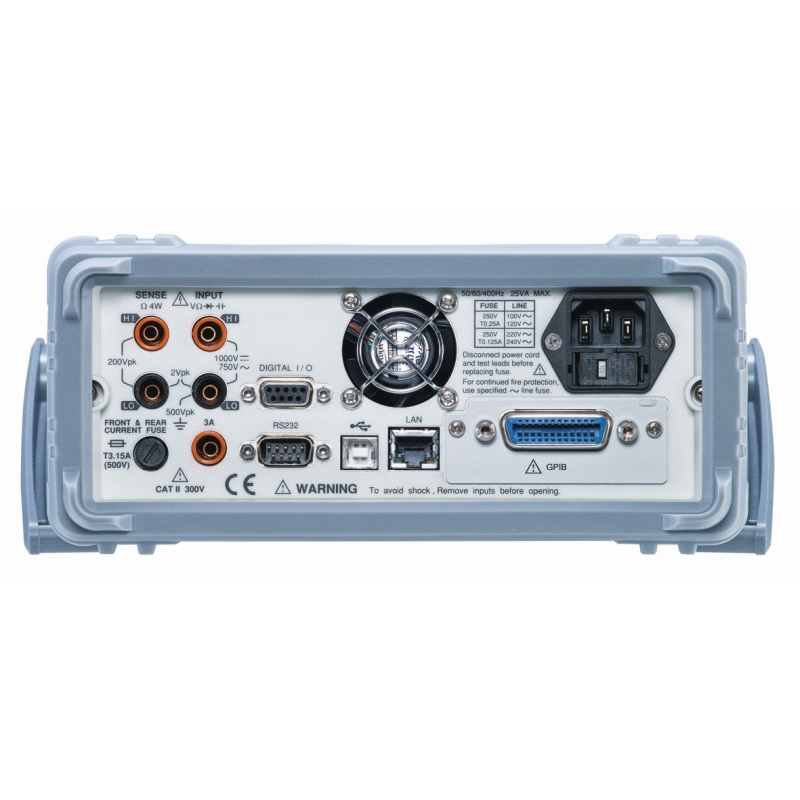

It also has a variety of communications interfaces (USB device/host, RS-232C, LAN, digital I/O and optional GPIB) to provide comprehensive measurement capabilities, higher speed and accuracy.
GW-Instek GDM-9061 Features
- 6 1/2 Digit Display:1,200,000 Counts
- 4.3 TFT Graphic LCD
- DCV Basic Accuracy:0.0035%
- 12 Measurement Functions: DCV, ACV, DCI, ACI, 2-wire and 4-wire Resistance, Frequency, Period, Diode, Continuity, Temperature & Capacitance
- Sampling Rate up to 10k SPS
- Dual Measurement Function to Providing Two Selected Measurement Simultaneously
- Offer Graphical Capabilities including Histogram, Bar Meter and Trend
- Temperature Measurement Support RTD, Thermistor & Thermocouple
- Standard Interfaces: USB Host/Device, RS-232C, LAN, Digital I/O
- Standard SCPI command set in emulation compatible with Agilent 34401A
- Optional Interface: GPIB
Included Accessories
Safety Instructions x1, Power cord x1,
USB cable GTL-246 x1, Test lead GTL-217 x1,
CD x1(including the complete user manual, upgrade program and PC software, DMM-Viewer2)
Options
Opt.1 GPI
B card
(*) GPIB can be installed at customer site
Optional Accessories
GTL-205A Temperature Probe Adapter with Thermocouple (K-type), approx. 1000mm
GTL-234 RS-232C Cable, 9-pin female-female cable, null modem for computer, approx. 2000mm
GTL-248 GPIB Cable, approx. 2000mm
GTL-308 4Wire Type (+shield) Test Lead, approx. 1500mm
RA-422 Rack Mount Kit (19″,2U)
GDM-TL1 Test Lead Set for All DMM
GSC-014 Soft Carrying case for DMM Accessory
| Weight | 3 kg |
|---|
