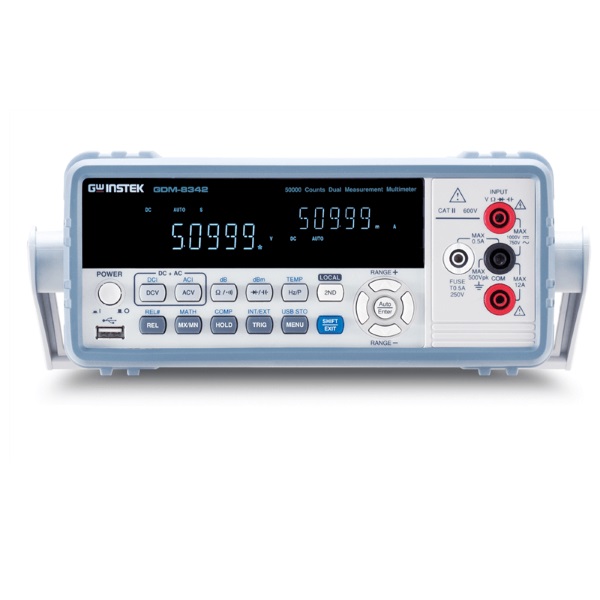

GW Instek GDM-8342 Dual Measurement System Multimeter, 50,000 Count

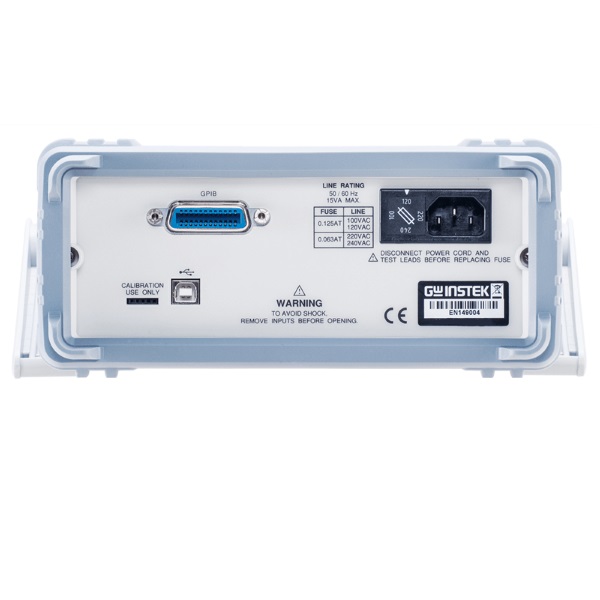

GW Instek GDM-8342 Dual Measurement System Multimeter, 50,000 Count - Image 2

GW Instek GDM-8342 Dual Measurement System Multimeter, 50,000 Count - Image 3

GW Instek GDM-8342 Dual Measurement System Multimeter, 50,000 Count

$1,050.00 .( $1,155.00 inc. GST )

🎉 Save more when you spend more
5% off over $2000 + GST
10% off over $5000 + GST
*until 31st Dec 2025!

For all your equipment calibration needs, visit our MyCalibration website.

Free Delivery on orders over $1000
Shipping time may vary for certain products*

Product Enquiry

If you would like more information regarding this product, simply email us here.

GW INSTEK GDM-8342 new generation Dual Measurement Multimeter features include 50,000 counts, VFD dual-display, 0.02% basic DC voltage accuracy and a USB protocol connector to provide users with measurement precision, easy measurement collection & observation, and the convenience to connect with your personal computer.

The GDM-8342 not only supports the normal measurement functions provided by general multimeters, but also comes with capacitance and temperature measurement functions.

Authorised Australian Distributor

GDM 8300 Series Datasheet

GDM-8342 User Manual

Categories: Bench Multimeters, GW INSTEK, Multimeter, Multimeters Tags: Bench Multimeter, Digital multimeter, GW Instek, Multimeter Brand: GW Instek

GW Instek GDM-8342 Dual Measurement System Multimeter Features:

50,000 counts, VFD display
Dual measurement/Dual display
Selectable measurement speeds, the maximum: 40 Readings/s for DCV
The basic DC voltage accuracy of 0.02%
Auto/manual Ranging
True RMS (AC,AC+DC) measurements
11 different measurement functions
Max./Min., REL, MX+B, 1/X, Ref%, Compare, Hold, dB, dB
Standard USB device interface to connect with a computer
Temperature measurement function
USB storage for Data collection
Optional GPIB (factory install for GDM-8342)

Convenient USB flash drive storage function:

The GW Instek GDM-8342 provides a USB flash drive storage function, which allows users to conveniently save data into a USB flash drive through a simple and proper setting.

This unique function, different from other digital multimeters which must first save data into its own internal memory then transfer out the file, or connect multimeters with a computer to retrieve data, not only saves operational time but also cuts down the cost and time of developing programs.

The USB storage function allows each flash drive to establish 100 folders (GW000 ~ GW099). Each folder has a capacity of saving 5,000,000 data files (which are divided into 100 sub-file names, therefore, each sub-file name can save 50,000 data files.

Selectable measurement speeds:

The GW Instek GDM-8342 has three selectable measurement speeds- fast/medium/slow. For instance, the DC voltage measurement can reach 40 readings per second on the fast mode, which can maximize the effectiveness of each measurement.

Varied measurement functions:

The GW Instek GDM-8342 provides various measurement items and functionalities compared with that of the products of same category. There are twelve major measurement items of this series including AC voltage/current, DC voltage/current, AC+DC voltage/current, two-wired resistance, capacitance, Frequency/ period, diode and continuity beeper test. Temperature measurement is an optional function for GDM-8342.

Many auxiliary functions, such as maximum/minimum values, reading hold, relative values, dB, dBm, algorithms (MX+B, 1/X, Ref%) and comparison, are designed to reinforce the major measurement items to satisfy users’ daily working requirements.

Dual Measurement / Dual Display

The GW Instek GDM-8342 is similar to GW INSTEK’s 6 1/2 and 5 1/2 digits multimeters in that it is equipped with dual display to support possible combinations of measurement items.

For example, the DC voltage and current or DC voltage with AC element will appear when monitoring components of test wiring.

The results of each measurement will simultaneously appear on different displays that not only save users’ precious time but also exempt users from the trouble of selecting displays while reading measurement results.

Command compatibility & Free software for remote control and data retrieving:

The GW Instek GDM-8342 provides free USB protocol connection software- Excel ADDins for users’ easy access. After installing the software, Microsoft Excel will establish Marco for users to directly control the setting of the GDM-8342 to record the results of the measurements.

The recorded data will be synchronously transformed into graphic displays via Excel drawing function that not only eliminates the cost and time of developing programs but also overcomes the compatibility issue of different programming languages.

Weight	2 kg

Specifications

GW Instek GDM-8342Specifications:

Note: The specifications apply when the DMM is warmed up for at least 30 minutes and operates only under main display in slow mode.

Function	Range (*2)	Resolution	Input Resistance etc.	Accuracy(*1) 1 Year 23°C±5°C
DC Voltage	500.00 mV	10μV	10MΩ or >10GΩ	0.02 + 4
	5.0000 V	100μV	10MΩ or >10GΩ	0.02 + 4
	50.000 V	1mV	11.11MΩ	0.02 + 4
	500.00 V	10mV	10.1MΩ	0.02 + 4
	1000.0 V	100mV	10MΩ	0.02 + 4
Resistance	500.00 Ω	10mΩ	0.83mA	0.10 + 5 (*3)
	5.0000 kΩ	100mΩ	0.83mA	0.10 + 3 (*3)
	50.000 kΩ	1Ω	83μA	0.10 + 3
	500.00 kΩ	10Ω	8.3μA	0.10 + 3
	5.0000 MΩ	100Ω	830nA	0.10 + 3
	50.000 MΩ	1kΩ	560nA//10 MΩ	0.30 + 3
DC Current	500.00 μA	10nA	0.06V max.	0.05 + 5
	5.0000 mA	100nA	0.6V max.	0.05 + 4
	50.000 mA	1μA	0.14V max.	0.05 + 4
	500.00 m A	10μA	1.4V max.	0.10 + 4
	5.0000 A	100μA	0.5V max.	0.25 + 5
	10.000 A	1mA	0.8V max.	0.25 + 5
Continuity	5000.0 Ω	100mΩ	0.83mA	0.10 + 5
Diode Test	5.0000 V	100μV	0.83mA	0.05 + 5
Capacitance	5.000 nF: 0.5~1nF	0.001nF	8.3μA	2.00 + 20
	5.000 nF: 1~5nF	0.001nF	8.3μA	2.00 + 10
	50.00 nF: 5~10nF	0.01nF	8.3μA	2.00 + 30
	50.00 nF: 10~50nF	0.01nF	8.3μA	2.00 + 10
	500.0 nF	0.1nF	83μA	2.00 + 4
	5.000 μF	1nF	0.56mA	2.00 + 4
	50.00 μF	10nF	0.83mA	2.00 + 4
True RMS Volatge AC (or AC+DC) (4/5/*6)	500.00 mV	10μV	30Hz – 50Hz	1.00 + 40
			50Hz – 10kHz	0.50 + 40
			10kHz – 30kHz	2.00 + 60
			30kHz – 100kHz	3.00 + 120
	5.0000 V	100μV	30Hz – 50Hz	1.00 + 20
			50Hz – 10kHz	0.35 + 15
			10kHz – 30kHz	1.00 + 20
			30kHz – 100kHz	3.00 + 50
	50.000 V	1mV	30Hz – 50Hz	1.00 + 20
			50Hz – 10kHz	0.35 + 15
			10kHz – 30kHz	1.00 + 20
			30kHz – 100kHz	3.00 + 50
	500.00 V	10mV	30Hz – 50Hz	——
			50Hz – 10kHz	0.50 + 15
			10kHz – 30kHz	1.00 + 20
			30kHz – 100kHz	3.00 + 50
	750.0 V	100mV	30Hz – 50Hz	——
			50Hz – 10kHz	0.50 + 15
			10kHz – 30kHz	——
			30kHz – 100kHz	——
True RMS Current AC (or AC+DC)(4/5/*6)	500.00 μA	10nA	30Hz – 50Hz	1.50 + 50
			50Hz – 2kHz	0.50 + 40
			2kHz – 5kHz	1.50 + 50
			5kHz – 20kHz	3.00 + 75
	5.0000 mA	100nA	30Hz – 50Hz	1.50 + 40
			50Hz – 2kHz	0.50 + 20
			2kHz – 5kHz	1.50 + 40
			5kHz – 20kHz	3.00 + 60
	50.000 mA	1μA	30Hz – 50Hz	1.50 + 40
			50Hz – 2kHz	0.50 + 20
			2kHz – 5kHz	1.50 + 40
			5kHz – 20kHz	3.00 + 60
	500.00 mA	10μA	30Hz – 50Hz	1.50 + 40
			50Hz – 2kHz	0.50 + 20
			2kHz – 5kHz	1.50 + 40
			5kHz – 20kHz	3.00 + 60
	5.0000 A	100μA	30Hz – 50Hz	2.00 + 40
	5.0000 A	100μA	50Hz – 2kHz	0.50 + 30
	10.000 A	1mA	30Hz – 50Hz	2.00 + 40
	10.000 A	1mA	50Hz – 2kHz	0.50 + 30
Frequency	10Hz – 500Hz	——	——	0.01 + 5
	500Hz – 500kHz			0.01 + 3
	500kHz – 1MHz			0.01 + 5
Temperature (*7) (Thermocouple)	-200 °C ~ +300 °C	0.1 °C	J / T / K	2 °C (typical)
Display	VFD, Tow Colors Display
Interface	USB Device, USB Host (for GDM-8342 only), GPIB (optional for GDM-8342 only)
Power Source	AC 100 V / 120 V / 220 V / 240 V ±10%, 50-60Hz
Power Consumption	Max. 15VA
Dimensions	265(W) x 107(H) x 302(D) mm
Weight	Approx. 2.9kg without option

1. Accuracy = +/- (% of reading + digits)

2. 2% overrange on all ranges, except 10A is 20% overrange

3. REL function is on

4. The AC+DC is in AC coupled

5. The accuracy of AC+DC is equal to AC with 10 more digits added

6. AC characteristics are for sinewave input > 5% of range

7. Specifications do not include probe accuracy
