Fluke PRV240FS Proving Unit – Test Voltage Indicators

AUD $290.00 • ( AUD $319.00 inc. GST )

Free Delivery on orders over $500
Shipping time may vary for certain products*

  • Fast Delivery*
  • Technical Support
  • Product Training
  • Calibration Services*
  • Lowest Price Guaranteed
Click here to Make an Enquiry

Product Enquiry

If you would like more information regarding this product, simply email us here.
  • Drop files here or
    Accepted file types: jpg, gif, png, pdf, Max. file size: 1 MB, Max. files: 4.
    • This field is for validation purposes and should be left unchanged.

    fluke logo

    The Fluke PRV240FS Proving Unit is a portable, pocket-sized, battery-powered voltage source.

    It is specifically built to prove the functionality of the FieldSense measurement on the T6 electrical testers.

    It also provides AC and DC voltages for other HiZ instruments in your tool box.

    Features:

    • Prove operation of FieldSense function on T6 electrical testers
    • Reduce risk of shock and arc flash by validating tool operation
    • Source both AC and DC steady-state voltage (240 V AC/DC)

    PDF download  Fluke PRV240FS Datasheet

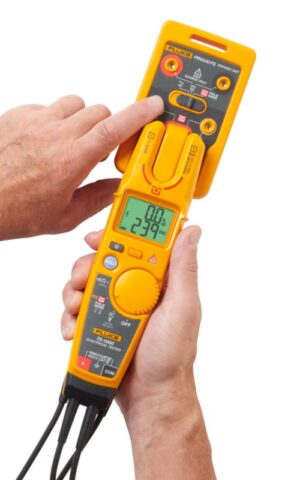

    Fluke-PRV240FS-in-useDesigned for safety and compliance

    Verify your test tool works without unnecessary exposure to shock and arc flash.

    Make the process easy by using the PRV240FS Proving unit. Verifying that your T6 electrical tester is working properly reduces the need for personal protective equipment (PPE) when a known voltage source is not available for verification before tests are performed. (PPE is still needed for absence of voltage testing when appropriate).

    On the PRV240FS, a single switch and a set of LEDs indicate functionality of both standard AC and DC measurements with test leads, and FieldSense, “no-test-lead” voltage measurement capability. This unit is a simple-to-use solution for complying with verification procedures of your test tools.

    The PRV240FS also provides AC and DC voltages for all high impedance instruments in your toolbox. When paired with the included TPAK magnetic hanging strip and the long battery life, including this proving unit in your toolbox is an easy decision.

    The PRV240FS will last for 2000 tests per set of four AA batteries, with a 10-second test average.

    “Test Before Touch”

    Fluke’s PRV240FS allows you to “Test Before Touch” (TBT), which involves testing your T6 against a known live source before, and after, the actual measurement. This sequence verifies that your test tool is operating properly during the actual measurement.

    Voltage is sourced through a central hub designed to test the T6 FieldSense open fork, as well as through recessed contacts that are activated when test probes are inserted to avoid accidental contact.

    Key benefits

    • Using the PRV240FS reduces the risk of shock and arc flash by validating the functionality of test tools without placing yourself in a potentially hazardous electrical environment.
    • Can prove functionality of the FieldSense measurement on the T6 electrical testers
    • Sources both ac and dc steady-state voltage—supplies 240 V dc/ac.
    • A single switch and a set of LEDs indicate functionality of both the FieldSense “no-test-lead” voltage measurement capability, plus standard ac and dc measurements with test leads. This unit is a simple-to-use solution for complying with TBT verification of your test tools.
    • Compatible with high impedance multimeters or clamp meters.
    • Voltage is sourced through a central hub designed to test the T6 FieldSense open fork, as well as through recessed contacts that are activated when test probes are inserted to avoid accidental contact
    • Includes TPAK magnetic hanging strap
    • Long battery life—2000 tests per set of four AA batteries (10 second test average)

    The PRV240FS has been tested and includes a IEC61010-1, IEC61010-2-030 safety rating.

    Weight 0.4 kg

    Specifications

    Fluke PRV240FS Proving Unit

    Specifications
    Output voltage 240 V ac rms or dc ± 10 % ≥ 1 MΩ
    LED power indicator Turns on when output voltage is present
    Battery 4 x AA Alkaline batteries NEDA 15 A IEC LR6
    Battery life 1100 (10-second duration) test cycles with >1 MΩ load
    Operating temperature -10 °C to +50 °C
    Operating humidity 0 % to 90 % (0 °C to 35 °C) 0 % to 70 % (35 °C to 55 °C)
    Operating altitude 2000 m
    Dimensions 11.7 cm x 7.4 cm x 4.5 cm (4.6 in x 2.9 in x 1.75 in)
    Weight 0.32 kg (12 oz) includes batteries
    Safety IEC61010-1, IEC61010-2-030
    Warranty One-year
    Electromagnetic Compatibility (EMC) IEC 61326-1: Controlled Electromagnetic Environment
    CISPR 11: Group 1, Class A
    Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself.
    Class A: Equipment is suitable for use in all establishments other than domestic and those directly connected to a low voltage power supply network that supplies buildings used for domestic purposes. There may be potential difficulties in ensuring electromagnetic compatibility in other environments due to conducted and radiated disturbances.
    Caution: This equipment is not intended for use in residential environments and may not provide adequate protection to radio reception in such environments.
    Emissions that exceed the levels required by CISPR 11 can occur when the equipment is connected to a test object.
    US (FCC) 47 CFR 15 subpart B, this product is considered an exempt device per clause 15.103
    Korea (KCC) Class A Equipment (Industrial Broadcasting & Communication Equipment)
    Class A: Equipment meets requirements for industrial electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and not to be used in homes.
    This product meets requirements for industrial (Class A) electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and not to be used in homes.
