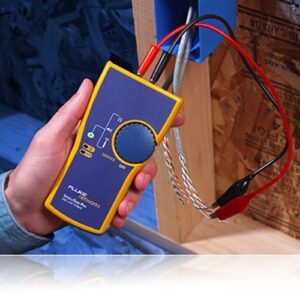

The FLUKE Networks MT-8200-60-KIT IntelliTone Pro 200 network cable toner and probe traces and locates cables on active network.

Key features

  • Locates cables safely and effectively on active networks
  • Kit includes IntelliTone™ toner, probe, adapters, patch cables, and test leads
  • Verifies twisted pair installation with end to end continuity test
  • IntelliTone™ digital toning eliminates noise and false signals
  • SmartTone analogue toning isolates individual wire pairs

    Intellitone Pro 200 Toner & Probe User Manual



Categories: , Tag:

FLUKE Networks IntelliTone Pro 200 LAN Tester, Toner, Tracer & Probe

The first network cable toner and probe to offer digital and analogue signaling all in one network toner and probe. Use digital mode to trace and locate data cabling safely and effectively on active networks. Use analogue mode to isolate individual wire pairs and trace voice, audio and video cabling.

IntelliTone digital toning technology:

  • Ends network cable location confusion, decisively rejects noise and false signals
  • Network cable tracer locates cables on active networks, even when terminated at a switch
  • Isolates cable and wiring within a bundle, despite cable bleed
  • Confirms cable location, verifies cable continuity, and detects cable faults (opens, shorts, and reversed pairs) in one step
  • Signal strength indicator LEDs so you can help identify one cable that is bundled with other cables
  • Probe has built-in pair tester to identify open, shorted and crossed pairs

SmartTone analogue toning technology:

  • Isolates individual wire pairs precisely by changing tone when shorted
  • Effectively traces and locates voice, audio, and video cabling

General specifications

Operating temperature 0 °C to 40 °C
Storage temperature -20 °C to °C
Operating relative humidity (% RH without condensation) 95 % (10 °C to 35 °C)
75 % (35 °C to 40 °C) Uncontrolled < 10 °C
Vibration Random, 2 g, 5 Hz-500 Hz
Shock 1 m drop test
Safety EN 61010-1, Category: None
Altitude 3000 m
EMC EN 61326-1, FCC Part 15 B
Battery type and life 9 V alkaline (NEDA 1604A or IEC 6LR61); 20 hours typical
Applications Copper cabling media including; 75 or 50 Ohm Coaxial cable; Two Conductor control, security, generic cabling. 10 Base-T or 10/100 Base-T datacom networks. UTP cable. Shielded Twisted Pair supported in Cable Map function of the IntelliTone 200.

Toner specifications

Dimensions 14.1 cm x 7.5 cm x 3.2 cm
Display LED
Control Thumbwheel switch
Toner interface Main Mod8 port for tone generation on all 4 pairs of UTP / STP cabling. F Connector for coaxial cabling Banana Jack Plugs (2) – two conductor wiring
Toner frequency IntelliTone™ signal: encoded digital signal
Analogue SmartTone signal: 500 – 1200Hz, 4 songs
Ouptut power 5 V p-p
Auto power down Turns off automatically after 2 1/2 hours of inactivity

Probe specifications

Dimensions 22.2 cm x 4.8 cm x 3.2 cm
Display (8) LED indicators, Sync LED indicator
Audio IntelliTone: Microprocessor controlled audio files
Analogue: Detected toner signal
Control Thumbwheel switch, volume control wheel
Tone detection Detects IntelliTone™ digital signal for Locate, Isolate, and Cable Map
Detects analogue SmartTone signal (500-1200Hz) and other analogue toners.
Toner interface Main Mod8 port for Cable Map on all 4 pairs of UTP / STP cabling.
Auto power down Turns off automatically after 1 hour of inactivity
Weight 1 kg
