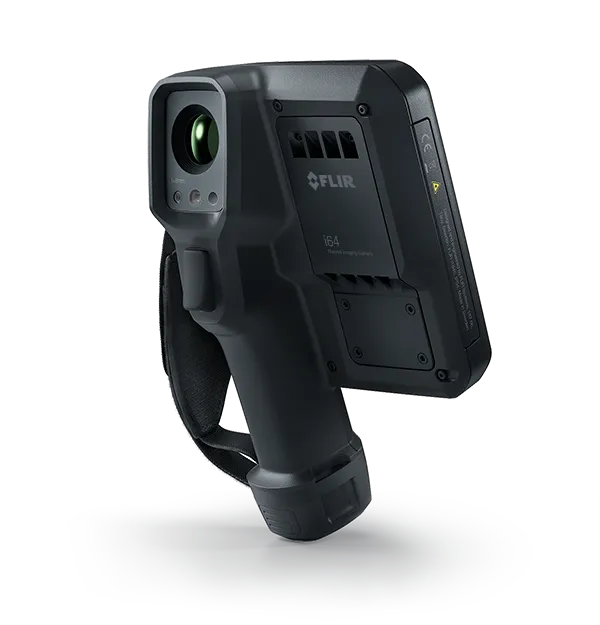

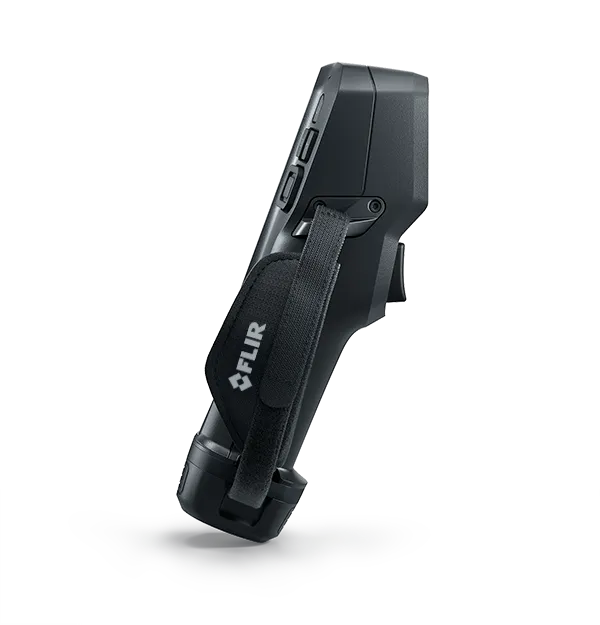

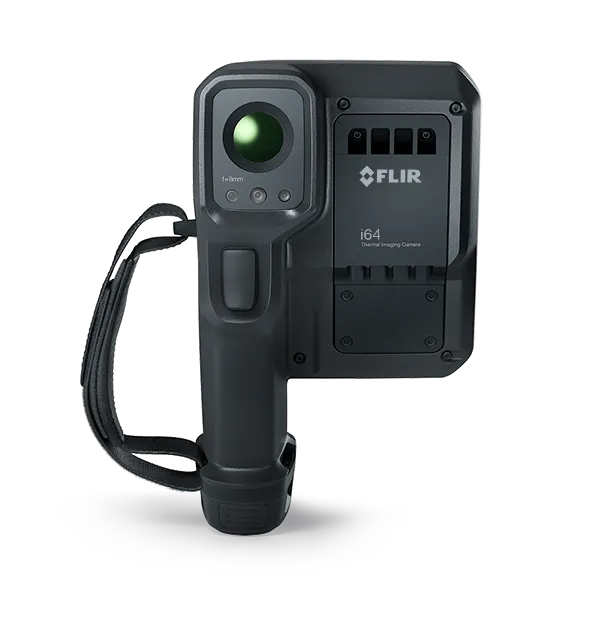

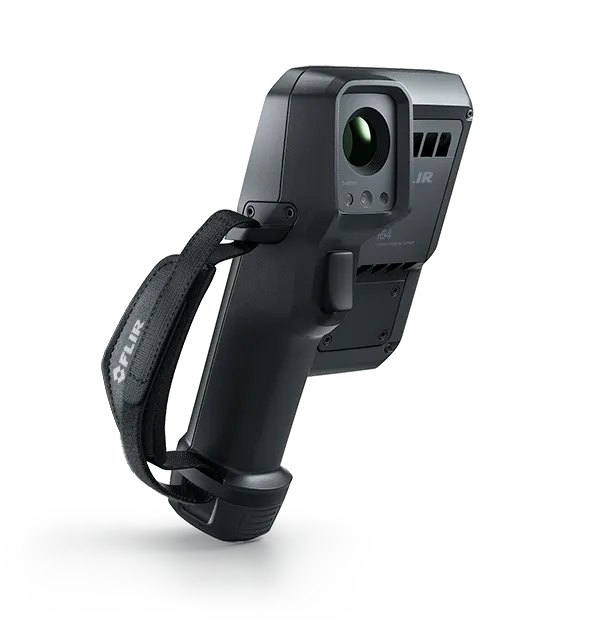

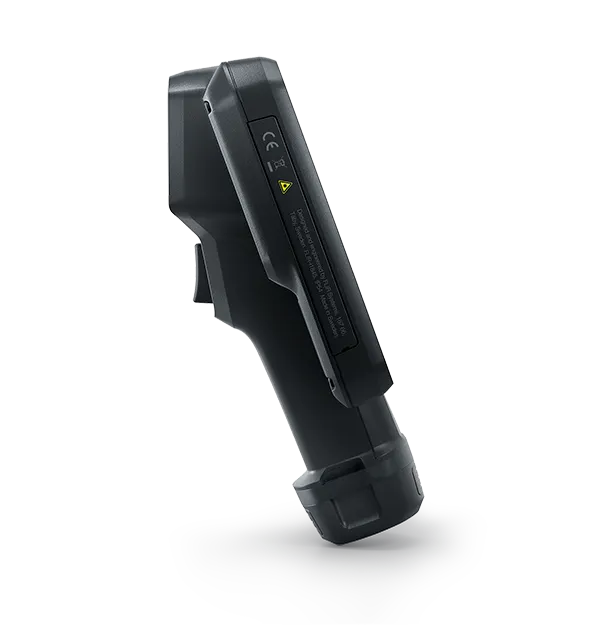

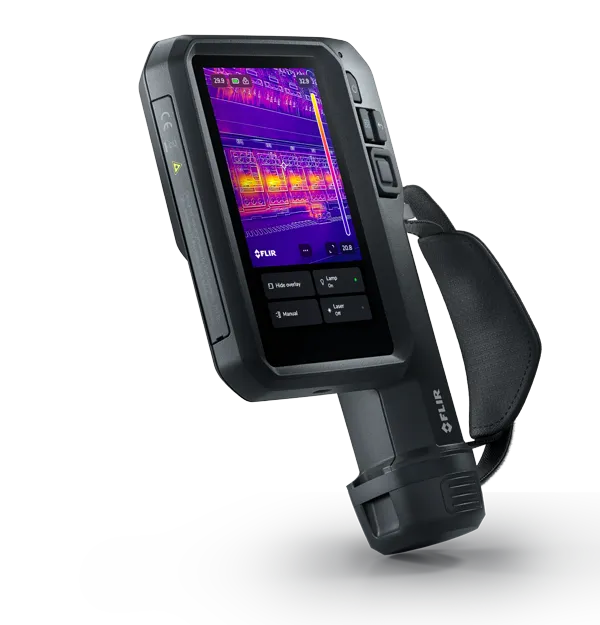

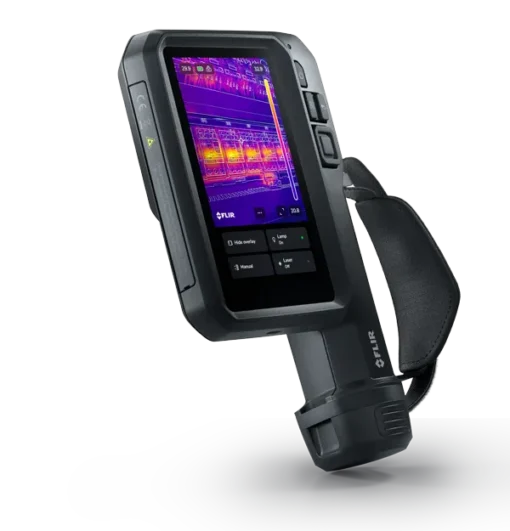

FLIR i64 Thermal Camera: Pro-Grade Imaging

Name: FLIR i64 Thermal Camera: Pro-Grade Imaging
Brand: FLIR
SKU: 18455-1201
Availability: InStock

$12,495.00 .( $13,744.50 inc. GST )

For all your equipment calibration needs, visit our MyCalibration website.

Free Delivery on orders over $1000
Shipping time may vary for certain products*

Click here to Make an Enquiry

Product Enquiry

If you would like more information regarding this product, simply email us here.

Discover the FLIR i64 Thermal Camera. Get high-resolution imaging, app control, and cloud integration for precise diagnostics and seamless data sharing.

Main Applications

Electrical and mechanical inspections across industrial and utility environments, enabling early fault detection and reduced downtime.
Enterprise-level condition monitoring programs with asset hierarchy, cloud-based data management, and team-wide collaboration.
Building diagnostics and facility maintenance, including moisture detection, HVAC performance checks, and energy loss assessments.

FLIR i34 Datasheet

SKU: 18455-1201 Categories: All Thermal Imagers / Infrared Cameras, App-Enabled Thermal Cameras, FLIR Tags: App-Enabled Thermal Camera, Flir, Infrared Camera, Infrared imager, Thermal Camera, Thermal imager, Thermal Imaging Infrared Camera Brand: FLIR

The FLIR i64 App-Enabled Thermal Camera delivers professional-grade thermal imaging capabilities directly to your smartphone or tablet. This provides an efficient and powerful solution for industrial inspections, electrical diagnostics, and building maintenance. This advanced tool is engineered for engineers, technicians, and maintenance professionals who require reliable, high-resolution data to make critical decisions with confidence.

With its impressive 640 x 480 IR resolution, the FLIR i64 produces clear, detailed thermal images that make it easy to identify potential issues like overheating components, energy loss, or moisture intrusion. The high thermal sensitivity allows for the detection of subtle temperature differences, ensuring no fault goes unnoticed. This level of precision is essential for preventative maintenance, helping you locate problems before they lead to costly downtime or equipment failure.

A key advantage of the FLIR i64 is its seamless integration with the FLIR mobile app. This functionality transforms your device into a powerful thermal imaging system, allowing you to view, analyse, and share images and videos in real-time. The app-based interface is intuitive, enabling quick adjustments to settings and measurement tools. Furthermore, with cloud integration, you can instantly upload your findings, generate professional reports, and collaborate with your team from any location. This streamlines the entire inspection workflow, from initial scan to final report, boosting efficiency and productivity.

Built to withstand demanding field conditions, the FLIR i64 features a rugged, drop-tested design. Its ergonomic construction ensures comfortable handling during extended use. Whether you are inspecting complex electrical panels, surveying HVAC systems, or assessing building envelopes, the FLIR i64 thermal camera provides the accuracy, flexibility, and reliability needed to perform your job effectively. It’s more than just a camera; it’s a complete diagnostic solution that enhances your operational efficiency.

Key Features

High-Resolution Thermal Imaging: Features a 640 x 480 IR resolution for crisp, detailed thermal images that simplify fault identification.
App-Enabled Functionality: Connects to your smartphone or tablet for real-time viewing, analysis, and data sharing via the FLIR mobile app.
Cloud Integration: Instantly upload images and data to the cloud for secure storage, team collaboration, and rapid report generation.
High Thermal Sensitivity: Detects minute temperature differences, enabling precise diagnostics for preventative maintenance and troubleshooting.
Rugged and Ergonomic Design: Built to endure tough industrial environments with a drop-tested and durable construction.
Wide Temperature Range: Accurately measures temperatures from -20°C to 550°C, making it suitable for a broad range of industrial applications.
Versatile Measurement Tools: Includes multiple spot meters, area boxes, and isotherms for in-depth image analysis directly on your mobile device.

Weight	.5 kg

Technical Specifications

Model	Flir i64
Imaging and optical data
IR resolution	480 × 640 pixels
Thermal sensitivity/ NETD	<40 mK at 30°C (86°F)
Field of view (FOV)	38° × 49°
Minimum focus distance	0.5 m
Spatial resolution (IFOV)	1.5 mrad
F-number	1.4
Image frequency	30 Hz
Focus	Fixed focus
Spectral range	7.5–13 µm
Color palettes	Iron, White hot, Black hot, Rainbow, Arctic, Lava, Rainbow HC
User interface
Display	5 in. 720 × 1280 color LCD
Touch screen	Capacitive touch
Text	Text annotation on image using onscreen keyboard
Flashlight	Manually activated bright LED
Image adjustment	Automatic/Manual


Laser pointer
Laser	Class 2
Laser alignment	Position of laser pointer automatically displayed on the infrared image
Image presentation modes
Image modes	MSX, Thermal, Picture-in-Picture, Digital camera
Measurement
Camera temperature range	−20°C to 200°C (−4°F to 392°F) 10°C to 550°C (50°F to 1022°F)
Accuracy	±2°C (±3.6°F) or ±2%
Measurement analysis
Spotmeter	Center spot, box with min./max.
Isotherm	Above, Below
Delta T	Yes, NFPA 70B compliant
Emissivity correction	Variable from 0.1 to 1.0
Emissivity table	Emissivity table of predefined materials
Measurements correction	Emissivity, matt/semi-matt/semi-gloss + custom value, reflected apparent temperature, atmospheric compensation
1-touch level/span	Yes; automatic contrast


Storage of images
File formats	Standard JPEG, 14-bit measurement data included
Storage media	Internal memory, onboard Flir Ignite cloud and Assetlink connectivity
Digital camera
Digital camera, resolution	8 MP, Autofocus
Digital camera, FOV	50.5° × 64.5°
Data communication interfaces
Interfaces	USB-C: Data transfer to and from PC and Mac device Display port over USB-C
Wi-Fi	IEEE 802.11 a/ac/b/g/n (2.4 and 5 GHz)
Cellular	No
Radio
Operating frequency	WLAN 2.4 GHz: 2412 to 2462 MHz WLAN 5 GHz: 5150 to 5250 MHz
Power system
Battery type	Rechargeable Lithium-ion battery
Battery operating time	4 hours at 25°C (77°F) ambient temperature and typical use
Charging system	Battery is charged inside the camera or in specific charger (included)
Charging time	2 hours in charger / 4 hours to 90% capacity in-camera
Power management	Automatic shut-down
AC operation	Optional accessory: 45 W AC adapter, 100 V to 240 V AC input, 15 V DC, 3 A output to camera
Environmental and certifications
Drop test	2 m (6ft 7 in)
Encapsulation	IP54 IP54(IEC 60529)
Operating temperature range	–15°C to 50°C (5°F to 122°F)
Storage temperature range	–40°C to 70°C (–40°F to 158°F)
Humidity (operating and storage)	IEC 60068-2-30/24 h 95% relative humidity
EMC	EN 301 489-1, EN 301 489-17, EN 61000-6-3, EN 61000-6-2, FCC 47 CFR Part 15 Class B
Radio spectrum	ETSI EN 300 328 ETSI EN 301 893 FCC 47 CFR part 15 RSS-247
Shock	25 g (IEC 60068-2-27)
Vibration	2 g (IEC 60068-2-6)


Physical data
Camera weight, incl. battery	0.8 kg (1.76 lb)
Camera size (L × W × H)	225 × 136 × 73 mm (8.9 × 5.4 × 2.9 in)
Color	Black
Shipping information
Packaging type	Cardboard box
Package includes	Infrared camera with battery Extra battery Battery charger USB-C cable Printed documentation Hard transport case Wrist strap
Packaging, weight	3.1 kg (6.83 lbs)
Packaging, size	385 × 165 × 315 mm (15.2 × 6.5 × 12.4 in)
P/N	18455-1201

1. What devices are compatible with the FLIR i64 App-Enabled Thermal Camera?
The FLIR i64 is compatible with most modern iOS and Android smartphones and tablets. You can connect the camera via Wi-Fi and use the dedicated FLIR mobile app to control its functions and manage data.

2. How does the cloud integration feature work?
Once you capture thermal images or videos, you can instantly upload them to a secure cloud service directly from the FLIR app. This allows you to access your data from anywhere, share it with colleagues for analysis, and generate professional reports without being on-site.

3. Is the FLIR i64 suitable for outdoor use in harsh conditions?
Yes, the FLIR i64 is designed with a rugged exterior and is drop-tested to withstand a 2-metre fall. Its durable construction makes it a reliable tool for field inspections in various industrial and outdoor environments.

4. Can I create professional reports with the FLIR i64?
Absolutely. The accompanying FLIR app includes powerful reporting tools that allow you to create customised, professional-grade inspection reports. You can add thermal images, annotations, and measurement data to document your findings comprehensively.

5. What is MSX® technology and how does it benefit inspections?
MSX® (Multi-Spectral Dynamic Imaging) is a patented FLIR technology that embosses key details from the built-in visible light camera onto the full thermal image. This provides exceptional detail and context, making it much easier to identify the exact location of a thermal anomaly without compromising temperature data.
