FLIR CM94 2000A AC/DC Utility Clamp Meter

AUD $530.00 • ( AUD $583.00 inc. GST )

Free Delivery on orders over $500
Shipping time may vary for certain products*

  • Fast Delivery*
  • Technical Support
  • Product Training
  • Calibration Services*
  • Lowest Price Guaranteed
Click here to Make an Enquiry

Product Enquiry

If you would like more information regarding this product, simply email us here.
  • Drop files here or
    Accepted file types: jpg, gif, png, pdf, Max. file size: 1 MB, Max. files: 4.
    • This field is for validation purposes and should be left unchanged.



    The FLIR CM94 clamp meter is designed to tackle high-current measurements in demanding electrical utility and industrial job sites.

    Its oversized, 55 mm jaw can securely clamp around conductor wires and busbars for accurate readings up to 2000 A AC & DC making it the ideal choice for electrical power supply utilities and industrial electricians.

        FLIR-CM94-Datasheet

    FLIR CM94 2000A AC/DC Utility Clamp Meter

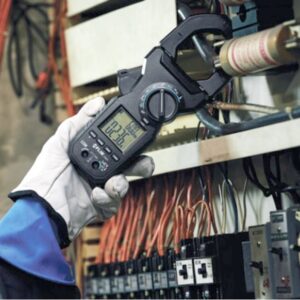

    Designed for Electrical Power Utilities with a CAT IV-1000 V safety rating, the FLIR CM94 2000A clamp Meter is ready to work on relays, distribution panels, and switchgear as well as service conductors, feeders, and production power lines. VFD mode allows you to tackle noisy signal environments to ensure correct measurements when working on large motors and motor controls. Utilities and industrial electrical technicians demand the best, and FLIR delivers with the rugged and dependable CM94 clamp meter

    The FLIR CM94 2000A clamp meter is designed to tackle high-current measurements in demanding utility and industrial job sites. The FLIR CM94 has an oversized, 55 mm jaw that can securely clamp around conductor wires and busbars for accurate readings up to 2000 A AC & DC.

    GREATER SAFETY SO YOU CAN FOCUS ON RESULTS
    Get the right tool for high current jobs with improved safety built in
    • CAT IV-1000 V rating protects from dangerous transient overvoltage near utility service equipment
    • Get accurate current readings on high current equipment up to 2000 A AC/DC
    • Eliminate errors from residual ghost voltage using LoZ (low impedance) mode
    PACKED WITH THE FUNCTIONS YOU NEED
    This full-featured clamp meter saves time and helps you troubleshoot effectivel
    • Trust accurate AC voltage and current measurements with True RMS, LoZ, and VFD mode to filter signal noise
    • Troubleshoot connections and components with a Continuity test mode
    • Measure resistance, frequency, and temperature
    • Work your way with both auto- and manual ranging settings
    THE RIGHT TOOL FOR INDUSTRIAL JOBS
    The FLIR CM94 features an oversized jaw to clamp around large conductors or multiple conductors
    • Generous jaw opening of 55 mm (2.2 in)
    • Perfect for industrial electricians, utility workers, and electrical contractors
    • Ergonomic design is easy to hold with thumb dial for one-hand operation
    • Bright, large backlit 6000 count display that’s easy to read in any condition



    FLIR CM94 Specifications:

    Safety category rating CAT IV-1000 V
    True RMS Yes

    Features

    Data hold Yes
    Relative DC zero Yes
    LoZ mode (auto range) Yes
    VFD Yes
    Jaw size 55 mm (2.2 in) max
    Non-contact voltage (NCV) Yes

    Measurement and analysis

    Range & resolution

    Basic accuracy

    AC current

    200.0, 2000 A ±2%
    DC current 200.0, 2000 A ±2%
    AC voltage 6.000, 60.00, 600.0, 1000 V ±1.2% / 5d
    AC voltage (digital low pass filter – VFD) 6.000, 60.00, 600.0, 1000 V ±2%
    LoZ mode AC voltage 6.000, 60.00, 600.0, 1000 V 1.5%
    DC voltage 6.000, 60.00, 600.0, 1000 V ±0.5%
    LoZ mode DC voltage 6.000, 60.00, 600.0, 1000 V 1.3%
    Frequency 40.00 Hz to 400.0 Hz (ACA)
    50.00 Hz to 400.0 Hz (ACV)
    ±1%
    ±1%
    Resistance 600.0, 6.000 k, 60.00 kΩ
    600.0 kΩ
    6.000 M
    40.00 MΩ
    ±0.5%
    ±0.8%
    ±1.2%
    ±2.3%
    Diode test 1.000 V ±1.0%
    Capacitance 60.00 nF, 600.0 nF, 6.000 µF,
    60.00 µF, 6000.0 µF, 2000 µF
    ±2.0%
    Temperature -50°C to 1000°C (-58°F to 1832°F) ±0.3%
    Continuity

    10 to 200 Ω, 2 kHz buzzer

    Display

    Screen 3-5/6 digits 6000 counts
    3-½ digits 1999 counts for Hz
    Backlight Yes
    Auto power off 34 minutes
    Overload indication “OL” or “-OL”
    Low battery indication Yes

    General

    Operating temperature -10°C to 50°C (14°F to 122°F)
    Operating relative humidity Maximum relative humidity 80% for temperature up to 31°C (88°F) decreasing linearly to 50% relative humidity at 50°C (122°F)
    Storage temperature -20°C to 60°C (-4°F to 140°F) <80% RH (with battery removed)
    Drop Test 2 m (6.5 ft)
    IP rating IP40
    Certifications UL, CE, CSA, RCM
    Battery type 2× AA
    Size (L × W × H) 269 × 106 × 51 mm (10.6 × 4.2 × 2.0 in)
    Weight 700 g (24.7 oz)
    Box contents Test lead set, quick start guide, manual, soft carrying pouch, banana plug Type-K thermocouple



    Weight 1 kg
