FLIR CM65 TRUE RMS 600A Solar Clamp Meter

AUD $670.00 .( AUD $737.00 inc. GST )


For all your equipment calibration needs, visit our MyCalibration website.


Free Delivery on orders over $1000
Shipping time may vary for certain products*

Product Enquiry

If you would like more information regarding this product, simply email us here.

  • Drop files here or
    Accepted file types: jpg, gif, png, pdf, Max. file size: 1 MB, Max. files: 4.
    • This field is for validation purposes and should be left unchanged.

    The FLIR CM65 is a rugged clamp meter designed to meet the challenges of solar installation, maintenance, and repair.

    The FLIR CM65 clamp meter comes with quick-connect MC4 test leads that improve the accuracy and safety of DC voltage measurements on solar panel strings and inverters.

    PDF download FLIR-CM65-Datasheet       PDF download FLIR CM65 User Manual

    Categories: , Tags: , ,

    FLIR CM65 TRUE RMS 600A Solar Clamp Meter

    With the FLIR CM65 TRUE RMS 600A Solar Clamp Meter, you can check AC output and inverter efficiency and then store readings to the internal memory. Share data wirelessly via METERLiNK® or monitor measurements live on a smartphone running the FLIR Tools® mobile app.

    Solar system installers can trust the Flir CM65 as their  go-to tool for accelerating and simplifying photovoltaic panel testing on new and existing solar panels.

    The Flir CM65 is a rugged clamp meter designed to meet the challenges of solar installation, maintenance, and repair. This clamp meter comes with quick-connect MC4 test leads that improve the accuracy and safety of DC voltage measurements on solar panel strings and inverters.

    ACCURACY FOR ELECTRICAL AND SOLAR APPLICATIONS

    The precision testing capabilities you need to get the job done right the first time.

    • Trust AC voltage and current measurements from inverters and mains are accurate with True RMS
    • Eliminate errors from residual ghost voltage using LoZ (low impedance) mode
    • Get sharp ±1.5% accuracy when taking AC and DC current readings
    • Capture the smallest voltage fluctuations when calibrating equipment using the CM65’s millivolt function

    TOOLS YOU NEED TO WORK FASTER & SMARTER

    This full-featured clamp meter with solar industry standard connectors helps you pinpoint trouble fast.

    • Reduce the time needed for live/dead testing with included MC4 test leads
    • Gain quick insights with Data Hold, Min/Max readings, and relative mode to zero the meter
    • Troubleshoot string connections and components with a Continuity test mode
    • Measure resistance, frequency and temperature
    • Easily clamp around wires with the generous jaw (30 mm) and ergonomic design

    THE FLIR CM65 WILL SIMPLIFY YOUR WORKFLOW

    The Flir CM65 is packed with tools to help you validate testing, document readings, and share results

    • Take measurements, document results, and then share them on the go
    • Identify trends and anomalies by data logging directly to the internal memory
    • View readings right on your mobile device using the CM65’s METERLiNK® and the FLIR Tools® Mobile app –on the roof, on the ground, or anywhere on a job site

    FLIR CM65 Features

    • 6000 count digital backlit display
    • 1000 V AC/DC test lead measurements
    • 600 A AC/DC clamp measurements
    • Frequency reading for AC Current/Voltage measurements
    • Resistance measurements to 60 k ohms
    • Continuity and Diode measurements
    • Type-K thermocouple temperature measurements
    • External clamp adaptor measurements
    • Display Hold
    • DC zero adjust
    • Minimum/Maximum/Average recording memory
    • Integrated VFD mode (low-pass filter) on AC V and Hz measurements
    • LoZ (low impedance) mode eliminates ‘ghost’ voltage problems
    • Bluetooth® connectivity for remote measurement monitoring and data log file transmit
    • USB port in battery compartment for field firmware updates and data log file transfer
    • Adjustable Auto power OFF (APO) timer
    • Safety Category Rating: CAT III 1000 V & CAT IV 600 V AC & DC

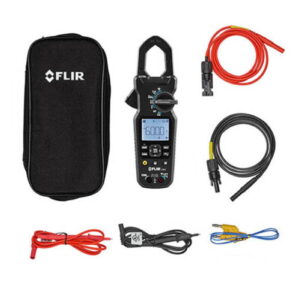

    Supplied Accessories with the FLIR CM65

    Test lead set (1 x red, 1 x black)
    MC4 test leads (1 x red, 1 x black)
    Type-K bead thermocouple
    Soft carrying case
    Quick start guide,
    User Manual

    Weight 2 kg

    Specifications

    Specification

    Basic measurement capabilities

    Safety category rating CAT IV-600 V, CAT III-1000 V
    True RMS Yes

    Features

    Data hold Yes
    Min/Max Yes
    Relative DC zero Yes
    Loz mode (auto range) Yes
    VFD Yes
    Jaw size 30 mm (1.1 in) max
    Measurement and analysis Range & resolution Basic accuracy
    AC current 60.00, 600.0 A ±1.5%
    DC current 60.00, 600.0 A ±1.5%
    AC voltage 60.00, 600.0, 1000 V ±0.7%
    AC voltage (digital low pass filter – VFD) 600.0, 1000 V ±1%
    LoZ mode AC voltage 600.0, 1000 V ±2.0%
    AC voltage (mV mode) 60.00, 600.0 mV ±1.0%
    DC voltage 60.00, 600.0, 1000 V ±1%
    LoZ mode DC voltage 60.00, 600.0, 1000 V ±2.0%
    DCV (mV mode) 60.00, 600.0 mV ±1%
    Frequency 50.00 Hz to 400.0 Hz (ACA)
    10.00 Hz to 400.0 Hz (ACV)
    10.00 Hz to 500.0 Hz (ACV mV)
    ±1%
    ±1%
    ±1%
    Resistance 600.0 k, 6.000 kΩ ±1.0%
    Diode test 3.000 V ±0.9%
    Temperature -40°C to 400°C (-40°F to 752°F) ±1%
    Continuity < 30 Ω, 2 kHz buzzer
