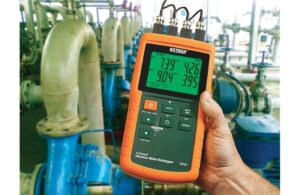

EXTECH VB500 4-Channel Vibration Meter/Datalogger

AUD $6,595.00 • ( AUD $7,254.50 inc. GST )

Available on back-order

Free Delivery on orders over $500
Shipping time may vary for certain products*

  • Fast Delivery*
  • Technical Support
  • Product Training
  • Calibration Services*
  • Lowest Price Guaranteed
Click here to Make an Enquiry

Product Enquiry

If you would like more information regarding this product, simply email us here.
  • Drop files here or
    Accepted file types: jpg, gif, png, pdf, Max. file size: 1 MB, Max. files: 4.
    • This field is for validation purposes and should be left unchanged.

    The Extech VB500 datalogs and stores readings on an SD card in Excel format. Large backlit LCD display simultaneously displays four channels.

    Selectable data sampling rates of 5, 10, 30, 60, 120, 300, 600 seconds. Remote vibration sensor with magnetic adapter on 39″ (1m) cable. Wide frequency range of 10Hz to 1kHz.

    Applications:

    • Motors, bearings
    • Fans
    • Pumps
    • Rotating machinery
    • Plant maintenance


    ce     warranty12

        Extech VB500 Datasheet

        Extech VB500 User Manual



    SKU: Extech VB500 Categories: , , , Tag:

    The Extech VB500 Vibration Datalogger can display four (4) channels of simultaneous vibration measurements taken from remote vibration sensors.

    The Extech VB500 displays and stores vibration readings of Acceleration, Velocity and Displacement. Supported measurement units are meters/s2 , ft/s2 , g, mm/s, cm/s, in/s, mm and inch.

    Logged data readings are stored on an SD card for transfer to a PC. This meter is shipped fully tested and calibrated and, with proper use, will provide years of reliable service.

    Extech VB500 Vibration Datalogger Features:

    • Large backlit LCD display simultaneously displays four channels
    • Selectable data sampling rate: 1, 2, 5, 10, 30, 60, 120, 300, 600, 1800, 3600 seconds
    • Remote vibration sensor with magnetic adapter on 39″ (1m) cable
    • Wide frequency range of 10Hz to 1kHz
    • Basic accuracy of ±(5% + 2 digits)
    • RMS or Peak Value measurement modes
    • Data Hold, Auto Power Off
    • Complete with 4 remote sensors, magnetic mounts, 8 × AA batteries, 100-240V Universal AC Adaptor, SD card, and durable hard carrying case

    Extech VB500 Front Panel:

    EXTECH VB500 4-Channel Vibration Meter/Datalogger Specifications

    Model Extech VB500
    Acceleration 656ft/s2, 200m/s2, 20.39g (peak)
    Velocity 7.87in/s, 200mm/s, 19.99cm/s (peak)
    Displacement 0.078in, 2mm (peak-to-peak)
    Resolution 1ft/s2, 0.1m/s2, 0.01g; 0.01in/s, 0.1mm/s, 0.01cm/s; 0.001in, 0.001mm
    Basic accuracy ±(5%+2 digits)
    Memory 20M data records using 2G SD card
    Display 82 x 61mm (”) Backlit LCD
    Display update rate 1 second (approx.)
    Number of channels Four (4) input channels (CH1, CH2, CH3, CH4)
    Measurement Types Velocity, Acceleration, and Displacement
    Acceleration/Velocity: RMS, Peak, and MAX HOLD
    Displacement: p-p (peak to peak), MAX HOLD
    Units of measure Acceleration: m/s2, g, ft/s2
    Velocity: mm/s, cm/s, inches/s
    Displacement: mm, inches
    Frequency range 10Hz to 1KHz (sensitivity in this range meets ISO2954)
    Peak Hold Acceleration, Velocity: Measures and updates peak value
    Displacement: Measures/updates the p-p (peak-to-peak) value
    Max. Hold Acceleration, Velocity: Measures and updates Max. peak value
    Displacement: Measures/updates Max. p-p (peak-to-peak) value
    Max. Hold Reset Push-button activation
    Zero function Push-button activation for Acceleration (RMS) measurements
    Datalogger sampling rate Automatic: 1 second to 3600 seconds
    Manual: Push-button stores reading
    Datalogger accuracy ≤ 0.1% error of total saved data (typical)
    Memory card SD memory card (1G to 16G sizes)
    Data Hold Freezes displayed reading
    Audio Output mini stereo phone jack, Max voltage; 2V, output impedance; 100ohms
    Operating Temperature 0 to 50°C (32 to 122°F)
    Operating Humidity 85% R.H. max.
    Power Supply Eight (8) 1.5V ‘AA’ batteries or 9V AC adaptor
    Power Consumption Normal operation (backlight and datalogger OFF): approx. 12mAdc
    With backlight OFF and datalogging ON: approx. 35mAdc
    Weight Meter: 515g (1.13 lbs.)
    Probe with cable and magnetic base: 99g (0.22lbs.)
    Dimensions Main instrument: 203 x 76 x 38mm (8 x 3 x 1.5””)
    Probe: 16 x 37mm (0.63 x 1.45”) diameter
    Cable length: 1.2m (3.94ft)
    Weight 2 kg
