EXTECH PRC20 Thermocouple Calibrator

Features:

• Source and measure 8 thermocouple type devices (J, K, T, E, C, R, S and N) with one meter that provides precision output displayed as °C/°F or mV.
• CJC – Cold Junction Compensation function
• Up to five user adjustable calibration presets
• Palm-sized double molded housing and large dot-matrix digital backlit LCD with thermocouple type indication
• High accuracy calibration function simulates precision thermocouple outputs for use in calibrating thermometers, transmitters, controllers or recorders
• Displays output in terms of millivolts or temperature based on thermocouple tables
• Mini thermocouple connector
• Large battery bank for extended work cycle
• External power adapter for continuous work cycle

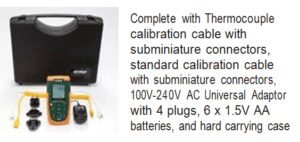

• Complete with calibration cables, 100V-240V AC universal adaptor with 4 plugs, 6 AA batteries, and hard carrying case

Applications include:

• Lab and Field Calibration and Verification Operations of Sensors, Thermocouple Probes, Controllers, Panel meters & Testing
• Engineering Research and Design
• Manufacturing and Test Engineering
• HVAC
• Temperature Control Process Troubleshooting
