EXTECH PRC15 Current and Voltage Calibrator / Meter

AUD $775.00 • ( AUD $852.50 inc. GST )

Free Delivery on orders over $500
Shipping time may vary for certain products*

  • Fast Delivery*
  • Technical Support
  • Product Training
  • Calibration Services*
  • Lowest Price Guaranteed
Click here to Make an Enquiry

Product Enquiry

If you would like more information regarding this product, simply email us here.
  • Drop files here or
    Accepted file types: jpg, gif, png, pdf, Max. file size: 1 MB, Max. files: 4.
    • This field is for validation purposes and should be left unchanged.

    extech-1

    Precision Current & Voltage Source/Measure Calibrator

    Features:

    • 0 to 24mA (-25 to 125%) readout
    • 0 to 20V DC calibration source
    • Up to five user adjustable calibration presets
    • Palm-sized double molded housing and large dot-matrix digital backlit LCD
    • Standard banana I/O ports
    • Large battery bank for extended work cycle
    • External power adapter for continuous work cycle

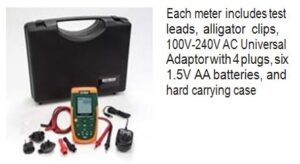

    • Includes test leads, alligator clips, 100V-240V AC universal adaptor with 4 plugs, six AA batteries, and hard carrying case

    ce     warranty12

    Authorised Australian Distributor.



    SKU: EXTECH PRC15 Categories: , Tag:

    EXTECH PRC15 Product Description

    Precision “source” for calibrating process devices.

    Applications include:

    • Process devices calibration and simulation

    – Transducers

    – Transmitters

    – Indicators

    – Controllers

    – Recorders

    • Field test and service

    • Bench research/development

    Tilt Stand / Hanger

    The rear stand is provides two methods for convenience in viewing. 1. Pull the bottom portion of the stand out to place the unit on a flat surface for viewing. 2. Pull the bottom and top portions of the stand out, and then rotate the stand to allow the unit to be hung.

    Battery Replacement

    When the battery icon appears on the display, the six AA batteries must be replaced. The battery compartment is located on the rear of the meter. 1. Open the tilt stand, loosen the captive Philips head screw and remove the battery cover. 2. Remove and replace the batteries, observing polarity. 3. Replace and secure the battery cover.

    Extech PRC15 Specifications

    General Specifications
    Source: Output 0 to 24mA current for loads up to 1000 ohms (-25% to 125%); Output 0 to 20V
    Measure: 0 to 50mA current signal (-25 to 230%); 0 to 19.99V
    Power/Measure: Provides power (24VDC) to loop & measures current
    Input/Output: Ranges and Displays Resolution
    0 to 19.99mA 0.01mA
    0 to 24.0mA 0.1mA
    0 to 1999mV 1mV
    0 to 20.00V 10mV
    Accuracy: 0.01% ±1 digit
    Meter Dims (LxWxH): 159 x 80 x 44mm
    Meter Weight: 232g – not including battery weight
    Weight 1 kg
