EXTECH MA3018 3000A True RMS CAT IV AC Flex Clamp Meter

AUD $413.00 .( AUD $454.30 inc. GST )

Available on back-order


For all your equipment calibration needs, visit our MyCalibration website.


Free Delivery on orders over $1000
Shipping time may vary for certain products*

Product Enquiry

If you would like more information regarding this product, simply email us here.

  • Drop files here or
    Accepted file types: jpg, gif, png, pdf, Max. file size: 1 MB, Max. files: 4.
    • This field is for validation purposes and should be left unchanged.

    extech-1

    18″ Flexible Clamp Meter with LCD

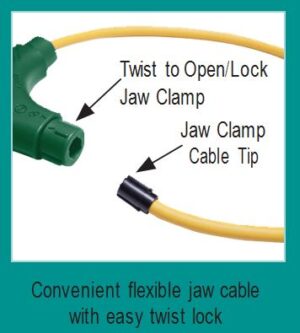

    Flexible clamp jaw easily wraps around bus bars and cable bundles that may be difficult to access with regular clamp meters. The thin 7.5mm cable diameter easily fits into tight spaces. Choose between a 10″ (25.4cm) or 18″  (45.7cm)

    Features:

    • Measure AC Current up to 3000A
    • True RMS for accurate readings of noisy, distorted or non-sinusoidal waveforms

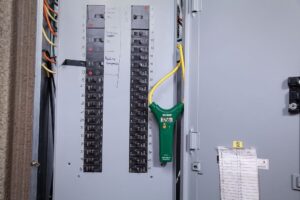

    • Flexible 18″ (45.7cm) clamp jaw easily wraps around bus bars and cable bundles
    • 7.5mm cable diameter fits into tight spaces and around large conductors
    • Measures AC Current in three ranges
    • 3000 count backlit LCD display
    • Over range and Low battery indicator
    • Auto Power Off with disable
    • Complete with two AAA batteries



    ce     ul     CATIII-600V     CATIV-600V     warranty12

    Authorised Australian Distributor



    SKU: MA3018 Categories: , , Tag:

    EXTECH MA3018 3000A True RMS CAT IV  AC Flex Clamp Meter
    25cm Flexible Clamp Meter with LCD

    Flexible clamp jaw easily wraps around bus bars and cable bundles that may be difficult to access with regular clamp meters. The thin 7.5mm cable diameter easily fits into tight spaces. Choose between a 10″ (25.4cm) or 18″ (45.7cm) cable clamp length to accommodate your application needs.

    Specifications
    Model MA3000 Series
    AC Current Ranges 0 to 30.00A, 30.00 to 300.0A, 300.0 to 3000A (autoranging)
    Max Resolution 0.01A
    Basic Accuracy ±(3%+5 digits)
    Flex Cable Diameter 0.3″ (7.5mm)
    Flex Cable Tip Diameter 0.51″ (13mm)
    Dimensions Model MA3010: 11 x 4.7 x 1″ (280 x 120 x 25mm);
    Model MA3018: 13.8 x 5.1 x 1″ (350 x 130 x 25mm)
    Weight Model MA3010: 6oz (170g);
    Model MA3018: 7.1oz (200g)
    Weight 0.1 kg
