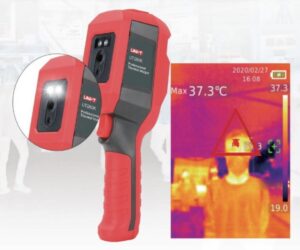

UNI-T UTi260K Thermal Imager for Body Temperature

Name: UNI-T UTi260K Thermal Imager for Body Temperature
Brand: UNI-T
Availability: InStock

$1,550.00 .( $1,705.00 inc. GST )

Product successfully added to the Quote List

For all your equipment calibration needs, visit our MyCalibration website.

Free Delivery on orders over $1000
Shipping time may vary for certain products*

Click here to Make an Enquiry

Product Enquiry

If you would like more information regarding this product, simply email us here.

The newly released in May 2020 UTi260K has been designed specifically for body temperature measurement, and as such offers superior-high-quality thermal imaging with real-time image transmission to a computer or screen for measuring and recording body temperatures.

Designed for use in public places or workplaces, the UTi260K offers exceptional value for money for it’s price/performance.

UTi260K Thermal Imager Features:

• 2.8″ TFT screen

• Infrared resolution: 256×192

• Frame frequency: 25Hz

• Range of temperature measurement: 30℃~45℃

• Accuracy: ±0.5℃

• Photographed function and SD card storage

• PC software analysis

• Point temperature measurement

• Real-time image transmission

• Visual camera (640×480)

• Type-C USB interface for lithium battery charging

• 1/4″ tripod mounting hole and tripod included

• CE Certified

• 12 Warranty.

• Tripod, 5 meter extension cable, Calibration Certificate

UNI-T UTi260K Datasheet

Categories: Fever Detection, Thermal Imager, UNI-T Tag: UNI-T

The UNI-T UTi260K Thermal Imager has been designed specifically for body temperature measurement. With a high-temperature alarm for body temperatures above 37.3 C it enables quick & easy screening of individuals for high temperatures.

High-temperature alarm

The customized high-temperature limit can be set to 37.3℃. For the temperature ≥37.3℃, indicator light and screen will indicate high-temperature alarm, which can effectively and quickly screen individuals with abnormal temperature.

Real-time image transmission

Set the USB mode to USB camera, connect the USB cable to the computer to mirror the upper computer software by real-time image transmission.

UTi260K Thermal Imager Specifications:

Model	UTi260k
Sensor	Un-cooled focal plane array
Temperature range	30℃~45℃
Resolution	0.1˚C
Accuracy	±0.5˚C @1m
Optimal measuring distance	1 meter
Temperature measurement response time	≤500ms (95% of reading)
Thermal resolution	49152 (256×192)
Pixel dimensions	12μm
Palettes	Iron red, rainbow, glowing white, glowing black, glowing red, lava, high-contrast rainbow
Bandwidth of infrared spectroscopy	8~14μm
Field of view (FOV)	56°(H) × 42°(V)
Instantaneous field of view (IFOV)	6mrad
Thermal imaging sensitivity	＜50mk
Frame rate	＜25Hz
Temperature display	Center temperature measurement and high-temperature tracking (default)
Image format	BMP
Image modes	Thermal camera, visible camera, image blending
Temperature measuring point	Besides central point, 3 temperature measuring points can be added
Visual camera	√
Resolution of visible camera	640×480
Display resolution	320×240
Image blending	0% (total visual camera), 25%, 50%, 75%, 100% (total thermal camera)
PC analysis software (PC)	√
Real-time image transmission	PC software image projection
Data communication	Type-C USB
Auto power off	Selectable (5min, 10min, 30min), 30min auto power off (default)
Battery life	≧6 hours
Charging time	4 hours
Real-time image transmission	PC software image projection
Image storage	Micro SD card
General Characteristics
Power	A single Li-ion 3.7V/5000mAh 26650 battery
Display	2.8″ TFT LCD
Product colour	Red & grey
Product size	236mm x 75.5mm x 86mm
Standard accessories	Manual, Type-C USB cable, 16GB TF card
Added MyMeter Accessories	Tripod, 5 meter USB Extension Cable, Calibration Certificate
