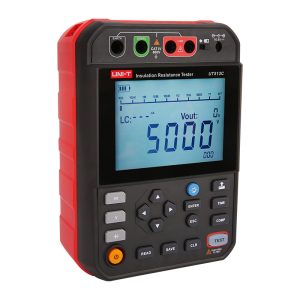

UNI-T UT513C 5kV Digital Insulation Resistance Tester – High Voltage, CE & UKCA Certified with Data Storage and PC Software Analysis

AUD $1,900.00 .( AUD $2,090.00 inc. GST )


For all your equipment calibration needs, visit our MyCalibration website.


Free Delivery on orders over $1000
Shipping time may vary for certain products*

Product Enquiry

If you would like more information regarding this product, simply email us here.

  • Drop files here or
    Accepted file types: jpg, gif, png, pdf, Max. file size: 1 MB, Max. files: 4.
    • This field is for validation purposes and should be left unchanged.

    The UNI-T UT513C 5kV Digital Insulation Resistance Tester is your ideal solution for reliable, safe, and precise power testing needs. Equipped with output voltages up to 5kV, this CE and UKCA certified tool is widely used in power, telecommunications, meteorology, and oil fields. It stands apart with its unique PI & DAR measurements, automatic leakage current display, and 10% range stepping voltage. With its 999 sets of data storage and PC software analysis via USB, it ensures thorough assessment of your results. Safety features like automatic discharge, high voltage output alarm, and an overvoltage category of CAT IV 600V make it a secure choice. Powered by a 14.8V, 5200mAh rechargeable lithium battery, this tester promises lasting performance. An indispensable device for electromechanical installation, maintenance, industrial and mining enterprises. Enhance your testing accuracy with the UT513C!

    PDF download UT513C Datasheet

    Introducing the UNI-T UT513C 5kV Digital Insulation Resistance Tester – an essential instrument for power, telecommunications, meteorology, computer rooms, and oil fields. Certified by CE and UKCA, this high-voltage tester offers output voltages up to an impressive 5kV. It stands out with features like PI & DAR measurement, automatic leakage current display, and a stepping voltage that’s 10% of the range.

    Equipped with a handy comparison function and timer measurement, the UT513C ensures accurate and efficient testing. It uniquely provides data storage up to 999 sets, allowing you to keep track of all your important readings. Plus, it includes PC software analysis via USB cable for thorough assessment of your results.

    One of the key features of the UNI-T UT513C 5kV Insulation Resistance Tester is its automatic discharge function. With a high voltage output alarm function, it guarantees safe usage at all times. The device is powered by a rechargeable lithium battery of 14.8V, 5200mAh, which ensures long-lasting performance. The Overvoltage category of CAT IV 600V further adds to its safety measures.

    In summary, the UNI-T UT513C 5kV Digital Insulation Resistance Tester is an indispensable tool for anyone involved in electromechanical installation and maintenance, or power supply departments of industrial and mining enterprises. Be sure to invest in this versatile and highly functional device for accurate, reliable, and safe testing.

    Features of UT513B/UT513C 5kV Insulation Resistance Testers

    • Capacitance test: 0.01uF~15.0uF
    • Certificates: CE, UKCA
    • Output voltage: Up to 5kV
    • PI & DAR measurement
    • Automatic leakage current display
    • Stepping voltage: 10% of the range
    • Comparison function
    • Timer measurement
    • Data storage: 999 sets
    • PC software analysis: via USB cable
    • Automatic discharge
    • High voltage output alarm function
    • Rechargeable lithium battery 14.8V, 5200mAh
    • Overvoltage category: CAT IV 600V
    Weight 2 kg

    Specifications

    Specifications of UT513B/UT513C 5kV Insulation Resistance Testers

    Rated voltage UT513B UT513C
    250V <0.25MΩ: reference only <0.25MΩ: reference only
    0.25MΩ~2.49GΩ: ±5%+5) 0.25MΩ~4.99GΩ: ±(5%+5)
    2.50GΩ~24.9GΩ: ±(10%+10) 5.00GΩ~49.9GΩ: ±(10%+10)
    25.0GΩ~100GΩ: reference only 50.0GΩ~250GΩ: reference only
    500V <0.50MΩ: reference only <0.50MΩ: reference only
    0.50MΩ~4.99GΩ: ±(5%+5) 0.50MΩ~4.99GΩ: ±(5%+5)
    5.00GΩ~49.9GΩ: ±(10%+10) 5.00GΩ~99.9GΩ: ±(10%+10)
    50.0GΩ~200GΩ: reference only 100GΩ~500GΩ: reference only
    1000V <1.00MΩ: reference only <1.00MΩ: reference only
    1.00MΩ~9.99GΩ: ±(5%+5) 1.00MΩ~9.99GΩ: ±(5%+5)
    10.0GΩ~99.9GΩ: ±(10%+10) 10.0GΩ~199GΩ: ±(10%+10)
    100GΩ~400GΩ: reference only 200GΩ~1.00TΩ: reference only
     2500V <2.50MΩ: reference only <2.50MΩ: reference only
    2.50MΩ~24.9GΩ: ±(5%+5) 2.50MΩ~24.9GΩ: ±(5%+5)
    25.0GΩ~249GΩ: ±(15%+10) 25.0GΩ~499GΩ: ±(15%+10)
    250GΩ~1.00TΩ: reference only 500GΩ~2.50TΩ: reference only
    5000V <5.00MΩ: reference only <5.00MΩ: reference only
    5.00MΩ~49.9GΩ: ±(5%+5) 5.00MΩ~49.9GΩ: ±(5%+5)
    50.0GΩ~499GΩ: ±(15%+20) 50.0GΩ~999GΩ: ±(15%+20)
    500GΩ~2.00TΩ: reference only 1.00TΩ~5.00TΩ: reference only
    Capacitance test NA 0.01uF~15.0uF
    Output voltage stepping voltage range Step by 10% of each range each time, and adjust the voltage range to 50%~120% of each range
    UT513B + UT513C:
    Display accuracy:±(10% read+10V)
    Output accuracy:+(0%~20%)
    250V 250V, 275V, 300V
    500V 250V, 300V, 350V, 400V, 450V, 500V, 550V, 600V
    1000V 500V, 600V, 700V, 800V, 900V, 1000V, 1100V, 1200V
    2500V 1250V, 1500V, 1750V, 2000V, 2250V, 2500V, 2750V, 3000V
    5000V 2500V, 3000V, 3500V, 4000V, 4500V, 5000V
    DC voltage 30~1000VDC: ±(3%+5)
    AC voltage 30~750VAC(50Hz/60Hz): ±(3%+5)
    Current 0.01nA~3.5mA 0.01nA~5.0mA
    Short-circuit current about 3.5mA about 5.0mA
    Main features
    PI test
    DAR test
    Timing measurement
    Resistance Comparison
    Voltage step
    Voltage monitoring (of external object) Monitor the voltage of measured object and the discharge state after testing. If voltage is higher than 36V, it is forbidden to test for protecting the tester and the operator
    Timer testing Record testing time automatically. Timing range: 0s~99m and 59s
    Data storage 999 set 999 set
    USB interface (data transmission)
    Bluetooth APP N/A
    Low Battery indication
    Auto power off Around 15 minutes Around 15 minutes
    Overvoltage category CAT Ⅳ 600V CAT Ⅳ 600V
    Certificates CE & UKCA CE & UKCA
    General Characteristics
    Power supply 14.8V,5200mAh lithium battery
    Product Color Black+Red
    Product Weight About 1800g (including battery)
    Product Dimension 238 x 166 x 90.5mm(L*W*D)
    Package quantity 1pcs
    Package Size 415×155×370mm(L*W*D)
    Accessories User manual 1pcs; Test lead(red, black, green, 1 for each) 3pcs; USB cable 1pcs; Lithium battery charger 1pcs; Lithium battery pack 1pcs; Adapting charging stand(optional); Carrying strap 1pcs;
