HIOKI CM3286-50 AC Clamp Power Meter – True RMS Power Quality Analyzer with Wireless Data Logging

The Challenge: Getting Accurate Power Readings Without Shutting Down Operations

When you’re troubleshooting power quality issues, verifying meter accuracy, or commissioning new electrical installations, you need reliable measurements without interrupting operations. Traditional multimeters can’t give you the complete picture of power consumption, harmonics, or phase relationships—and manually recording readings from multiple locations eats up valuable time. Whether you’re tracking down excessive neutral currents in commercial buildings, investigating high power bills for clients, or documenting pre and post-commissioning results for solar installations, incomplete data leads to guesswork and callbacks.

For Australian electrical professionals working across industrial facilities, commercial buildings, and renewable energy sites, the stakes are high. You need equipment that delivers accurate, multi-parameter measurements while keeping you safe in high-voltage environments—and ideally, lets you create professional reports without transcribing handwritten notes back at the workshop.

Your Complete Power Measurement Solution

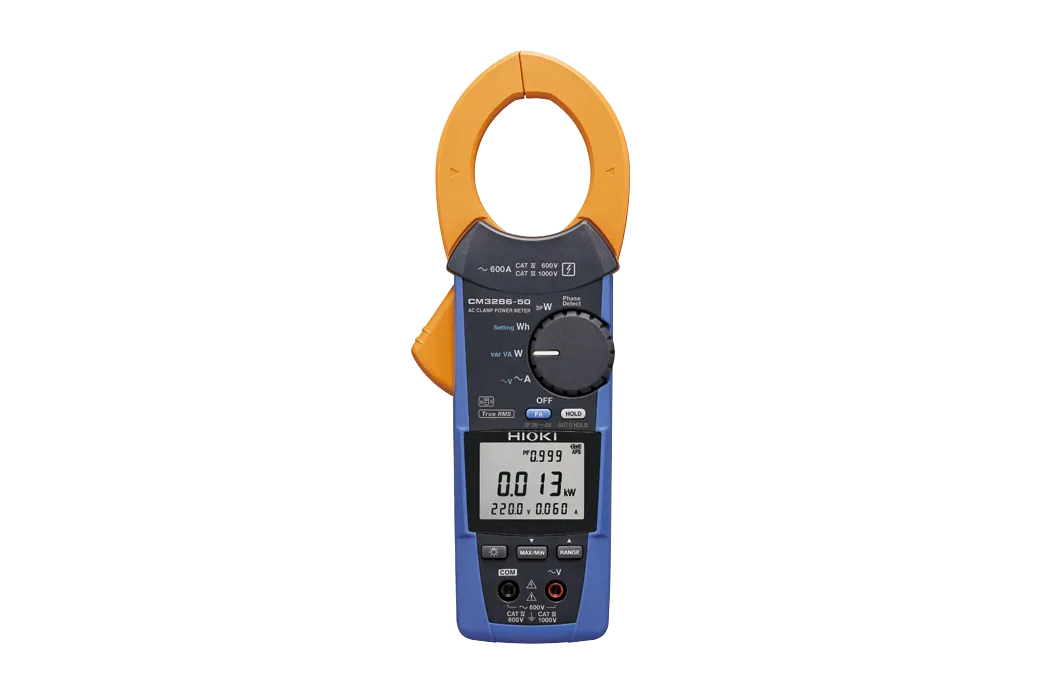

The HIOKI CM3286-50 transforms how you approach power quality work by putting comprehensive measurement capability in a single, non-contact tool. This advanced clamp power meter goes well beyond basic current readings to give you a complete electrical picture: voltage, current, active power, reactive power, apparent power, power factor, phase angle, and frequency—all displayed simultaneously on an easy-to-read screen.

What makes this instrument particularly valuable for Australian tradies is its exceptional sensitivity combined with high current capability. You can accurately measure loads as small as 5 watts at just 60mA (perfect for standby power investigations or LED lighting circuits), then immediately switch to measuring up to 360kW on heavy industrial feeders—all with True RMS accuracy that handles distorted waveforms from variable speed drives and electronic loads.

The 46mm jaw opening accommodates most Australian installation cables and busbars, while the CAT IV 600V and CAT III 1000V safety ratings provide the protection you need when working on distribution boards, switchboards, and commercial installations. For those working with even larger conductors, the optional 9290-10 clamp adapter extends your reach to 55mm diameter cables or 80×20mm busbars, with current capacity up to 1000A continuous (1500A for short periods).

Key Benefits That Make Your Job Easier

Measure What Matters—All At Once
Stop juggling multiple instruments. The CM3286-50’s four-parameter display shows your main measurement plus three additional parameters simultaneously, so you can see voltage sag, current draw, real power consumption, and power factor at a glance. When you’re balancing three-phase loads or hunting for neutral-to-earth voltage issues, this instant visibility saves time and prevents missed readings.

Three-Phase Power Made Simple
Working on balanced three-phase systems? The instrument provides estimated three-phase power calculations for 3-wire and 4-wire configurations, with clear on-screen wiring diagrams to guide your connections. It even detects phase sequence automatically—essential when commissioning motors or verifying correct phase rotation after switchboard work. For unbalanced systems, measure each phase separately and let the meter add them together for total consumption.

Document Everything Without the Paperwork Headache
Add the optional Z3210 Wireless Adapter and connect to the free GENNECT Cross app on your smartphone or tablet. Now you can capture measurements directly alongside site photos, annotate images with readings, add GPS location data, and generate professional PDF reports—all while still on site. No more lost notebooks, illegible handwriting, or spending hours back at the office typing up results. Excel users will appreciate the direct data export function for creating custom reports and analysis.

Catch Harmonics Before They Cause Problems
When paired with GENNECT Cross, the CM3286-50 performs harmonic analysis up to the 30th order—helping you identify power quality issues that cause motor overheating, nuisance breaker trips, or premature equipment failure. Whether you’re investigating flickering lights in an office building or diagnosing VFD-related issues on manufacturing equipment, understanding the harmonic content reveals problems that basic power measurements miss.

Built for Real-World Electrical Work
The Auto Hold function beeps and freezes the display when readings stabilize—invaluable when you’re working in tight spaces where you can’t see the screen clearly, or reaching into switchboards where safety means keeping your eyes on what you’re doing. MAX/MIN/AVG value recording helps you capture fluctuating loads or transient conditions without staring at the display. And when you accidentally probe a live voltage during a continuity check, the meter immediately alerts you with a red backlight and audible alarm—potentially preventing serious injury.

Electricity Theft Detection for Utility and Facility Managers
This feature set makes the CM3286-50 particularly useful for utility companies, facility managers, and energy auditors. Compare actual current draw against meter readings to detect tampering, or measure current on the supply side of suspected illegal connections. The instrument can even generate GPS-tagged reports specifically designed for documenting electricity theft evidence.

APPLICATIONS & USE CASES

Commercial Electrical Contractors
Commissioning new installations and verifying power distribution balance across three-phase systems. Measuring actual power consumption for load calculations before adding circuits. Documenting power quality for sensitive IT equipment installations or medical facilities.

Industrial Maintenance Teams
Diagnosing motor problems by checking voltage balance, power factor, and harmonic content on VFD-driven equipment. Identifying energy waste from poor power factor or unbalanced loads. Verifying correct phase sequence before energizing new machinery.

Solar and Renewable Energy Installers
Measuring baseline power consumption before system sizing. Verifying inverter output power and power factor. Checking grid connection quality and harmonic injection levels. Documenting commissioning data for Clean Energy Council compliance.

Energy Auditors and Consultants
Conducting sub-metering studies to identify high consumption areas. Measuring standby power on equipment. Creating detailed power profiles with wireless data logging. Comparing actual consumption against utility meter readings.

Facility and Building Managers
Investigating high power bills by measuring actual consumption on major loads. Monitoring power quality in buildings with sensitive equipment. Detecting electricity theft or meter bypass in multi-tenant properties.

HVAC and Refrigeration Technicians
Checking compressor current draw and power consumption during startup and running conditions. Verifying correct voltage supply to equipment. Diagnosing electrical issues affecting refrigeration performance.

WHY CHOOSE US FOR YOUR HIOKI CM3286-50

When you purchase from us, you’re not just getting a quality instrument—you’re partnering with Australian test equipment specialists who understand the electrical trade. We provide local technical support from people who actually use these tools on sites like yours, not just read spec sheets. Our team can help you select the right accessories for your specific applications, from extended test leads for solar arrays to the wireless adapter for comprehensive reporting.

Every HIOKI instrument we supply comes with the manufacturer’s warranty, and we stock commonly needed accessories and test leads for fast dispatch. Whether you need guidance on three-phase measurement techniques, GENNECT Cross app setup, or interpreting harmonic analysis results, our technical team speaks your language—because we’ve been there troubleshooting the same issues you face every day.

Need calibration services? We can arrange NATA-traceable calibration certification to maintain compliance with AS/NZS standards. Want to see the meter in action before purchasing? Contact us to discuss a demonstration or to compare specifications with other clamp power meters in our range.
