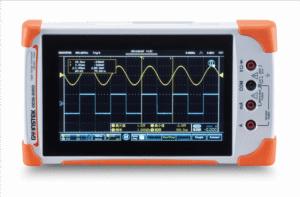

GW Instek GDS-210 100 MHz, 2 Channel, 1GSa/s Digital Storage Oscilloscope

AUD $1,275.00 • ( AUD $1,402.50 inc. GST )

Free Delivery on orders over $500
Shipping time may vary for certain products*

  • Fast Delivery*
  • Technical Support
  • Product Training
  • Calibration Services*
  • Lowest Price Guaranteed
Click here to Make an Enquiry

Product Enquiry

If you would like more information regarding this product, simply email us here.
  • Drop files here or
    Accepted file types: jpg, gif, png, pdf, Max. file size: 1 MB, Max. files: 4.
    • This field is for validation purposes and should be left unchanged.

    instek_logo

    GDS-210 Product Features:

    • This model has a bandwidth of 100 MHz, Two Input Channels
    • Maximum 1 M Memory Depth Per Channel
    • 1 GSa/s Maximum Sample Rate
    • 7” 800 x 480 Full Touch Panel Capacitive LCD Multi-Point Control, Landscape and Portrait Display
    • Built-In 5,000 Counts DMM
    • 30,000 Consecutive Waveform Records Logging Function, Replay Measurement Results Any Time
    • Built-In Engineering Calculator, SMD Resistance Coding, Color Coding Info, and Attenuator Calculation Application Software
    • Compact and portable for easy transportation
    • Differential Probe to Achieve Isolation Effect (Optional)
    Authorized Australian Distributor
     PDF Logo    Datasheet
    PDF Logo    User Manual



    SKU: GW INSTEK GDS-210 Categories: , , Tags: ,

    The GW INSTEK GDS-210 handheld digital storage oscilloscope is a compact DSO that is ideal for field service. The GDS-210 introduces a 7” capacitive full touch panel LCD which can be positioned in portrait and landscape display. The recharging-battery design makes the series easy to operate for field operations. The GDS-210 is suited for applications in laboratories, R&D, large electric system tests, power product tests, motor tests, solar power battery inspection and repair, and maintenance personnel who are always on field assignments.

    The GDS-210, with two analog signal input channels, has a bandwidth of 100 MHz and the maximum sample rate per channel is 1 GSa/s with a memory depth of 1 Mpts. The GDS210 has a 5,000 count DMM which can simultaneously measure and monitor A.C. and D.C. voltage, and current. Trend plots over long periods of time can also be drawn which allows engineers to effectively monitor standard electric parameters while measuring basic circuit signals.

    The optional 40 MHz dual-channel differential probe can achieve equivalent isolation results for measurement systems under strict power and grounding environments. Users can also easily apply the oscilloscope as a very convenient USB storage equipment to store waveform images and raw data. Additionally, the oscilloscope can be connected with smart phones to transmit the recorded data.

    Engineers are aware of GW Instek oscilloscopes’ thoughtful designs through diversified application software. Advanced DMM functions and GO/NOGO template editing facilitate users in conducting advanced diversified measurement functions. Engineering calculator, attenuation calculation analysis, and resistance indication analysis help users apply auxiliary functions that demonstrate the concept of powerful and comprehensive technological integration.

    The GDS 210 oscilloscope adopts a full touch panel capacitive LCD. In the era of smart phones, GW Instek can also usher users into the full touch panel measurement era. With only one finger, users not only can move waveform up and down but also the trigger line position. Two-point touch panel is also applied. Engineers can use two fingers to adjust vertical voltage levels and to enlarge or narrow time division scales. The brand new touch panel and swift response renews your measurement concept. Additionally, one finger drag menu selection allows users to follow their intuition to locate required measurement functions, and to save and retrieve diagrams and data anytime anywhere.

    Engineers have different requirements under different environments. When field test and measurement is necessary engineers often need portrait displays to conduct measurement due to environment limitation and the emphasis of integrated functions. Waveform measurement and DMM can be simultaneously operated. When indoor test and measurement is required engineers often need stable measurements and large screen which is answered by landscape display. 7” full measurement screen can also be applied as a stable desk-top oscilloscope.

    Traditional oscilloscopes can not meet users’ requirements of conducting integrated system circuit measurement. One extra DMM is often required to work with traditional oscilloscopes to handle enormous test requirements. GDS-210 oscilloscope integrates the functions of oscilloscopes and DMMs to conduct simultaneous measurements. In the analysis of system circuit waveforms, GDS-210 can also use DMM to measure basic voltage and current of the peripheral components that provides users with very powerful test integration.

    Once engineers finished waveform measurement and report compilation, the GDS-210 oscilloscope can be used as USB storage component to retrieve and store files. Briefing speaking, users can use USB connecting cables to connect GDS 210 with a PC or handheld device to retrieve any required files for follow-up actions. Today, the smart phone is ubiquitous, so the screenshots and measurement results of GDS-210 can be transmitted via smart phone saving a lot of trouble.

     Model  GDS-307 GDS-310 GDS-320 GDS-207
    GDS-210
    GDS-220
     VERTICAL
     Channels 2 (BNC-Shield)
     Input Impedance 1MΩ±2%, 16.5pf approx.
    Maximum Input
     CAT II 300VRMS
    Input Coupling  AC, DC, GND
     Bandwidth  DC~70MHz (-3dB) DC~100MHz (-3dB)  DC~200MHz (-3dB) DC~70MHz (-3dB) DC~100MHz (-3dB)  DC~200MHz (-3dB)
     Rise time  <5ns  <3.5ns <1.75ns <5ns <3.5ns <1.75ns
     Sensitivity  2mV/div~10V/div (1-2-5 increments)
     Accuracy  ±(3% x Readout + 0.1 div + 1mV)
     Bandwidth Limit  20MHz(-3dB)
     Polarity  Normal, Invert
    Offset Position Range  2mV/div~50mV/div : ±0.4V
    100mV/div~500mV/div : ±4V
    1V/div~5V/div : ±40V
    10V/div : ±300V
     SIGNAL ACQUISITION
     Realtime sample rate 1GSa/s
     Memory depth 5M points per ch 1M points per ch
     Acquisition mode  Average: 2~256 waveforms
    Peak detect: 10ns
    sin(x)/x or ET
     Replay wfms. 30,000 wfms.
     TRIGGER
     Source Ch1 or Ch2
     Trigger mode Auto, Normal, Single, Force
    Trigger type Edge, Pulse Width, Video, Alternate
     Trigger Holdoff 10ns ~ 10s
    Coupling AC, DC, LFR, HFR, NR
     Sensitivity DC~25MHz: approx. 0.5div or 5mV
    25MHz~ 70/100/200MHz: approx. 1.5div or 15mV
     HORIZONTAL
     Range  5ns~100s/Div (1-2-5 increments)
     Roll 100ms/div ~ 100s/div
    Pre-trigger  10 div max.
     Post_trigger 1,000 div max(depend on time base)
     Accuracy ±20ppm over any > 1ms time interval
    XY MODE
    Phase Shift  ±3° at 100KHz
    CURSOR AND MEASUREMENT
     Cursors  Voltage difference between cursors(△V), Time difference between cursors(△T), frequency measure(1/△T)
     Auto-measurement 36 sets.
     Auto-counter 6 digits. Range: 2Hz to rated bandwidth
    Autoset Available
     TEMPERATURE MEASUREMENT Available Non-Available
    MISCELLANEOUS
    Multi-Language Menu Available
     On-line Help Available
     Time and Clock Available
     BATTERY
    Battery power Li-polymer 6100mA/hr, 7.4V (Built-in)
     Charge time  2.0 hour (75%)
     Operation time  4.1 hour, depending on operating condition.
     PROBE COMPENSATION
     2V, 1KHz, 50% Duty cycle
     INTERFACE
     USB  USB Device (Isolation)
     Internal Flash Disk  120MB
    DISPLAY
     Type  7 inch
     Display resolution 480 x 800 pixels
     Display direction  Landscape & Portrait
     Backlight control  Manual adjustable, ECO mode
     Touch panel  Capacitive
     POWER ADAPTOR
     Line Voltage  AC 100V~240V, 48~63Hz, Power Consumption 40W
    DC Output  DC Output: 12V/3A, Double Shield
     OPTION
     Differential Probe  Dual-channel, 40MHz, CAT II 600V
     DIMENSIONS & WEIGHT
    1.5Kg,  HxWxD(mm)  240mm x 136mm x60 mm
     DMM (Digital Multi-Meter)
     DIGIT LEVEL  50,000 counts  5,000 counts
     CAT II 600VRMS, CAT III 300VRMS
    DC VOLTAGE
     Range 50mV, 500mV, 5V, 50V, 500V,  1000V  6 ranges
     Accuracy

    GDS-307/310/320: 50mV, 500mV, 5V, 50V, 500V ±(0.05% + 5 digits), 1000V ±(0.1% + 5 digits)

    GDS-207/210/220: 50mV, 500mV, 5V, 50V, 500V, 1000V ±(0.1% + 5 digits)

    Input Impedance 10MΩ
     DC CURRENT
     Range  50mA, 500mA,  10A   3 ranges
     Accuracy GDS-307/310/320: 50mA – 500mA, 2 Ranges, ±(0.1% + 5 digits), 10A ±(0.5% + 1 digits)
    GDS-207/210/220: 50mA – 500mA, 10A 3 Ranges, ±(0.5% + 1 digits)
     AC VOLTAGE
     Range  50mV, 500mV, 5V, 50V, 700V  5 ranges
     Accuracy  50mV, 500mV, 5V, 50V, 700V ±(1.5% + 15 digits) at 50Hz-1kHz
     AC CURRENT
     Range 50mA, 500mA, 10A 3 ranges
     Accuracy  50mA, 500mA, ±(1.5% + 15 digits) at 50Hz-1kHz
    10A ±(3% + 15 digits) at 50Hz-1kHz* Measure range: >10mA
     RESISTANCE
     Range 500Ω, 5kΩ, 50kΩ, 500kΩ, 5MΩ, 5 range
     Accuracy 500Ω, 5kΩ, 50kΩ, 500kΩ ±(0.3% + 3 digits)
    5MΩ ±(0.5% + 5 digits)* Measure range: 50Ω to 5MΩ
     DIODE TEST Maximum forward voltage 1.5V, Open voltage 2.8V
     CONTINUITY BEEP  < 15 Ω
     FUNCTIONS  Auto Range, Max, Min, Hold, Trend plotGW INSTEK GDS-210
    Include Accessories:
    • 1 – Quick Start Guide
    • 1 – User Manual
    • 1 – Power Cord
    • 1 – 100 MHz Probe Suitable for GDS-307/207, GDS-310/210
    • 2 – Multimeter Test Leads
    • 1 – Soft Carrying Case
    • 1 – Soft Carrying Bag
    • 1 – AC-DC Adaptor
    • 1 – Wrist Strap
    Weight 2 kg
